Test 3: Intermittent

WARNING:

When performing any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces.

NOTE:

PIDs selected from the PID/DATA MONITOR table will display commanded values only. Digital multimeter measurements will display actual values.

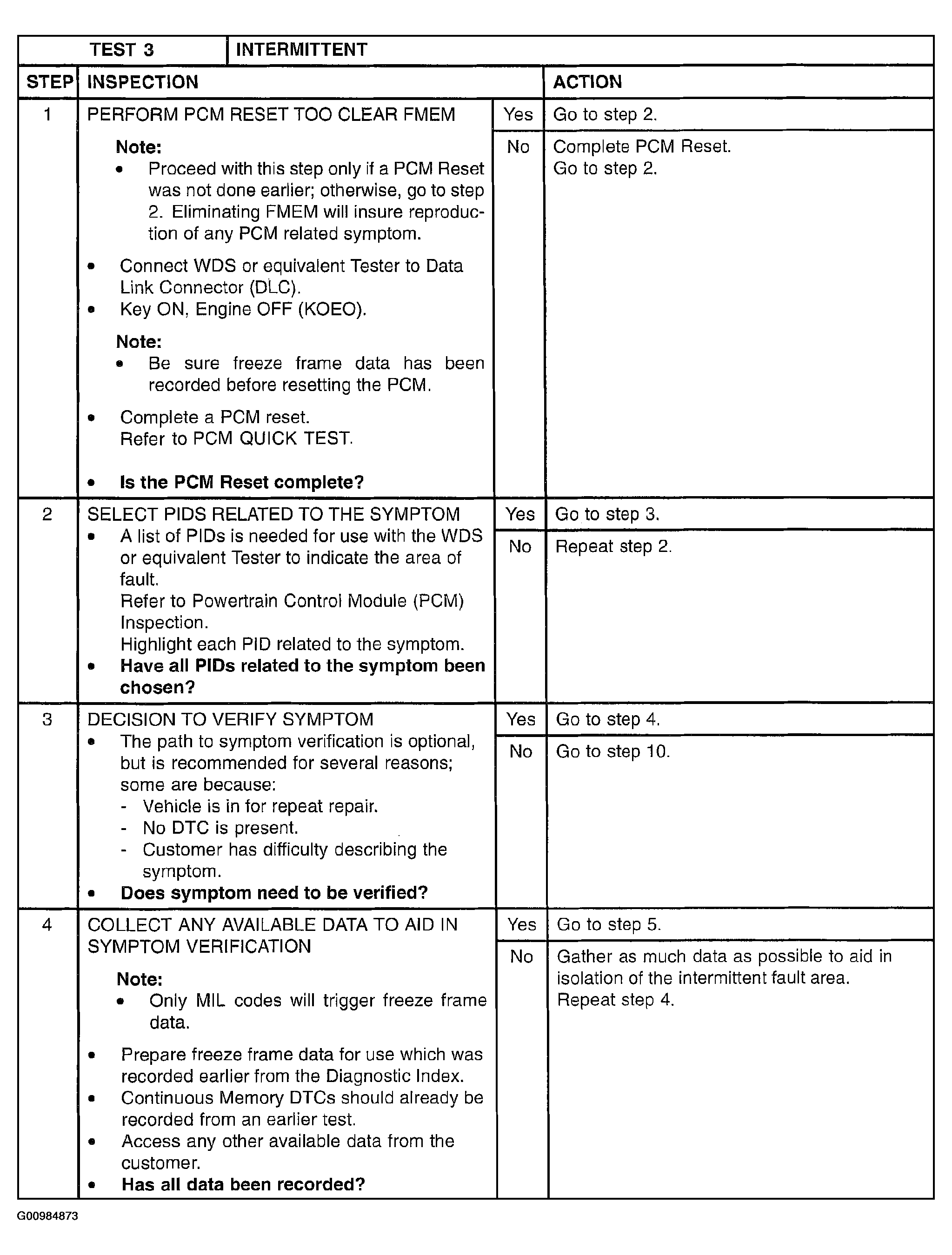

Fig 1: Test 3 : Intermittent: Inspection (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

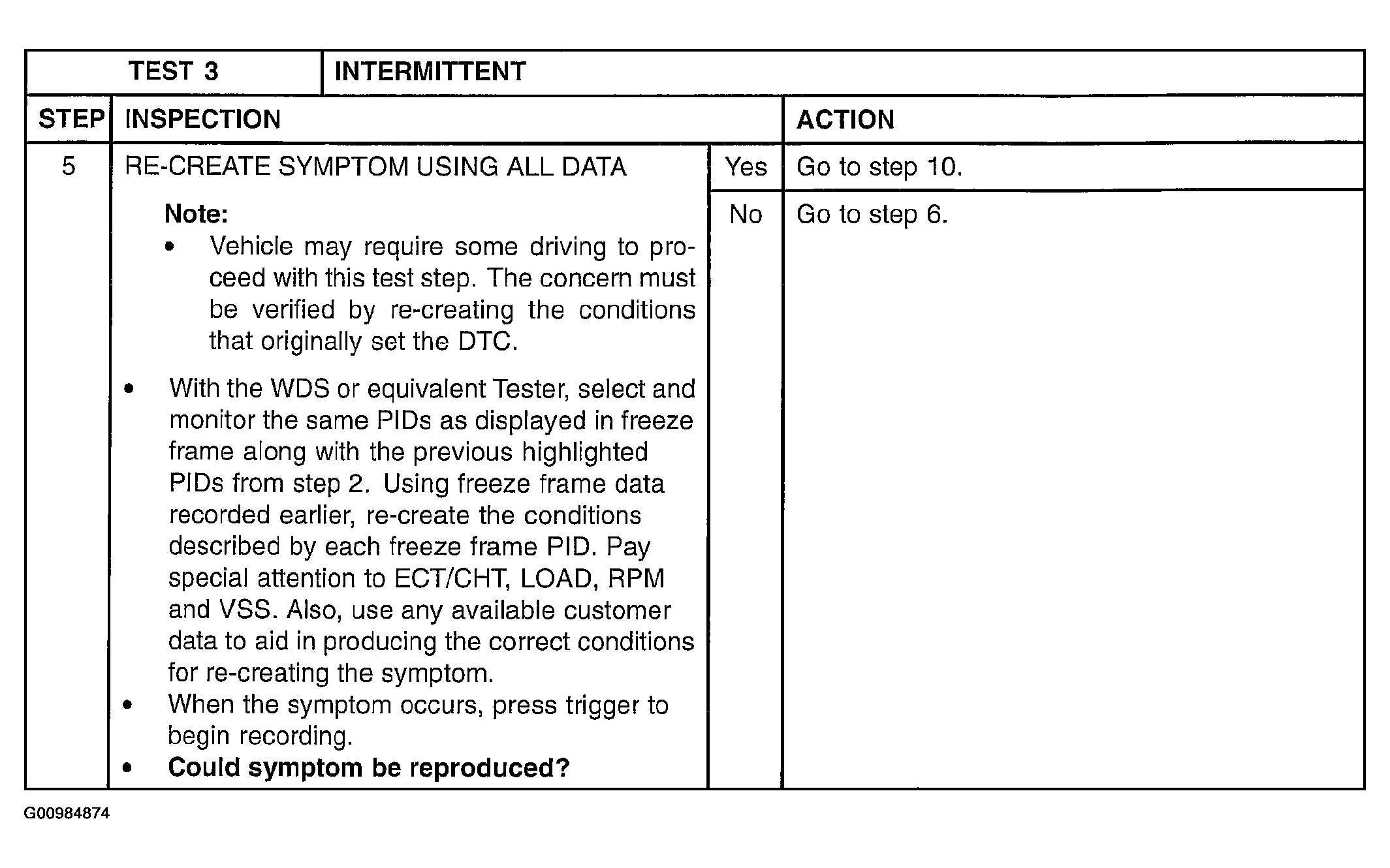

Fig 2: Test 3 : Intermittent: Inspection (Step 5)

Courtesy of MAZDA MOTORS CORP.

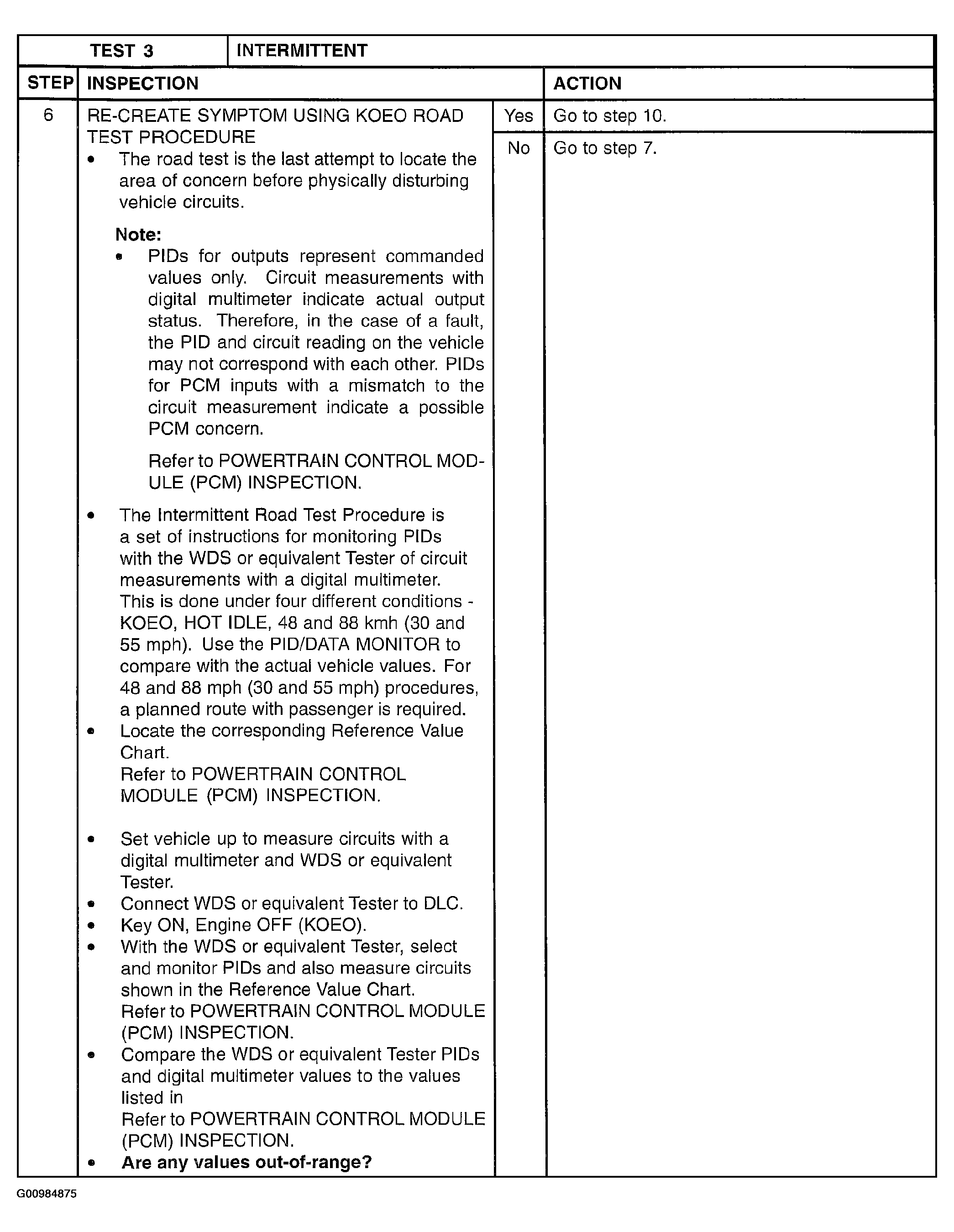

Fig 3: Test 3 : Intermittent: Inspection (Step 6)

Courtesy of MAZDA MOTORS CORP.

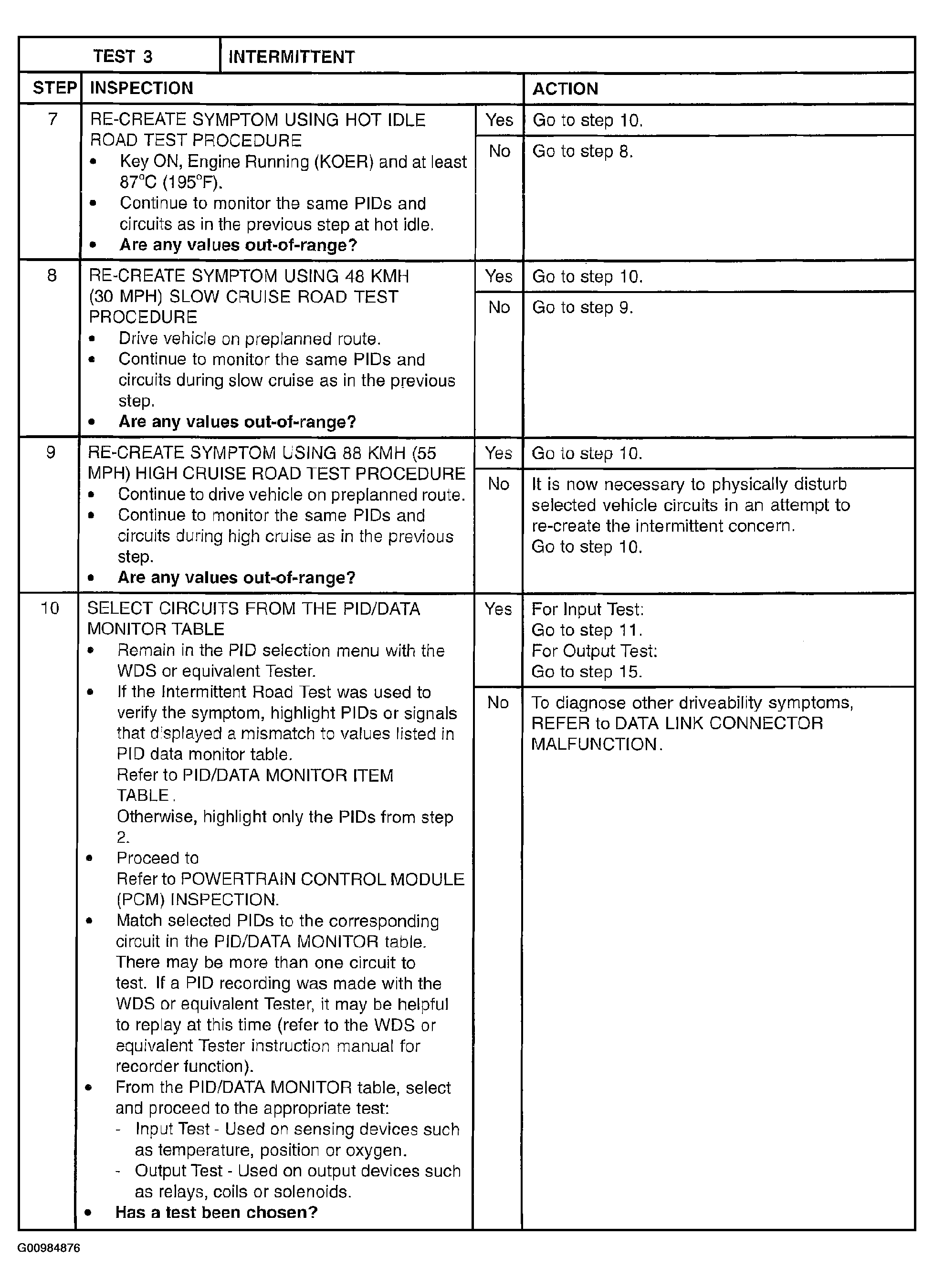

Fig 4: Test 3 : Intermittent: Inspection (Steps 7-10)

Courtesy of MAZDA MOTORS CORP.

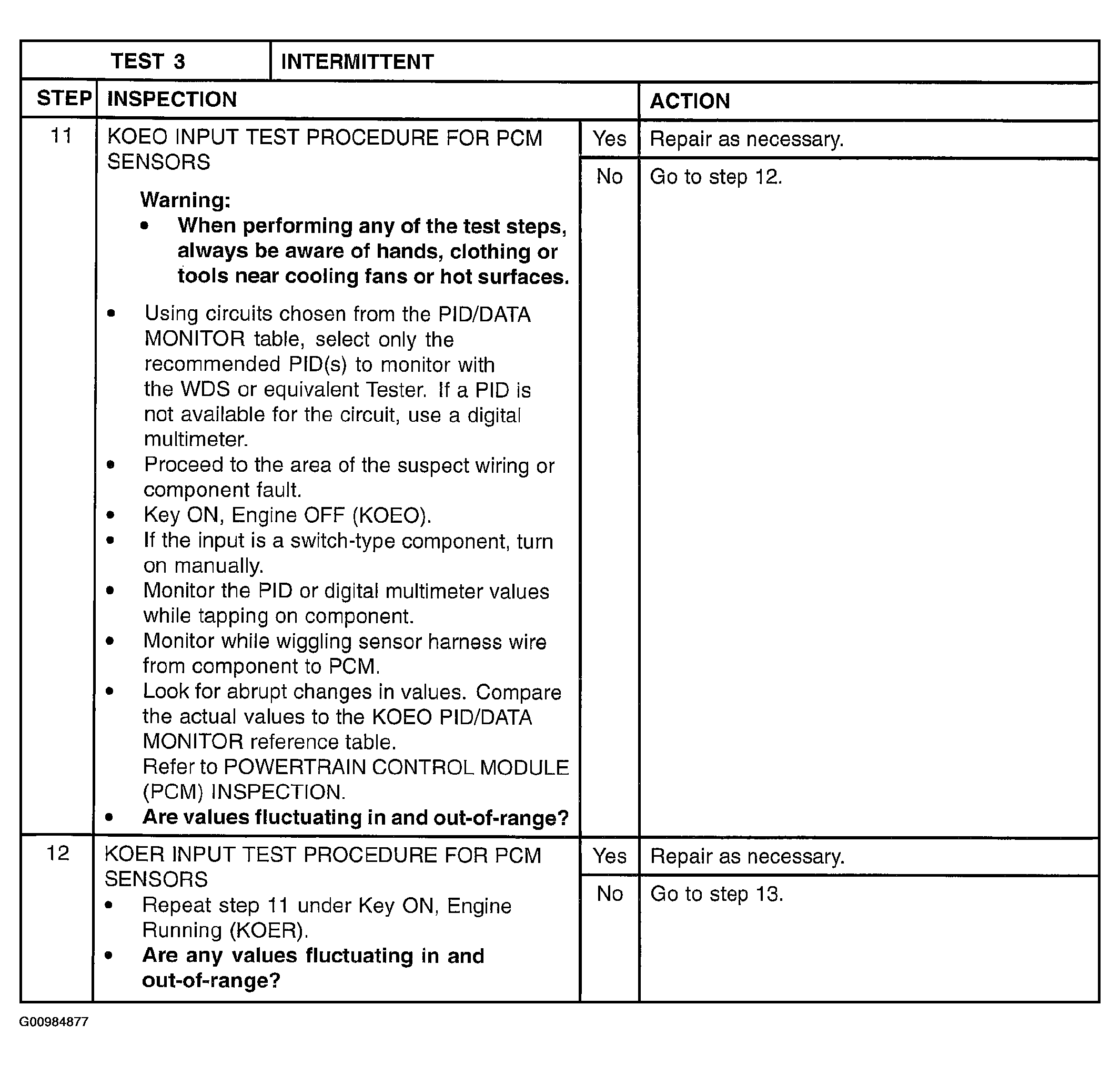

Fig 5: Test 3 : Intermittent: Inspection (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.

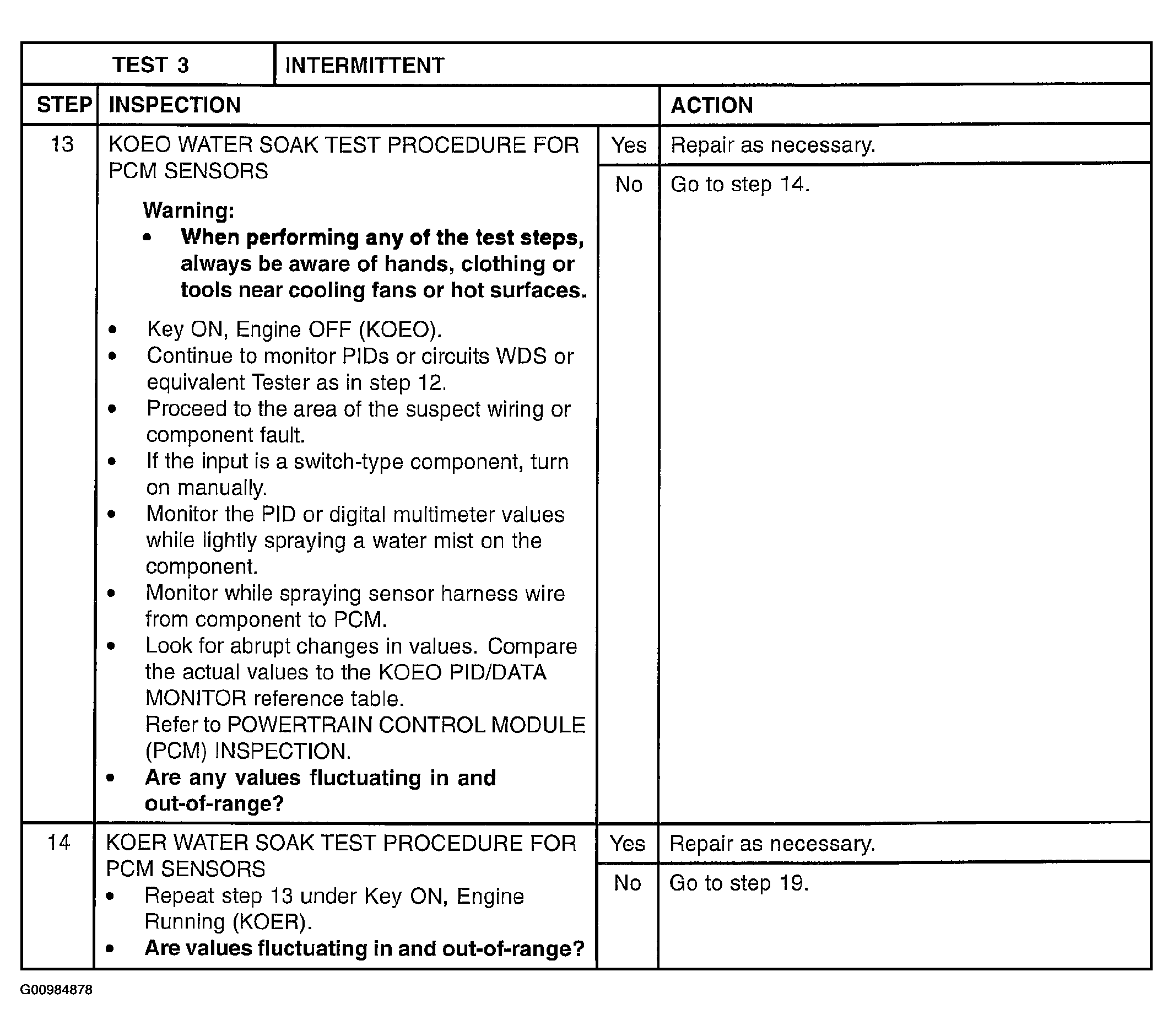

Fig 6: Test 3 : Intermittent: Inspection (Steps 13-14)

Courtesy of MAZDA MOTORS CORP.

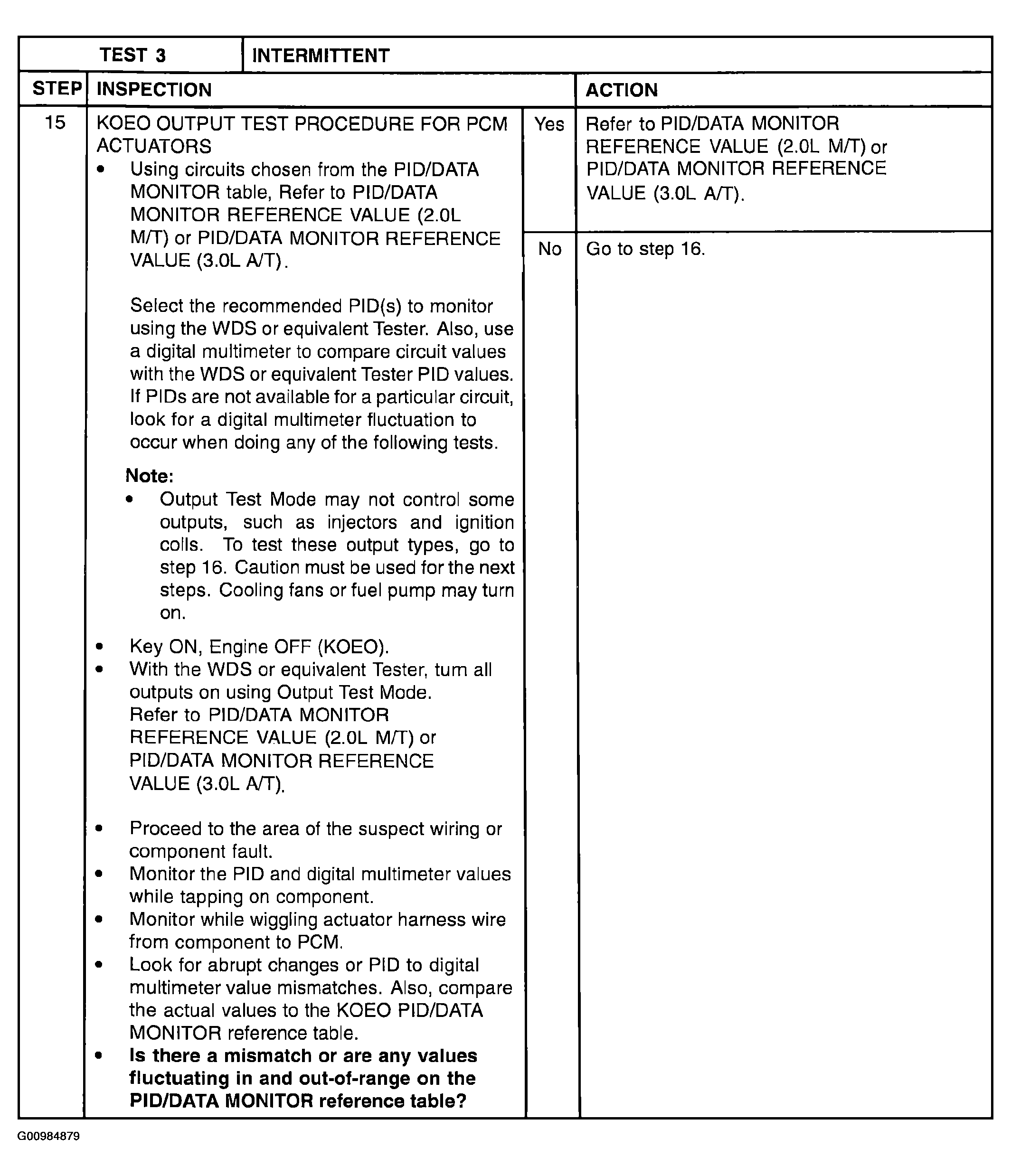

Fig 7: Test 3 : Intermittent: Inspection (Step 15)

Courtesy of MAZDA MOTORS CORP.

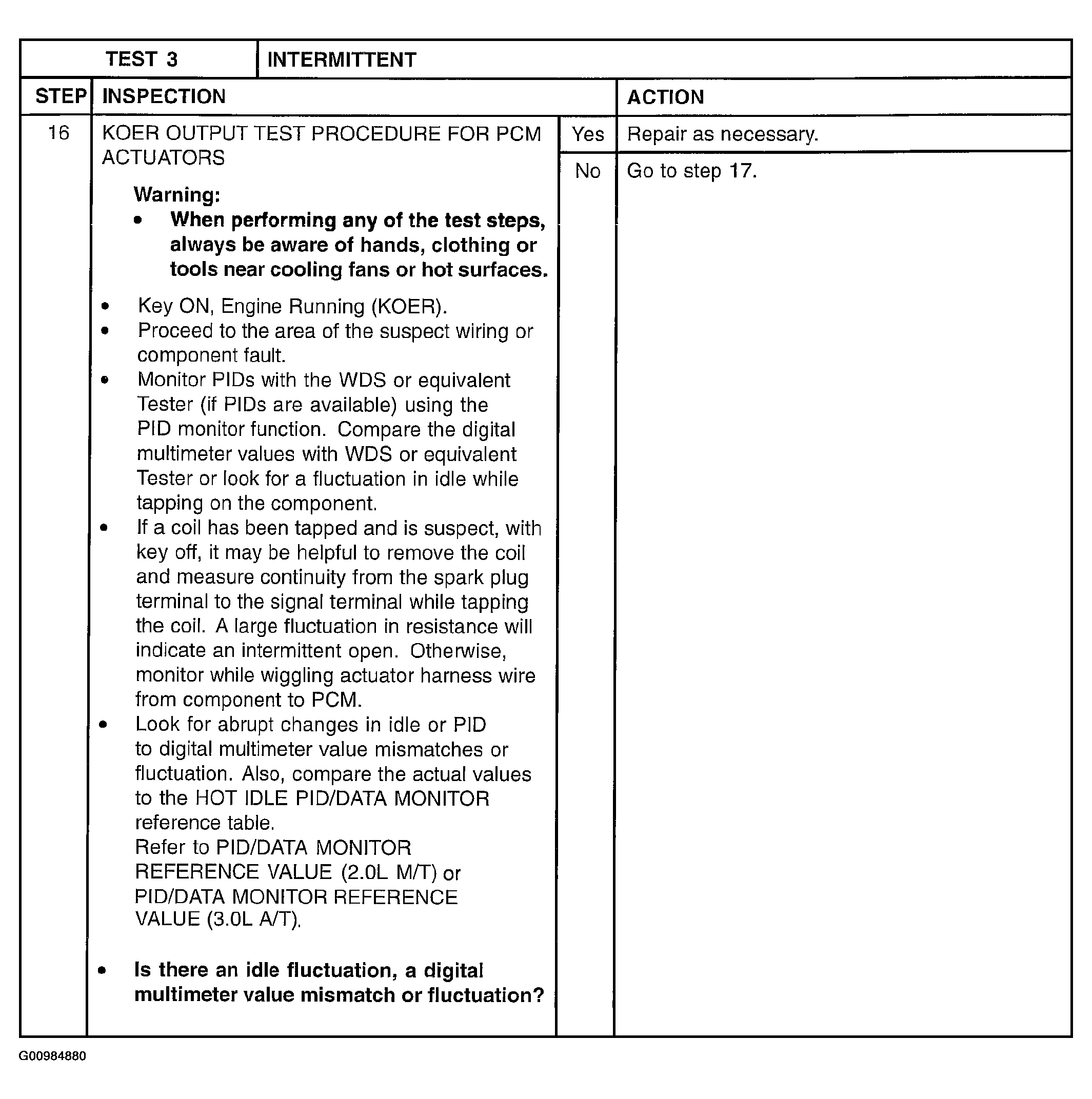

Fig 8: Test 3 : Intermittent: Inspection (Step 16)

Courtesy of MAZDA MOTORS CORP.

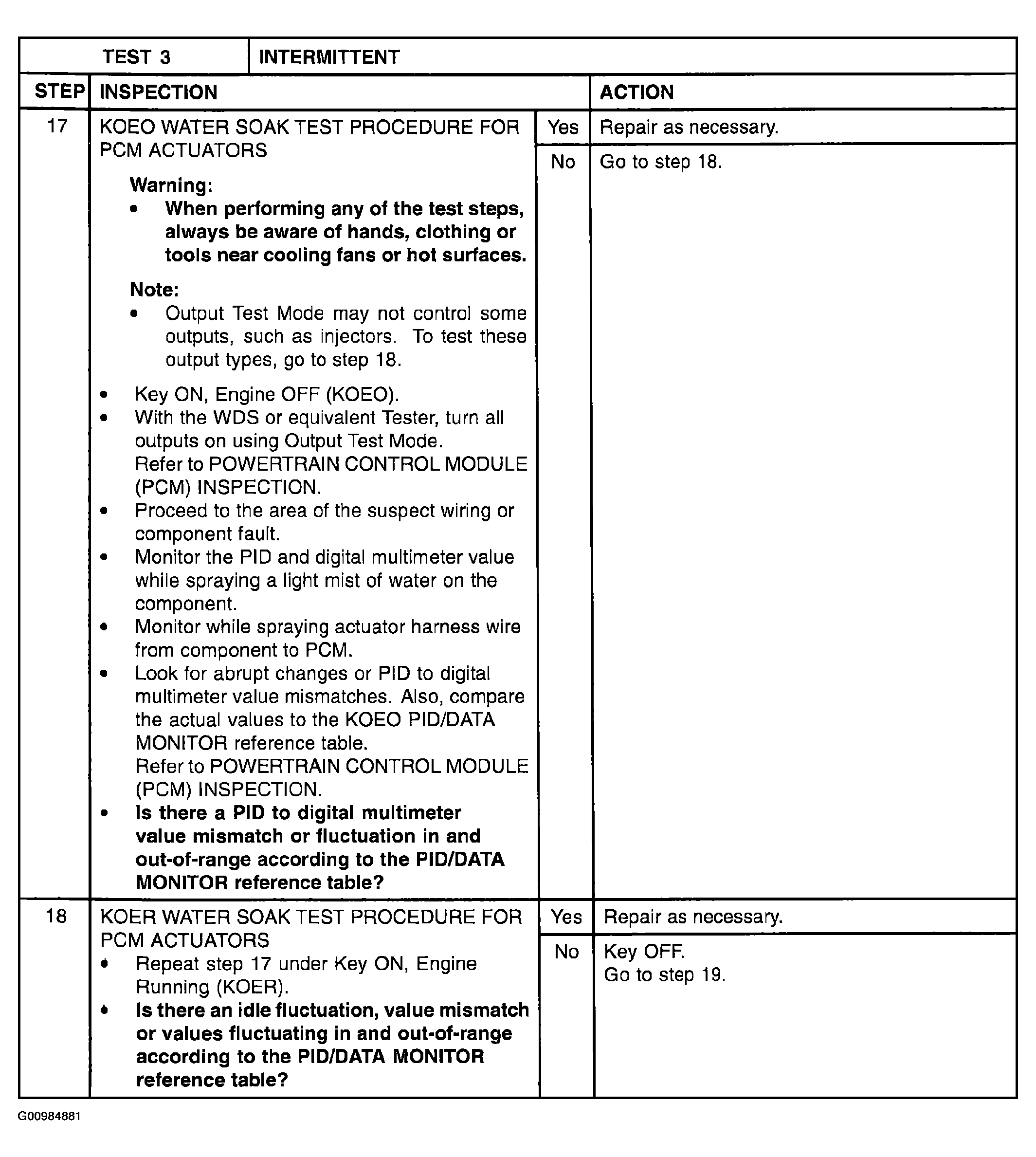

Fig 9: Test 3 : Intermittent: Inspection (Steps 17-18)

Courtesy of MAZDA MOTORS CORP.

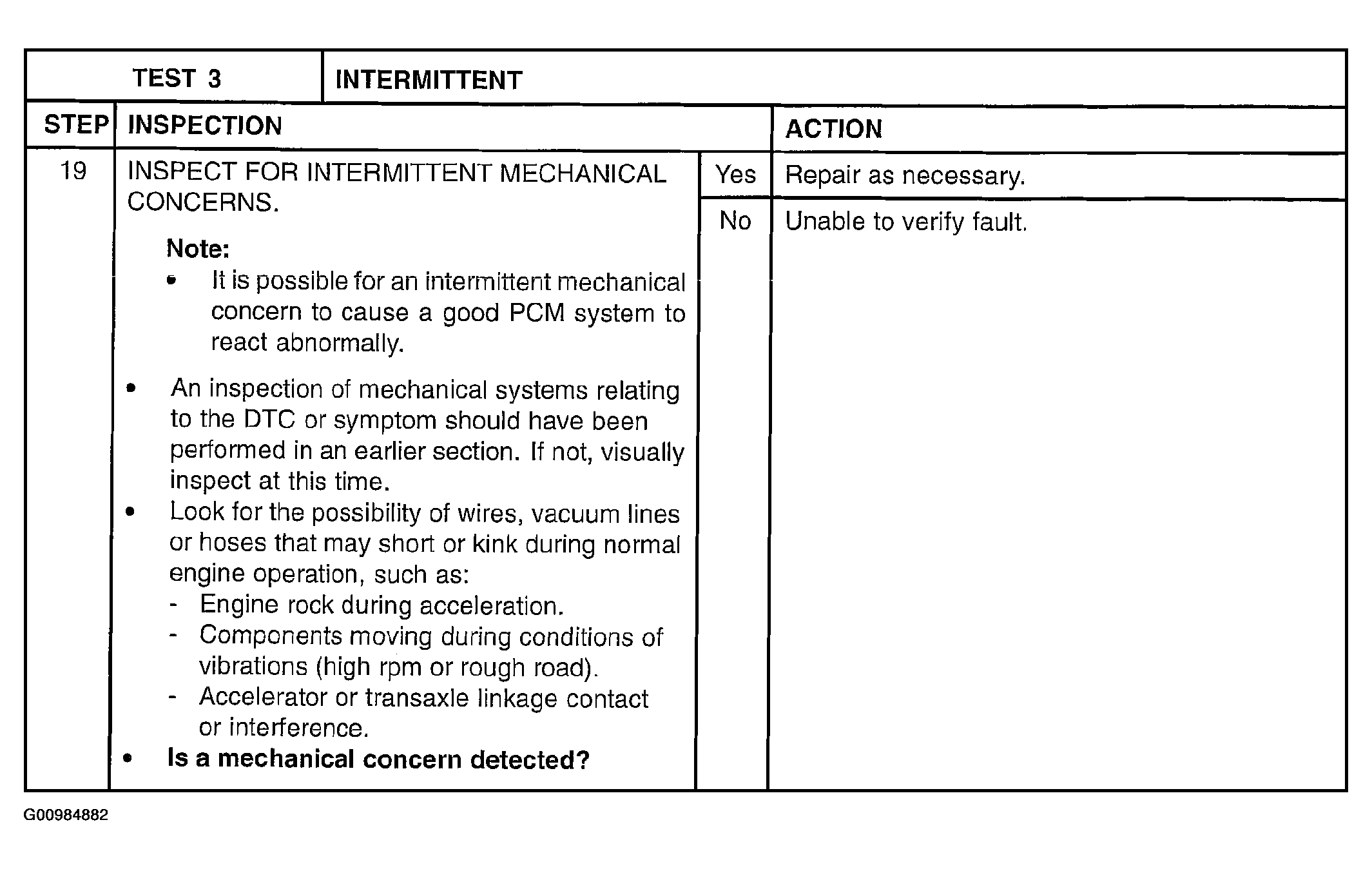

Fig 10: Test 3 : Intermittent: Inspection (Step 19)

Courtesy of MAZDA MOTORS CORP.
