Test 4: Fuel Delivery System

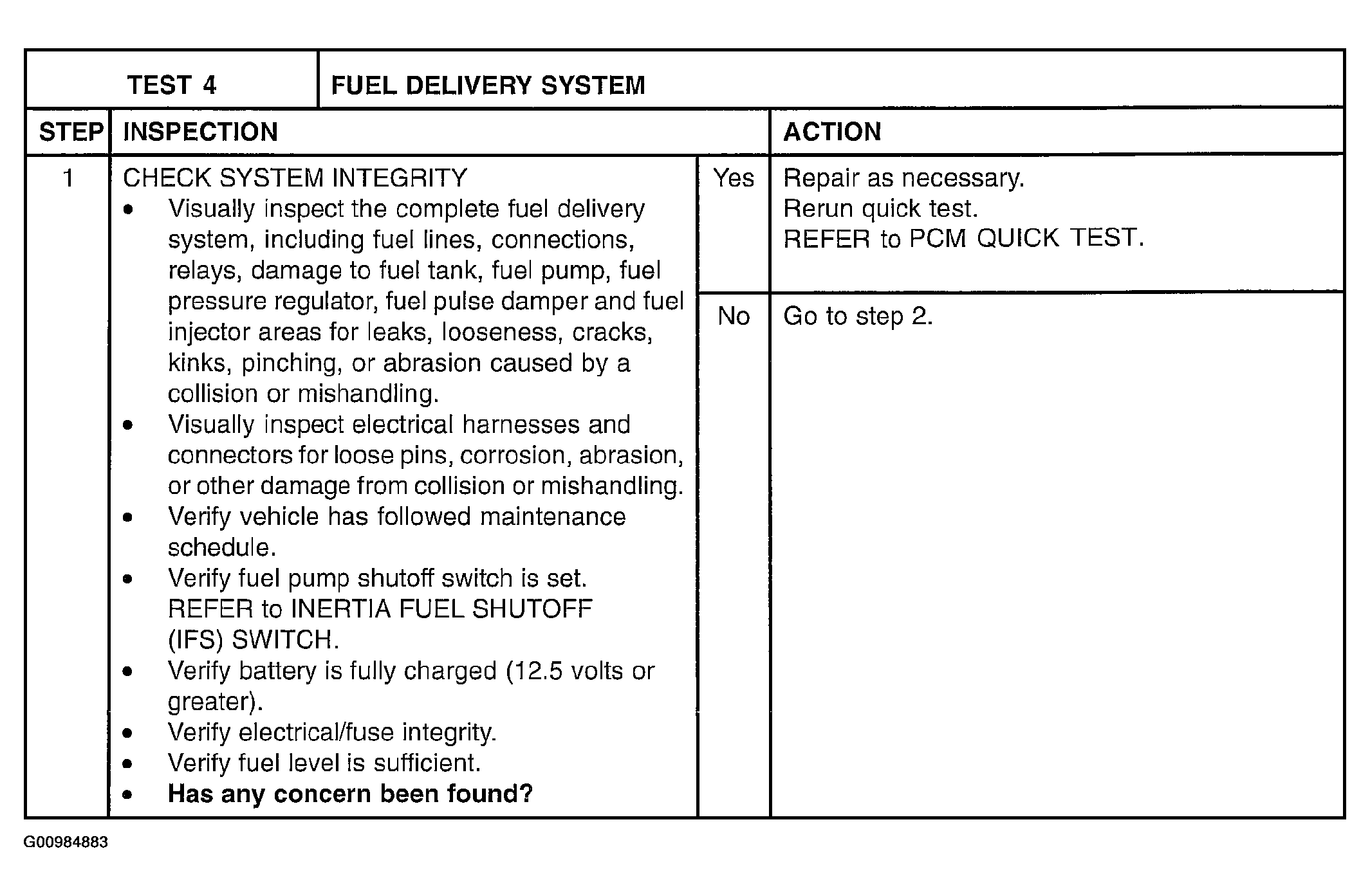

Fig 1: Test 4: Fuel Delivery System: Inspection (Step 1)
Courtesy of MAZDA MOTORS CORP.

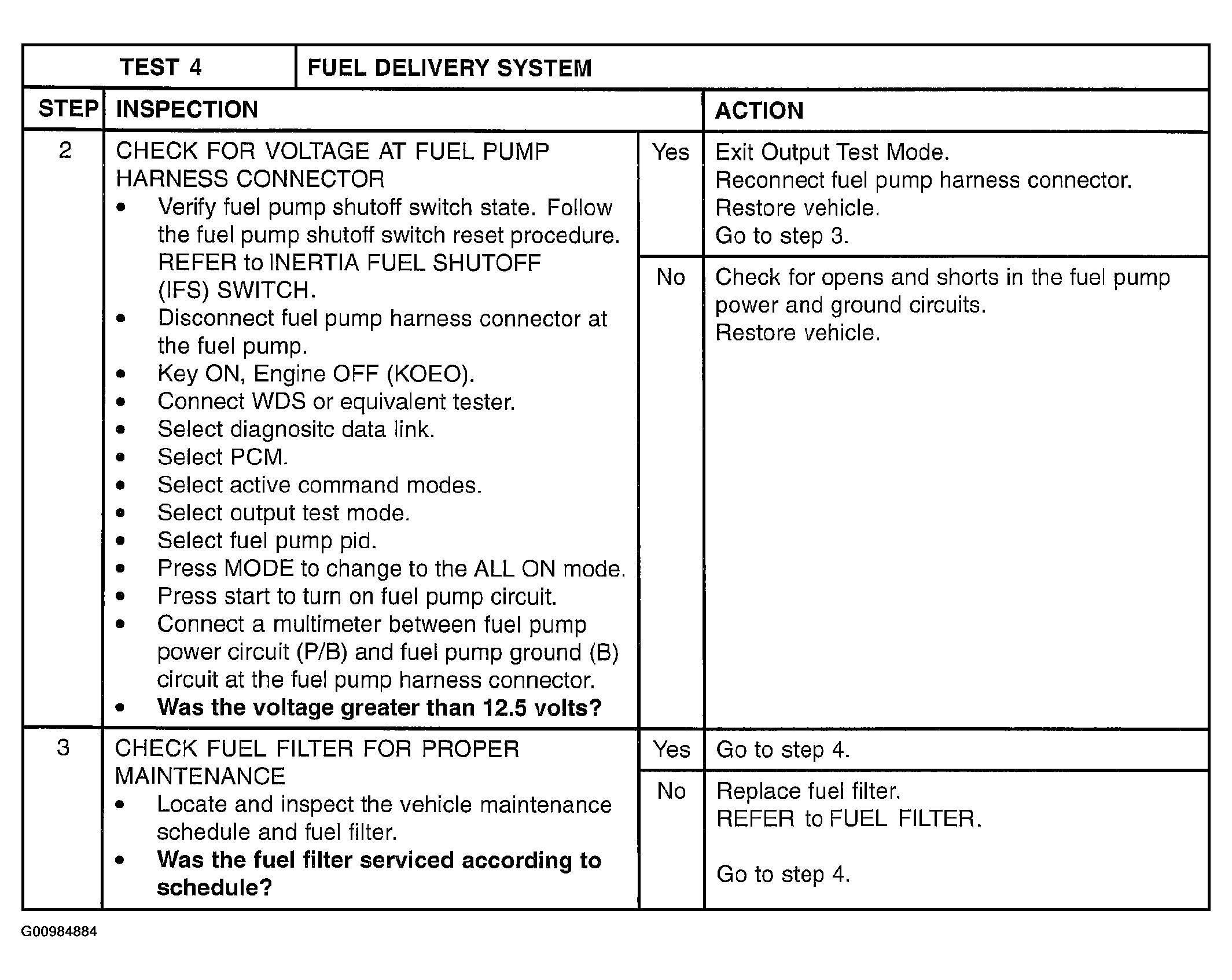

Fig 2: Test 4: Fuel Delivery System: Inspection (Steps 2-3)
Courtesy of MAZDA MOTORS CORP.

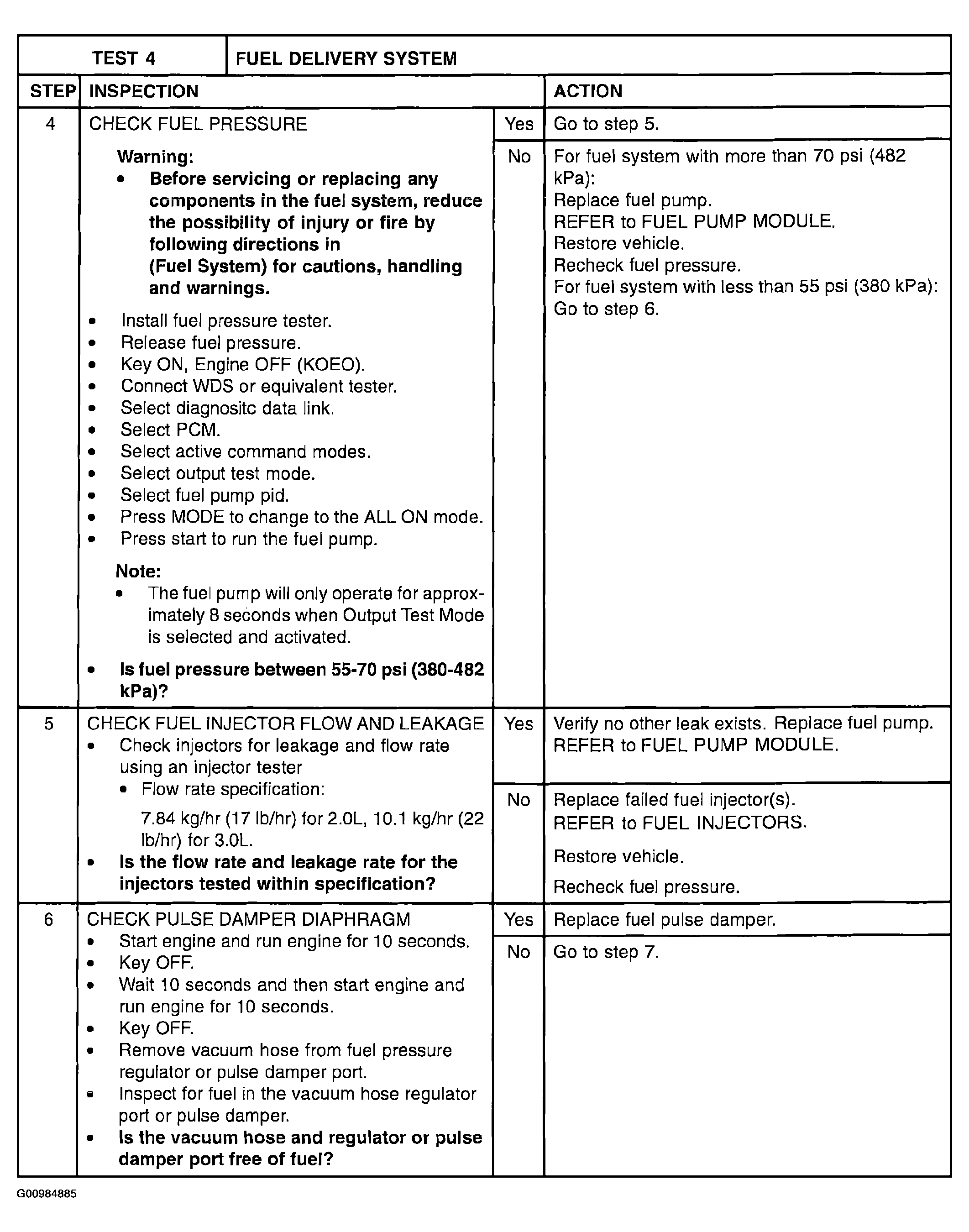

Fig 3: Test 4: Fuel Delivery System: Inspection (Steps 4-6)
Courtesy of MAZDA MOTORS CORP.

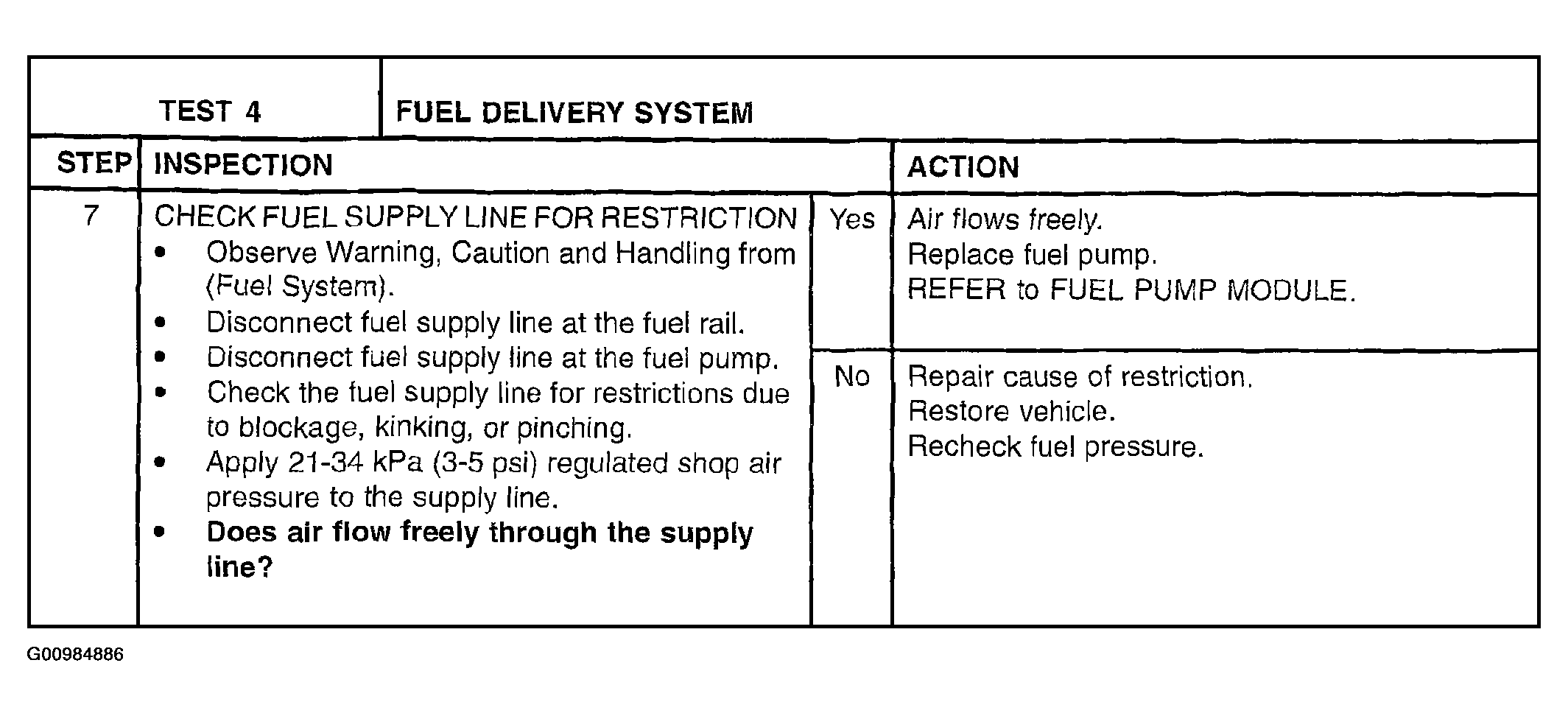

Fig 4: Test 4: Fuel Delivery System: Inspection (Step 7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
