Spark Plug Wires: Installation

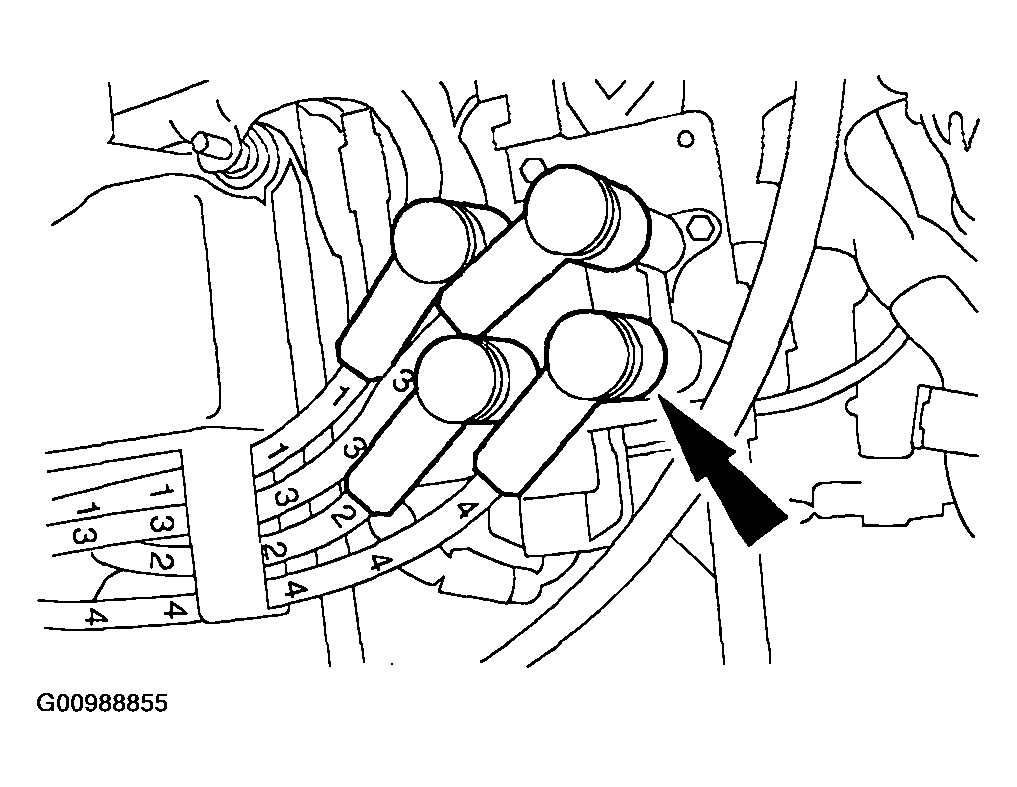

Fig 1: Connecting Ignition Wires To Ignition Coil

G00988855

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Correct installation of the ignition wires is critical to engine operation. If one spark plug wire is not correctly installed at either the spark plug or the ignition coil, both spark plugs connected to the ignition coil may not fire under load.

NOTE:

Whenever an ignition wire is reinstalled or a new one is installed, apply Silicone Brake Caliper Grease and Dielectric compound to the interior surface of the ignition wire boot.

NOTE:

Before installing the ignition wires, inspect the ignition wires for any visible damage; install new ignition wires if necessary.

Connect the ignition wires to the correct ignition coil terminals.

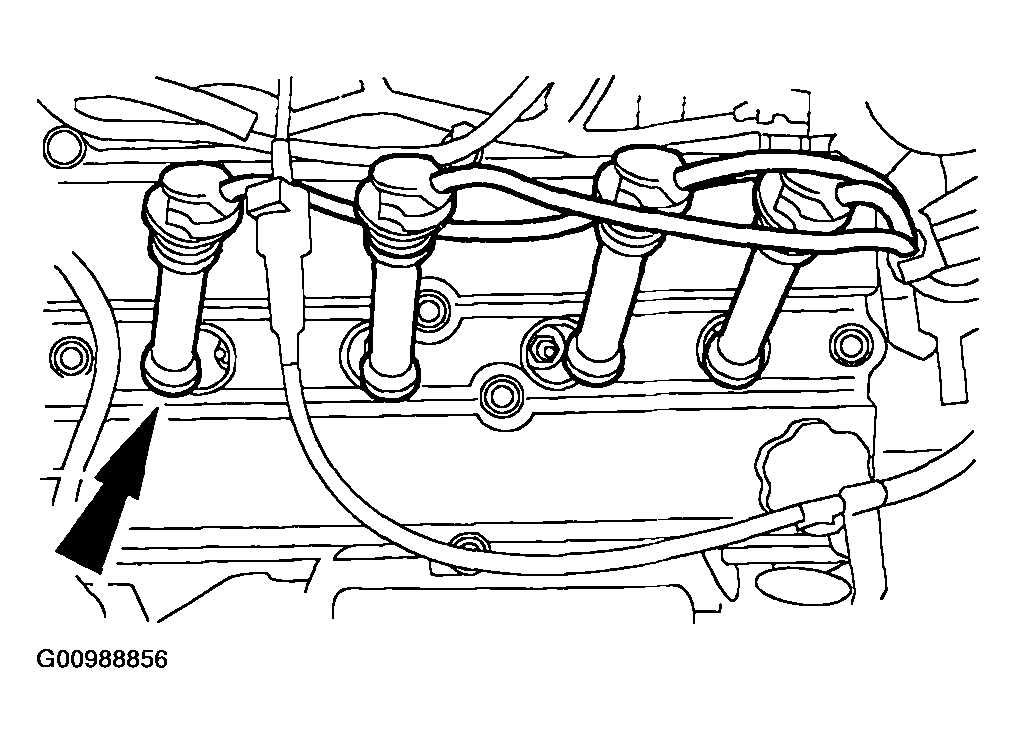

Fig 2: Connecting Ignition Wires To Correct Spark Plugs
Courtesy of MAZDA MOTORS CORP.
Connect the ignition wires to the correct spark plugs.
