Camber And Caster Adjustment

Raise and support the vehicle. For additional information, refer to LIFTING .

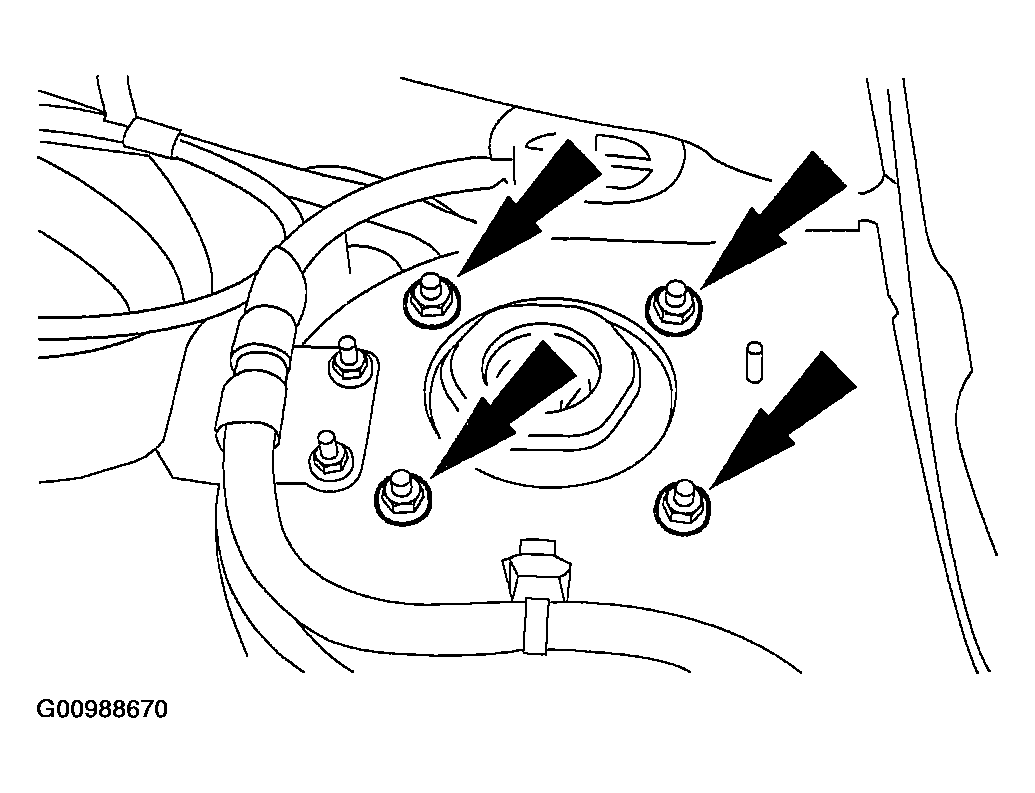

Fig 1: Removing Front Shock Absorber Upper Mounting Bracket Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the front shock absorber upper mounting bracket nuts.

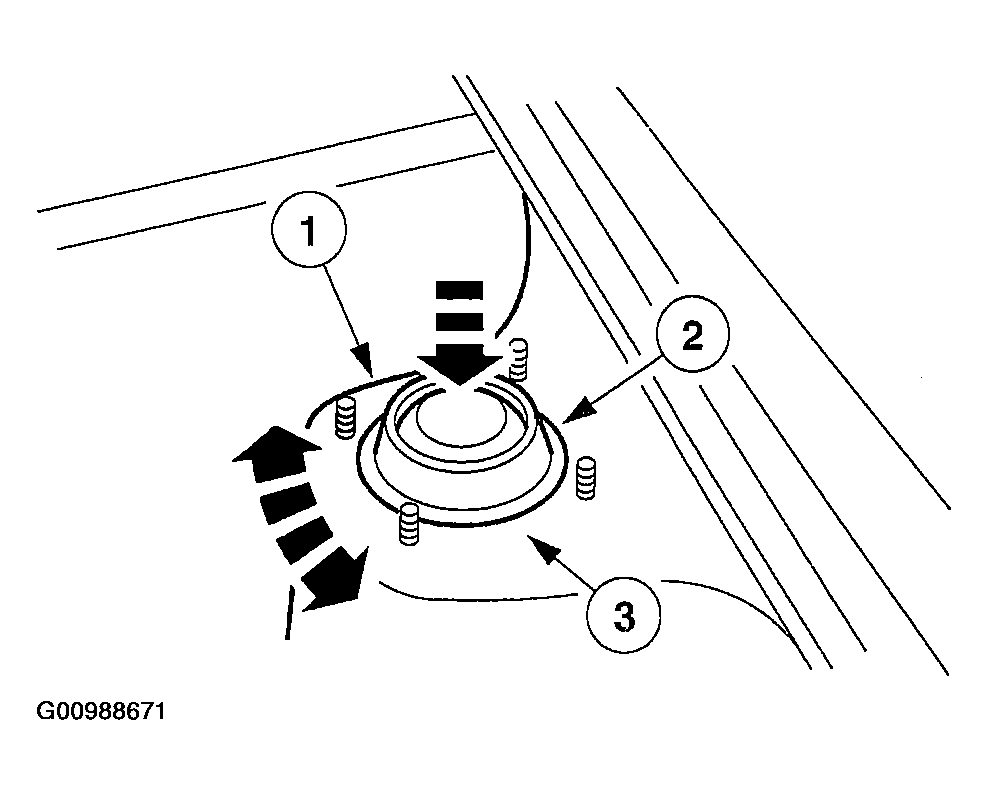

Fig 2: Adjusting Camber And Caster
Courtesy of MAZDA MOTORS CORP.
Push the front shock absorber upper mounting bracket downward and turn it to the desired position to set camber and caster. Both camber and caster for front suspension are adjustable within a maximum of 30 degree angle.

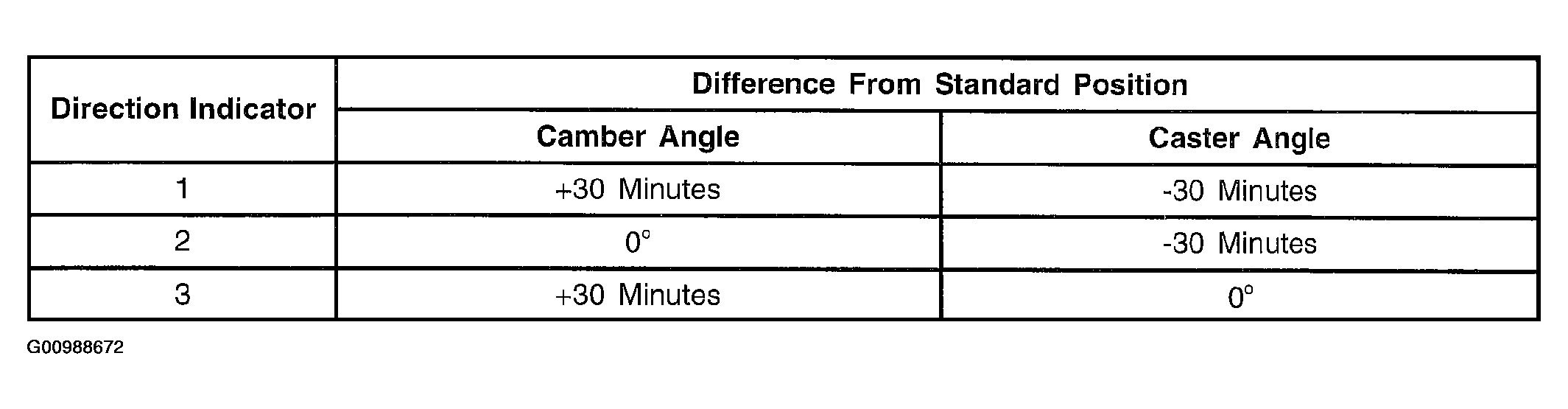

Fig 3: Camber And Caster Specification Table
Courtesy of MAZDA MOTORS CORP.

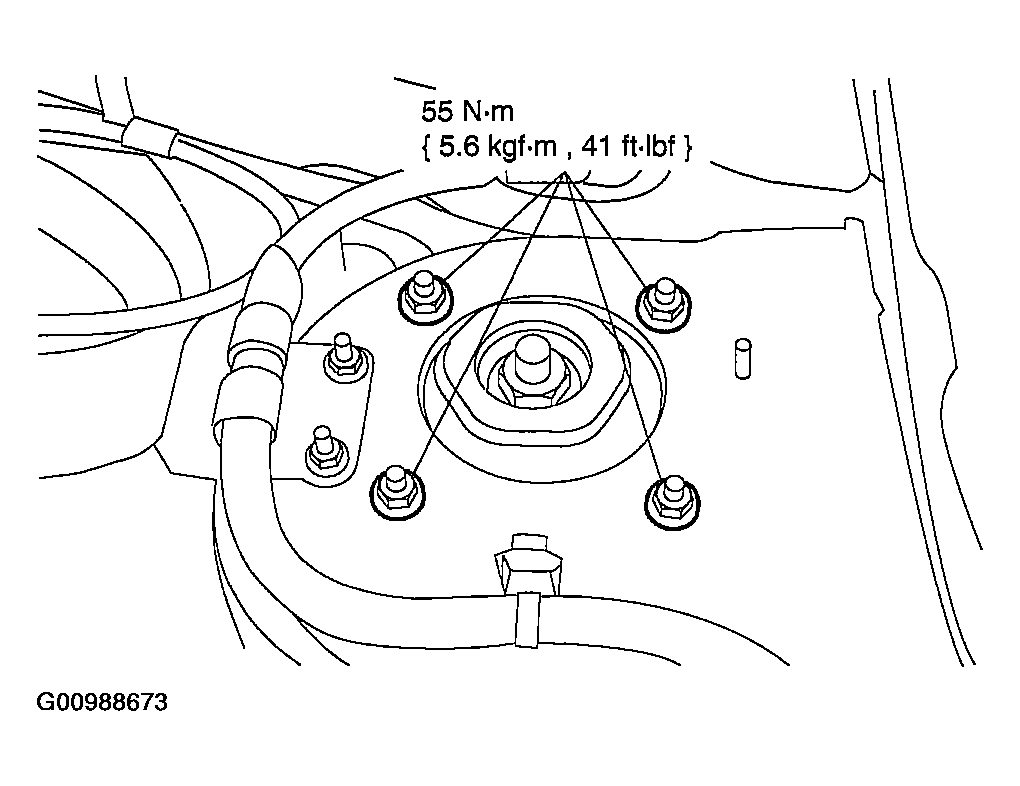

Fig 4: Tightening Front Shock Absorber Upper Mounting Bracket Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the front shock absorber upper mounting bracket nuts.
