Front Toe Adjustment

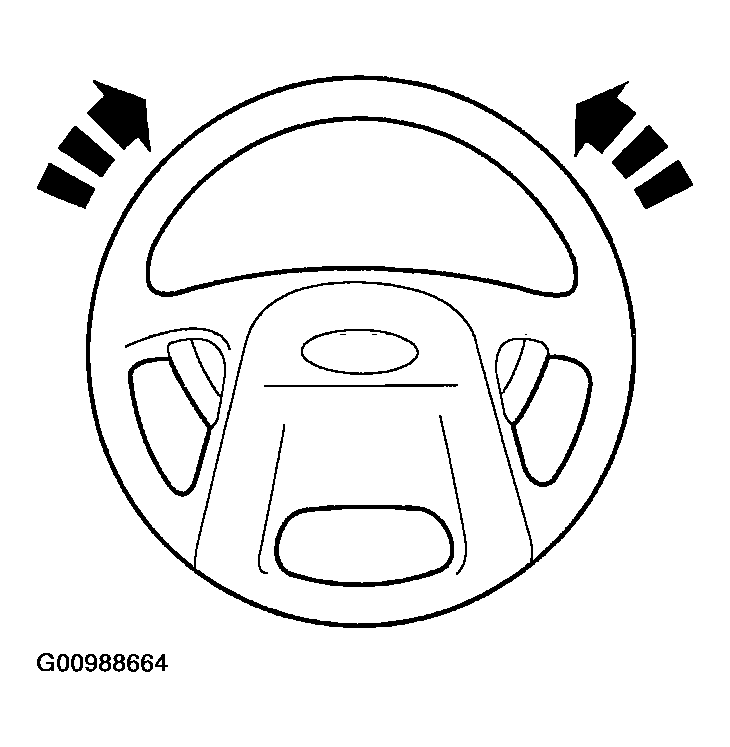

Fig 1: Centering Steering Wheel

Courtesy of MAZDA MOTORS CORP.

Start the engine and center the steering wheel.
Turn the engine off, and lock the steering wheel in position.
Check the toe settings. Follow the equipment manufacturer's instructions.

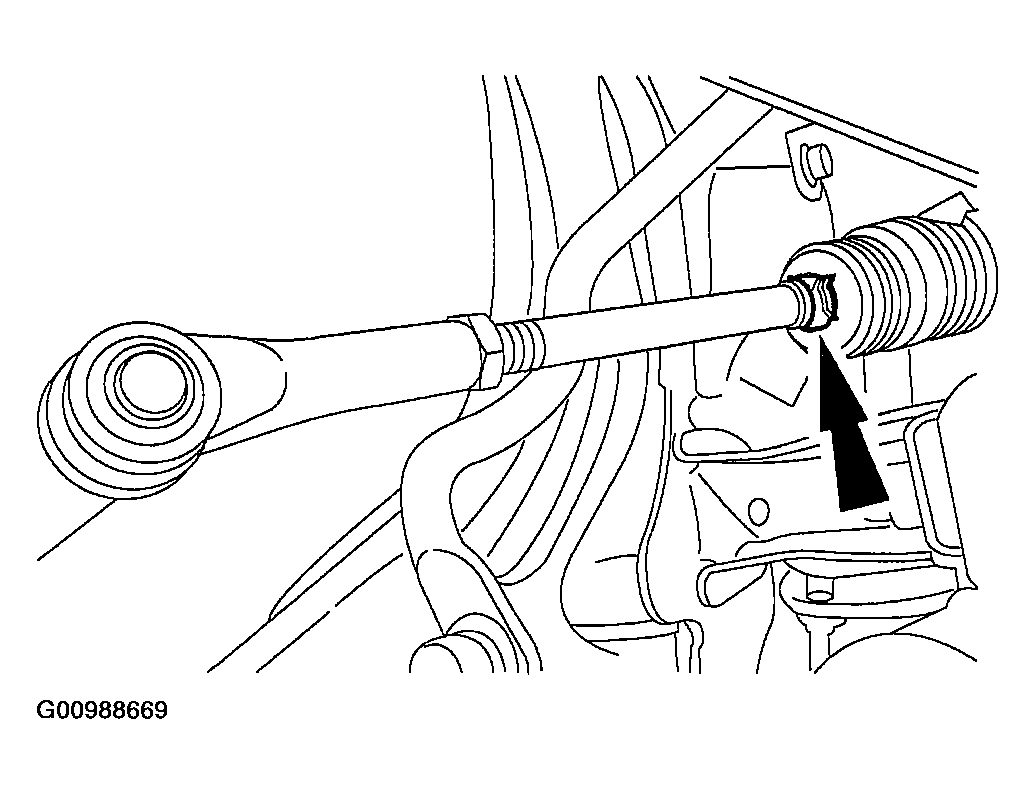

Fig 2: Locating Clamps
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.
Remove the clamps.

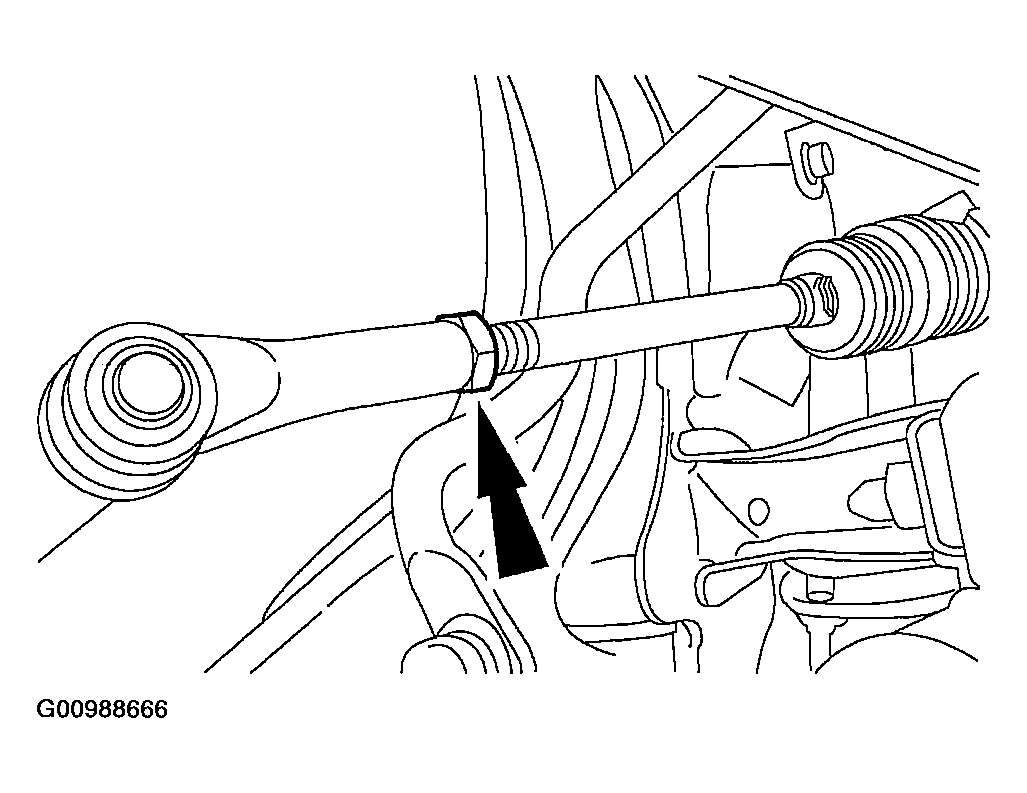

Fig 3: Locating Nut
Courtesy of MAZDA MOTORS CORP.
Loosen the nuts.
1. Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

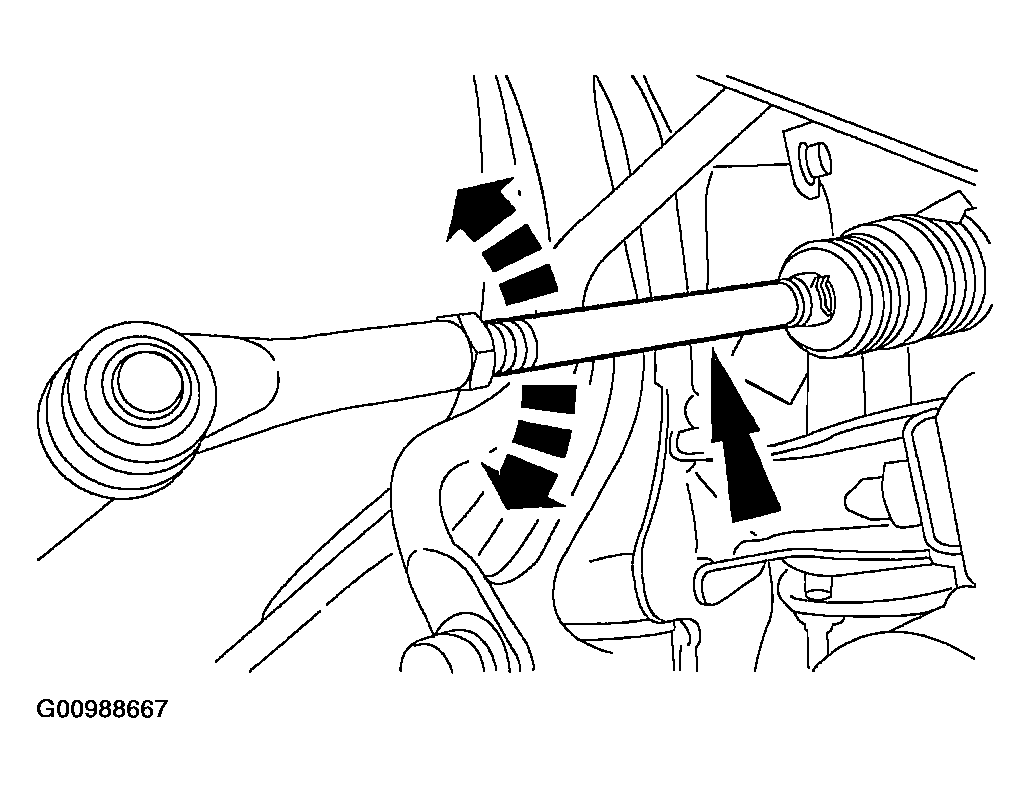

Fig 4: Rotating Front Wheel Spindle Tie Rods
Courtesy of MAZDA MOTORS CORP.
Rotate the front wheel spindle tie rods.

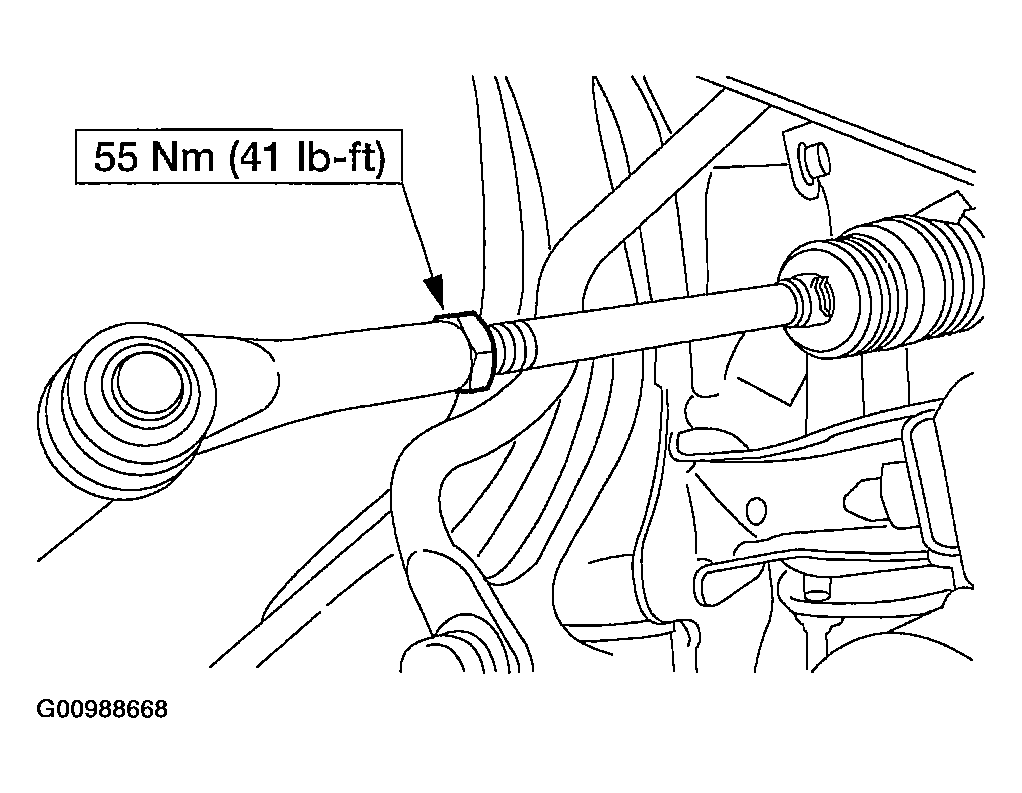

Fig 5: Tighten Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the nuts.

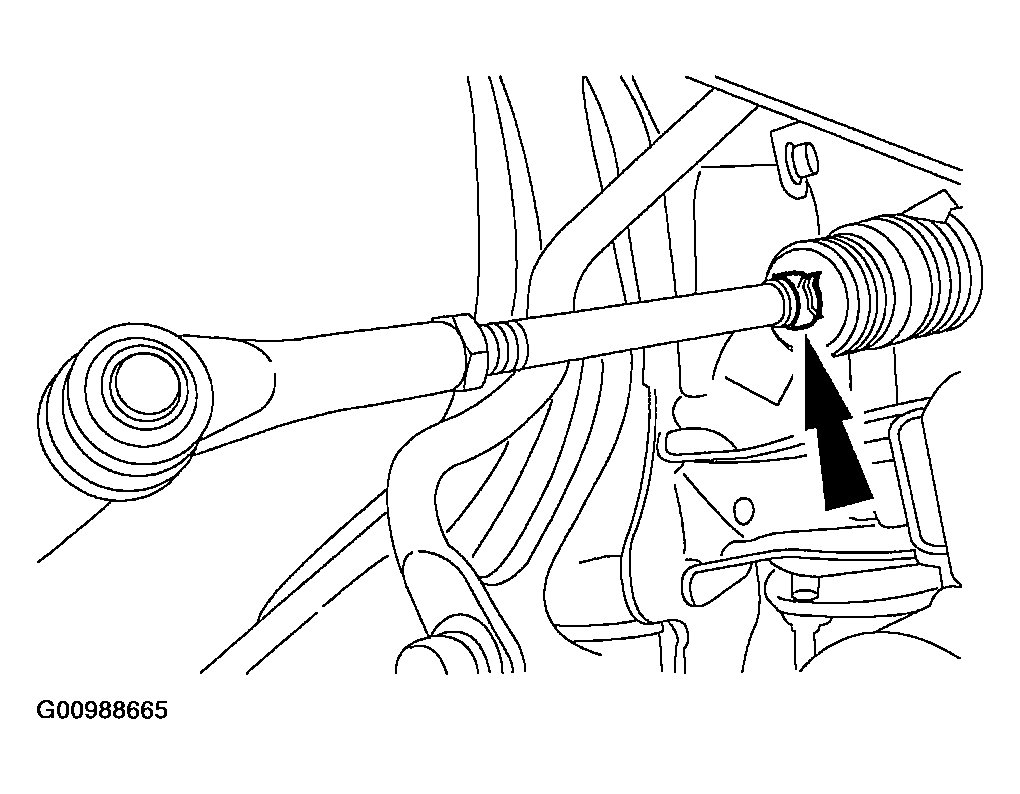

Fig 6: Install Clamp
Courtesy of MAZDA MOTORS CORP.
Install the clamp(s).
Recheck the toe settings. Follow the equipment manufacturer's instructions.
