2.0L ZETEC Fan Diagnosis Chart: Notes

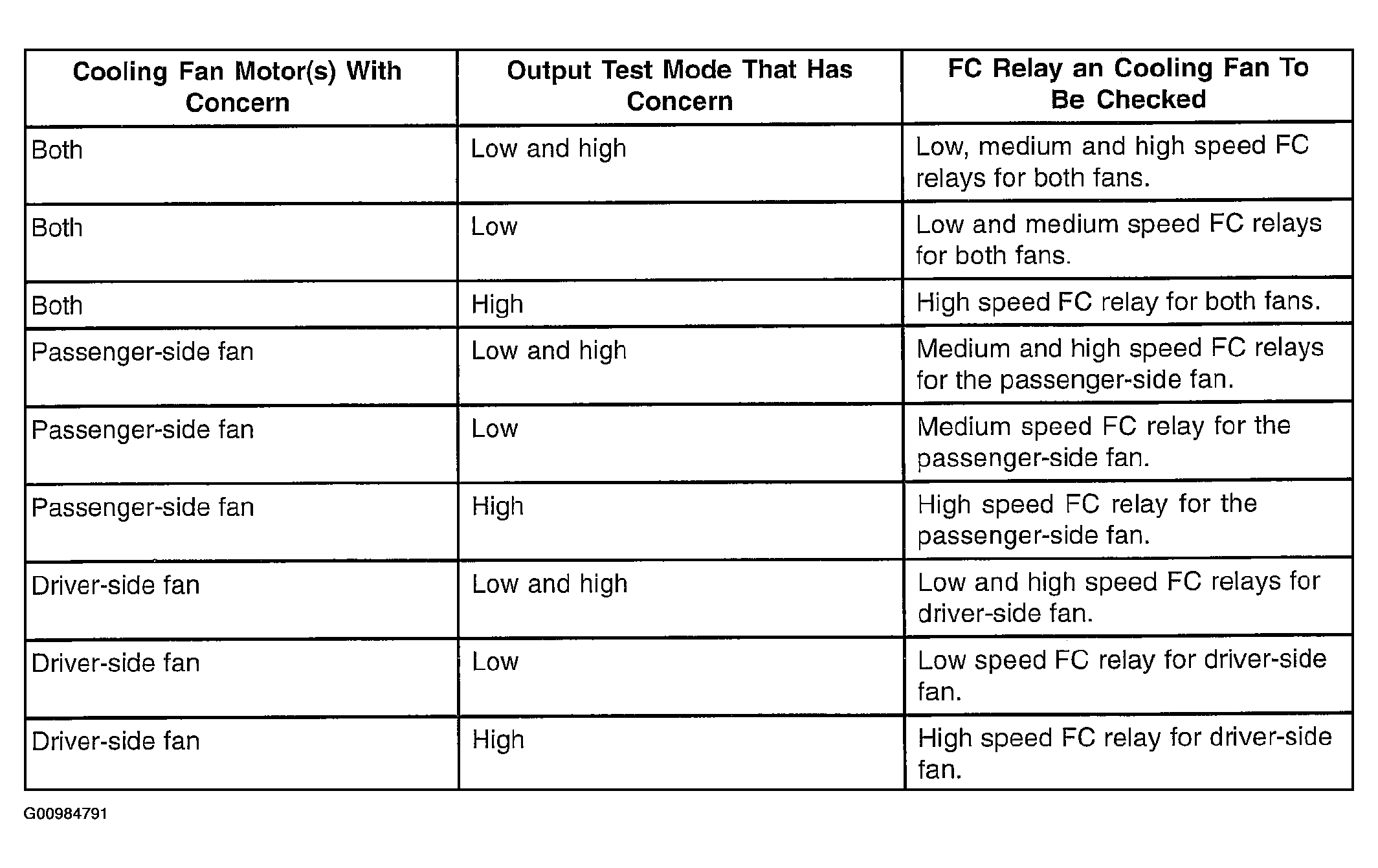

Fig 1: 2.0L Zetec Fan Diagnosis Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
