System Specifications

General Specification


Drive Plate

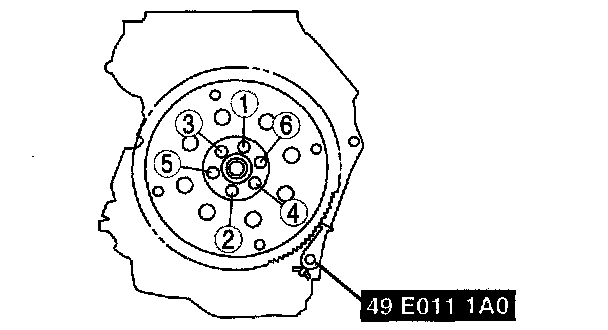

Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.
Tightening torque 108 - 116 Nm (111.0 - 11.8 kgf-m, 79.7 - 85.5 ft. lbs)

Oil Pan 6 - 8 Nm (62 - 81 kgf-cm, 53 - 70 inch lbs.)
