Keyless Entry Module: Service and Repair

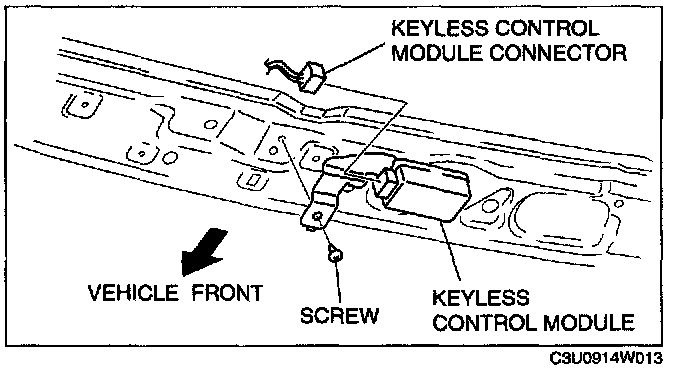

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the map light.
3. Disconnect the keyless control module connector.




4. Remove the screw, then remove the keyless control module.
5. Install in the reverse order of removal.
6. When replacing the keyless control module, register the transmitter ID codes.
