Engine Oil: Testing and Inspection

ENGINE OIL LEVEL INSPECTION
1. Position the vehicle on level ground.
2. Warm up the engine.
3. Stop the engine and allow approx. 5 min before continuing.

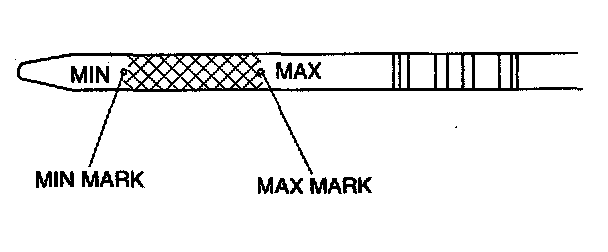

4. Remove the dipstick and verify that the oil level is between the MAX and MIN marks on the dipstick.
- If the oil level is below the MIN mark, add engine oil.
