Component Locations

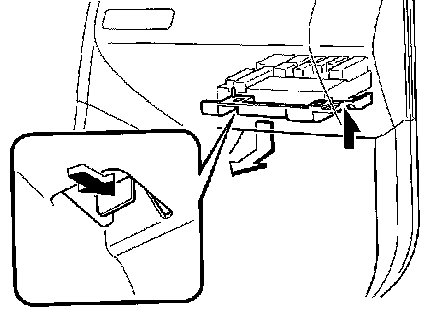

Under Glove Box:

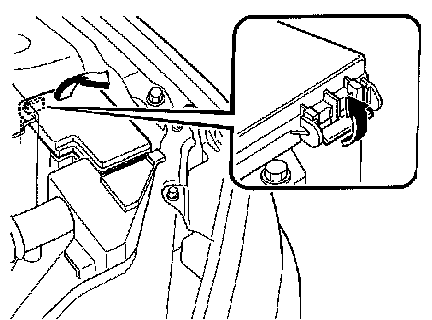

Fuse Box Locations

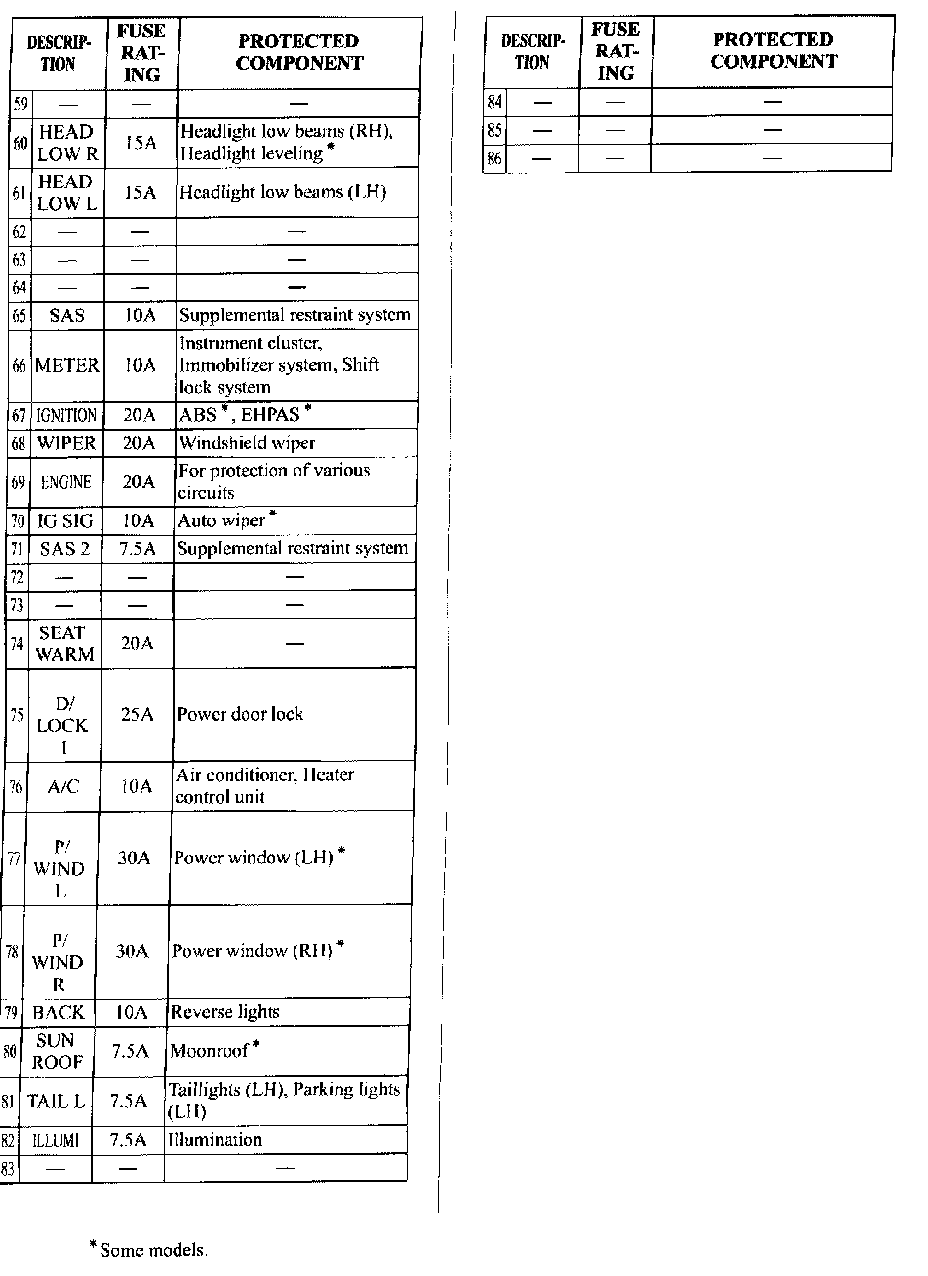

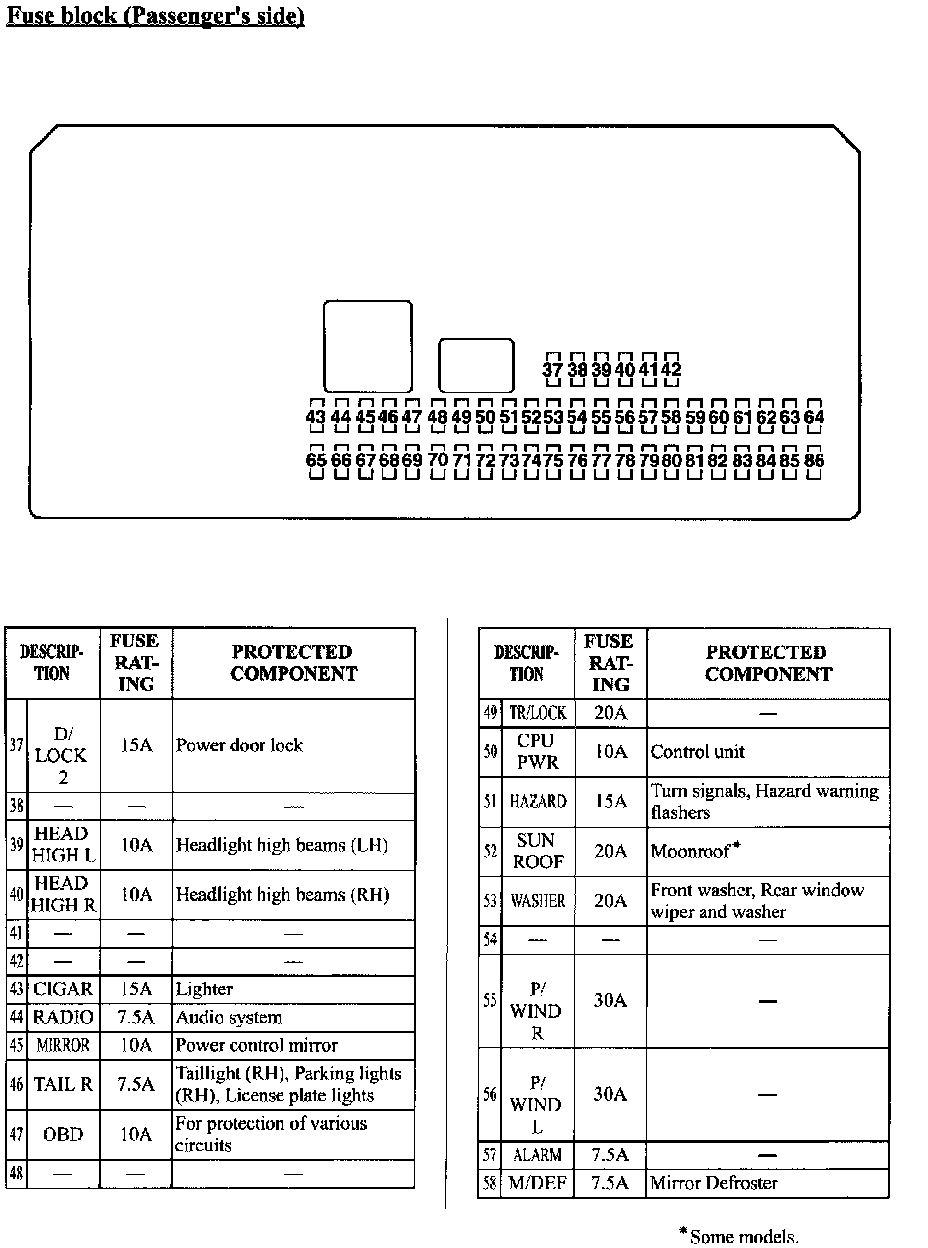

Fuse ID Passenger Compartment Box

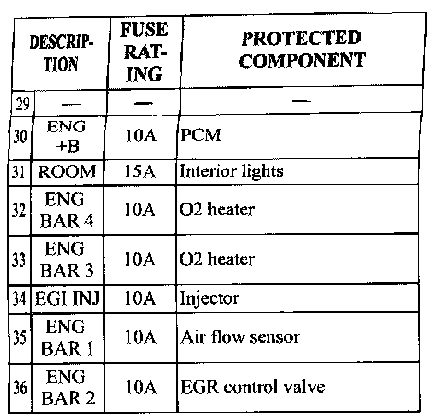

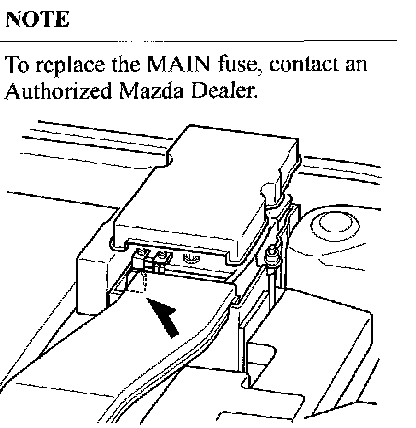

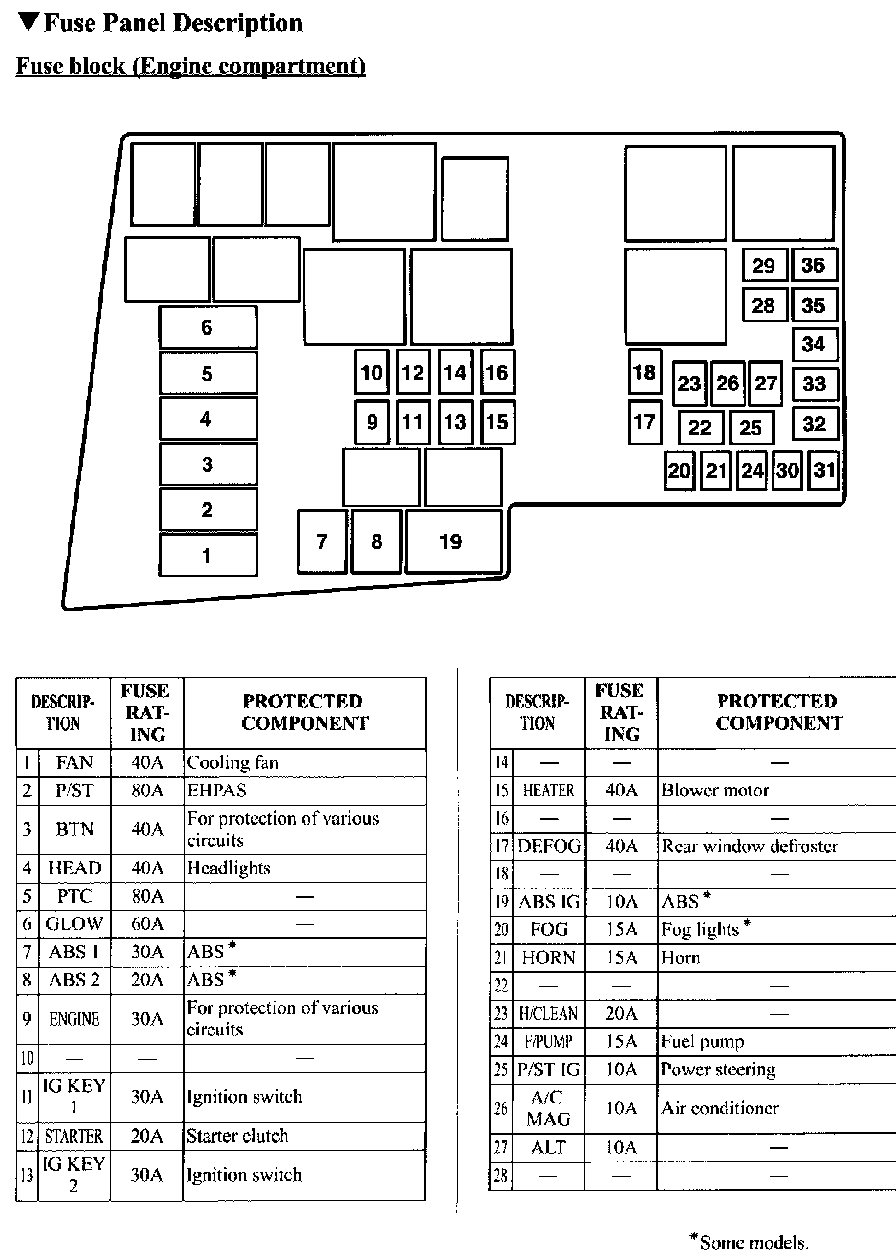

Fuse ID Engine Compartment
