Center Panel Module Removal/Installation

CENTER PANEL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the decoration panel.

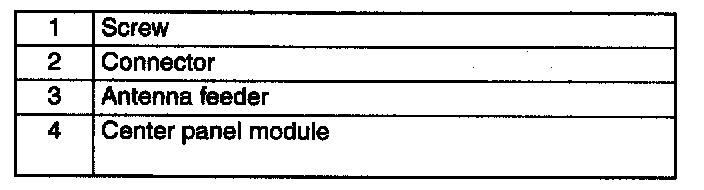

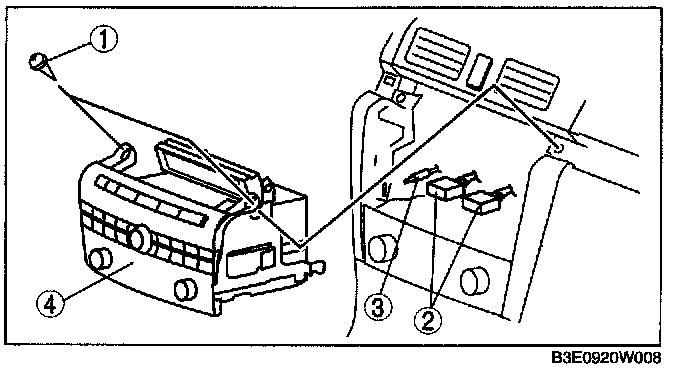

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

CAUTION: When installing the center panel module, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard.If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.

Center Panel Module Removal Note

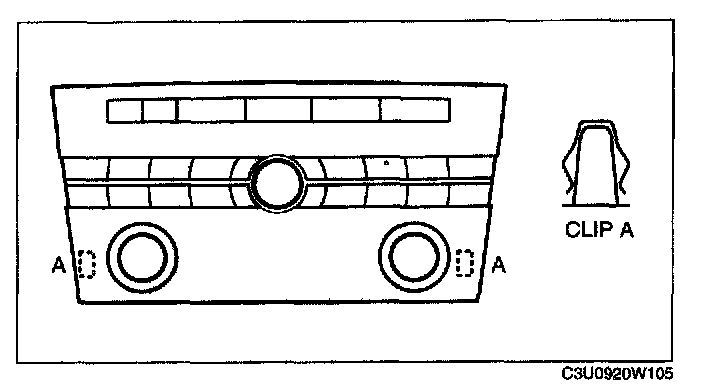

1. Pull the center panel module outward, detach clip A from the dashboard, and then remove the center panel module.
