Alignment

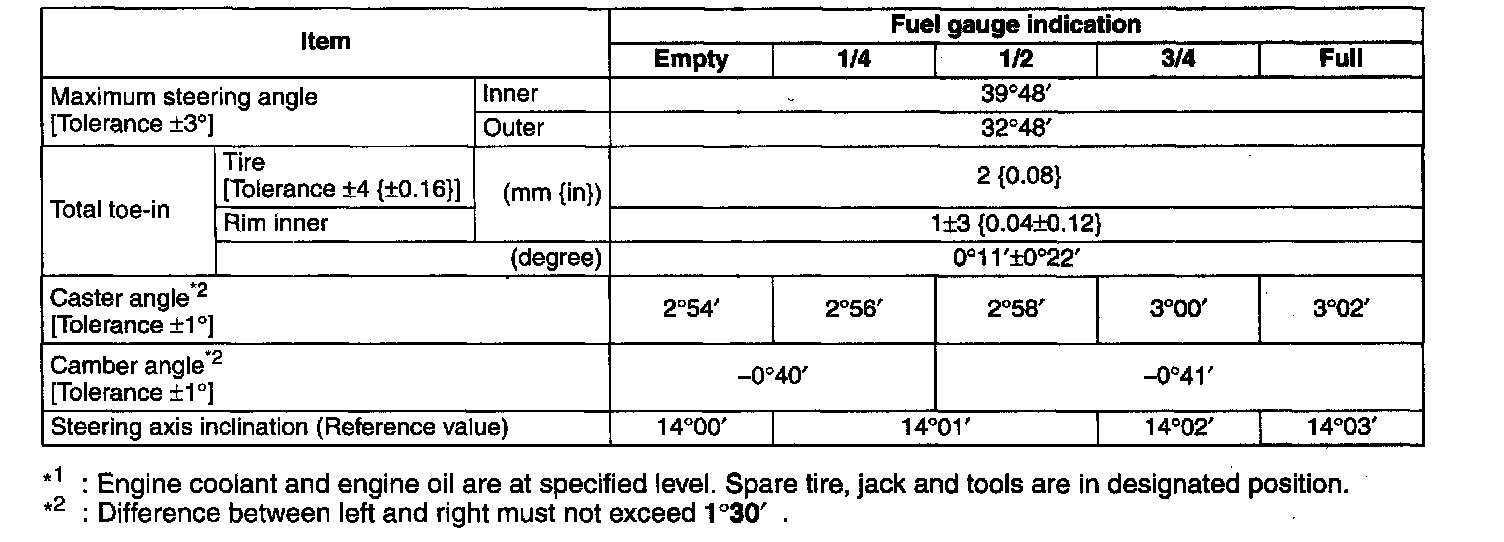

FRONT WHEEL ALIGNMENT





Specification (Unloaded)*1


REAR WHEEL ALIGNMENT





Specification (Unloaded)*1
