Programming and Relearning

ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE CONFIGURATION





1. Turn the ignition switch off.

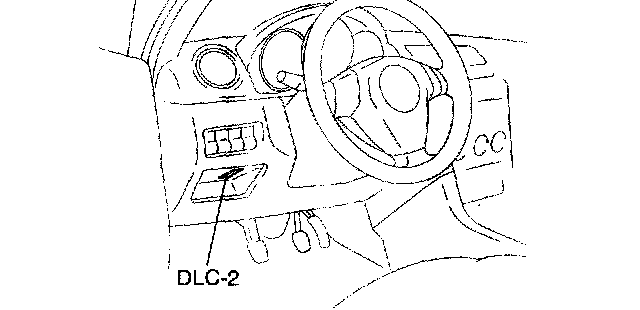

2. Connect the WDS or equivalent to the DLC-2.
3. Input vehicle information following the directions on the screen of the WDS or equivalent.
4. Select Module programming from the WDS or equivalent menu.
5. Select Programmable Module Installation.
6. Select EPS.
7. Clear DTCs using the WDS or equivalent, then verify that there is no DTC present.
