California Emission Regulation Applicable Model

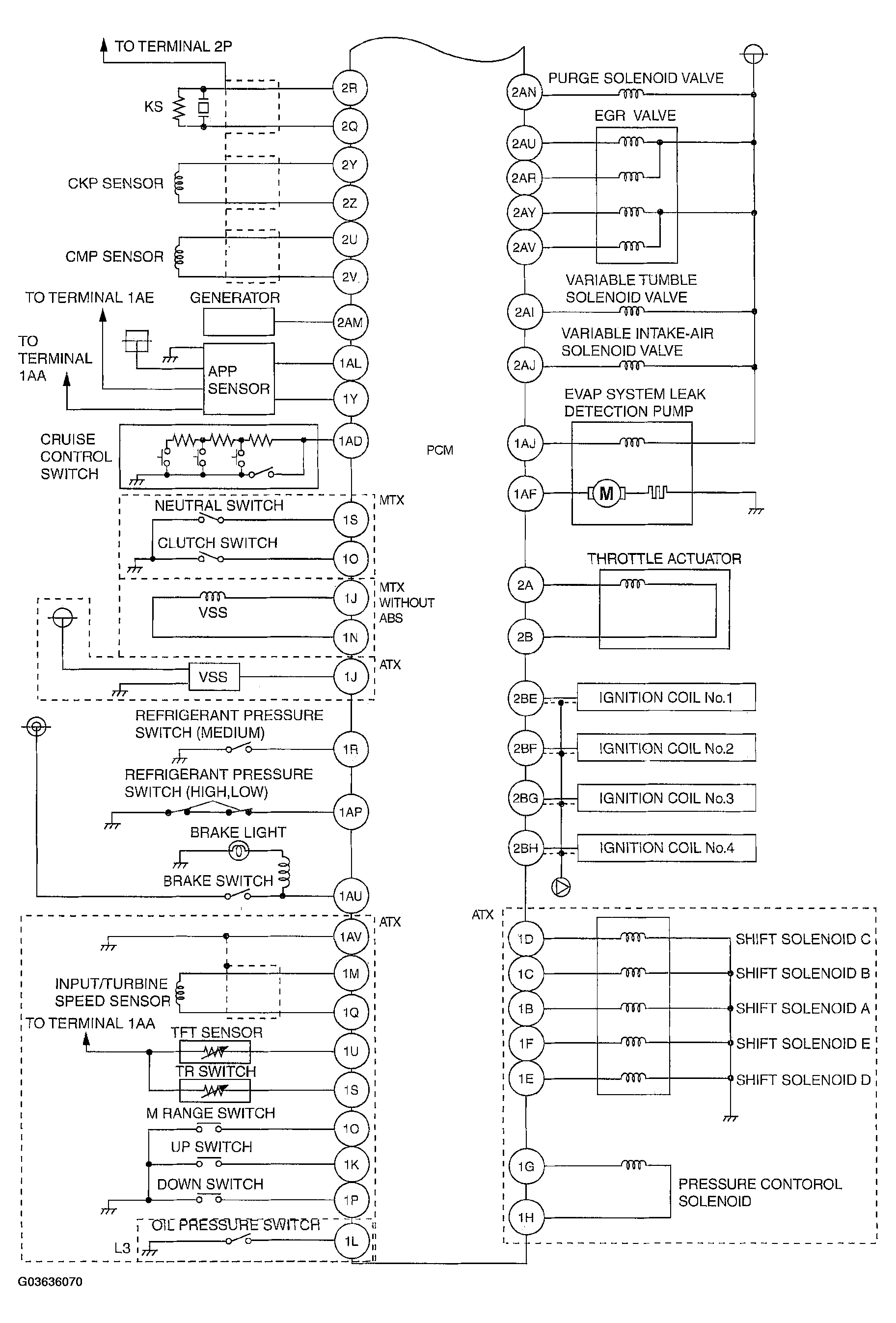

Fig 1: Control System Wiring Diagram - California (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

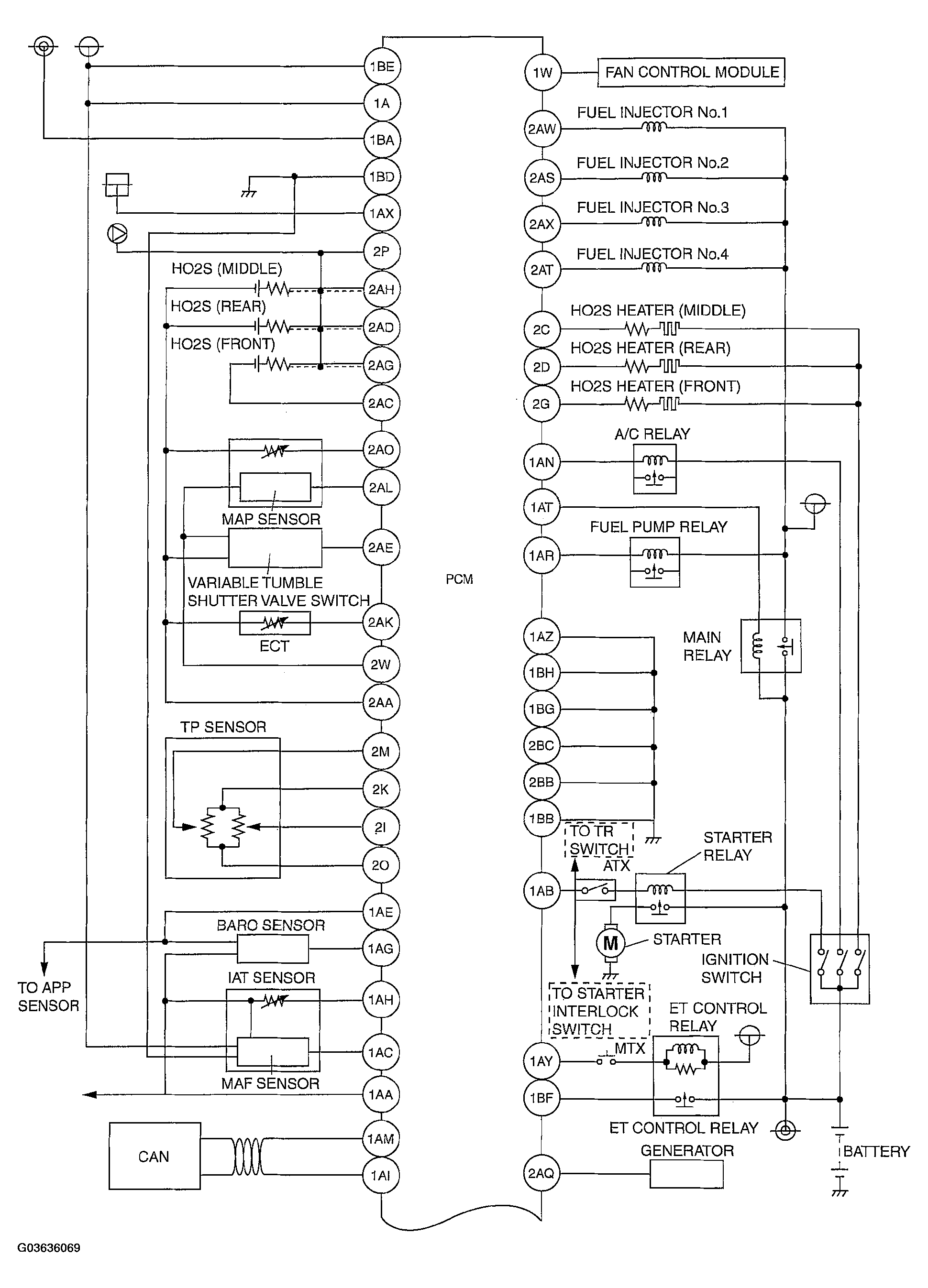

Fig 2: Control System Wiring Diagram - California (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
