Cooling fan control signals

PCM terminals

• 1W(+)-1AA(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up (engine speed approx. 700 rpm, A/C ON)

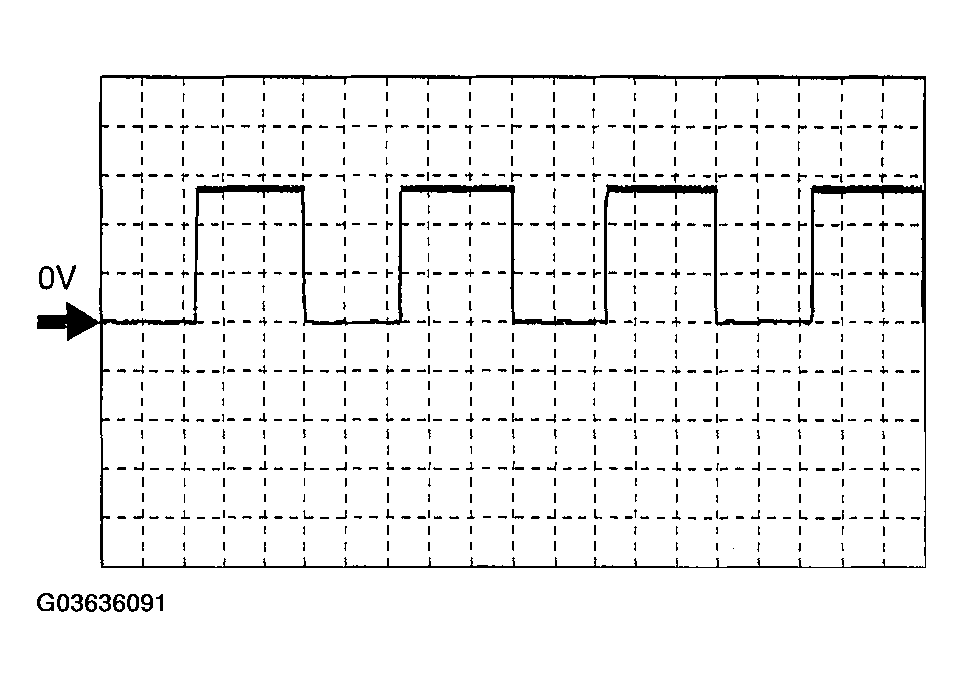

Fig 1: Cooling Fan Control Signals Pattern

Courtesy of MAZDA MOTORS CORP.
