Fuel Injector Removal/Installation: Notes
- Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See
BEFORE SERVICE PRECAUTION )
- Remove the plug hole plate.
- Remove the battery cover. (See
BATTERY REMOVAL/INSTALLATION
.)
- Disconnect the negative battery cable.
- Disconnect the fuel injector connector.

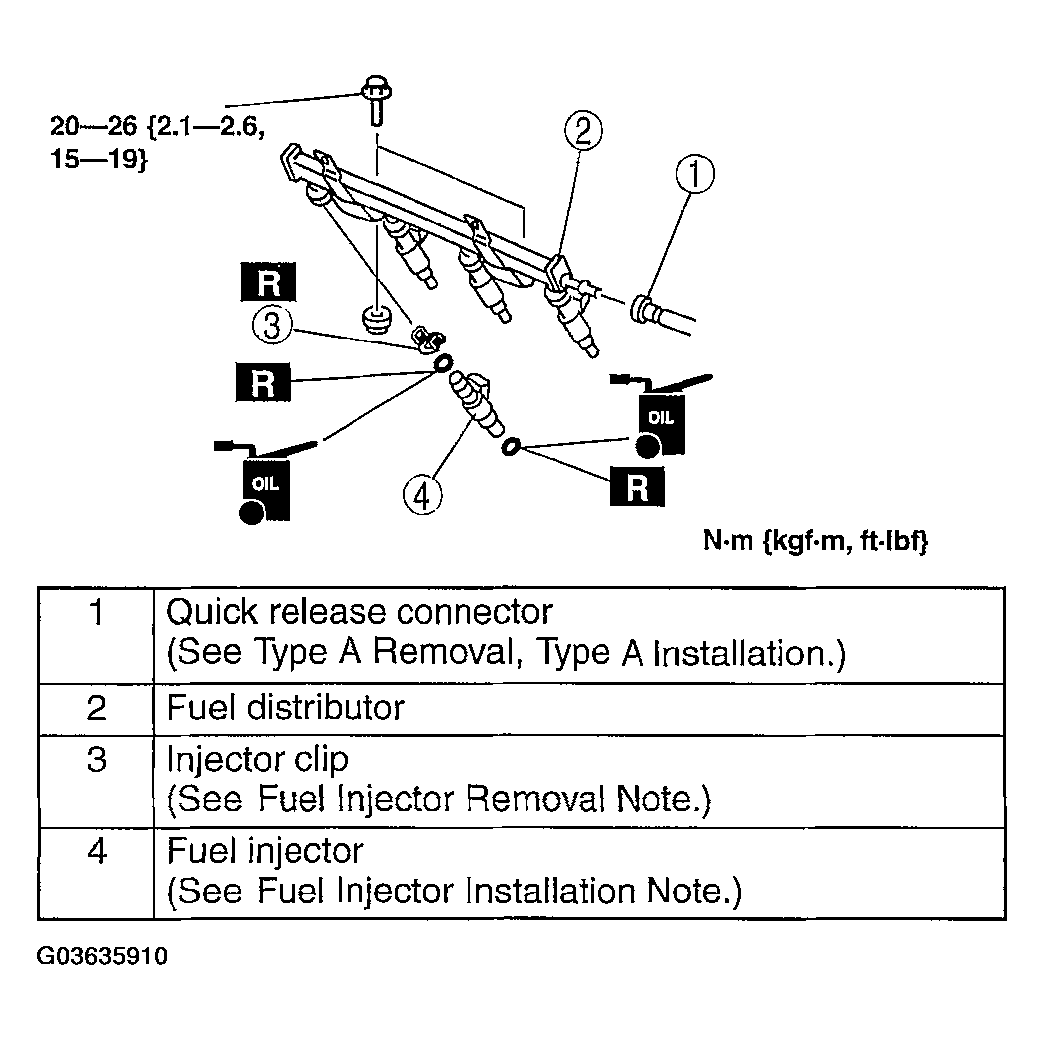

- Remove in the order indicated in the illustration.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
- Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See
AFTER SERVICE PRECAUTION )
