After Repair Procedure

  1. Turn the ignition switch off.
  2. Connect the WDS or equivalent to the DLC-2.
    NOTE:
    • Be sure the ignition switch is turned off before performing the following procedure.
  3. Turn the ignition switch to the ON position (Engine off).
  4. Record the DTC if retrieved.
  5. Clear all diagnostic data using the WDS or equivalent.

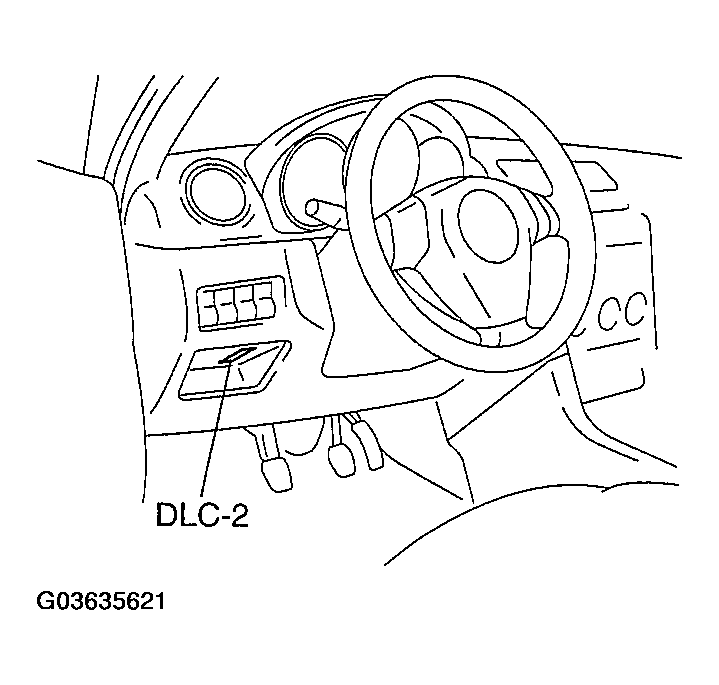

    Fig 1: Locating DLC-2 16-Pin Connector
    G03635621Courtesy of MAZDA MOTORS CORP.
