DTC P0016: Notes

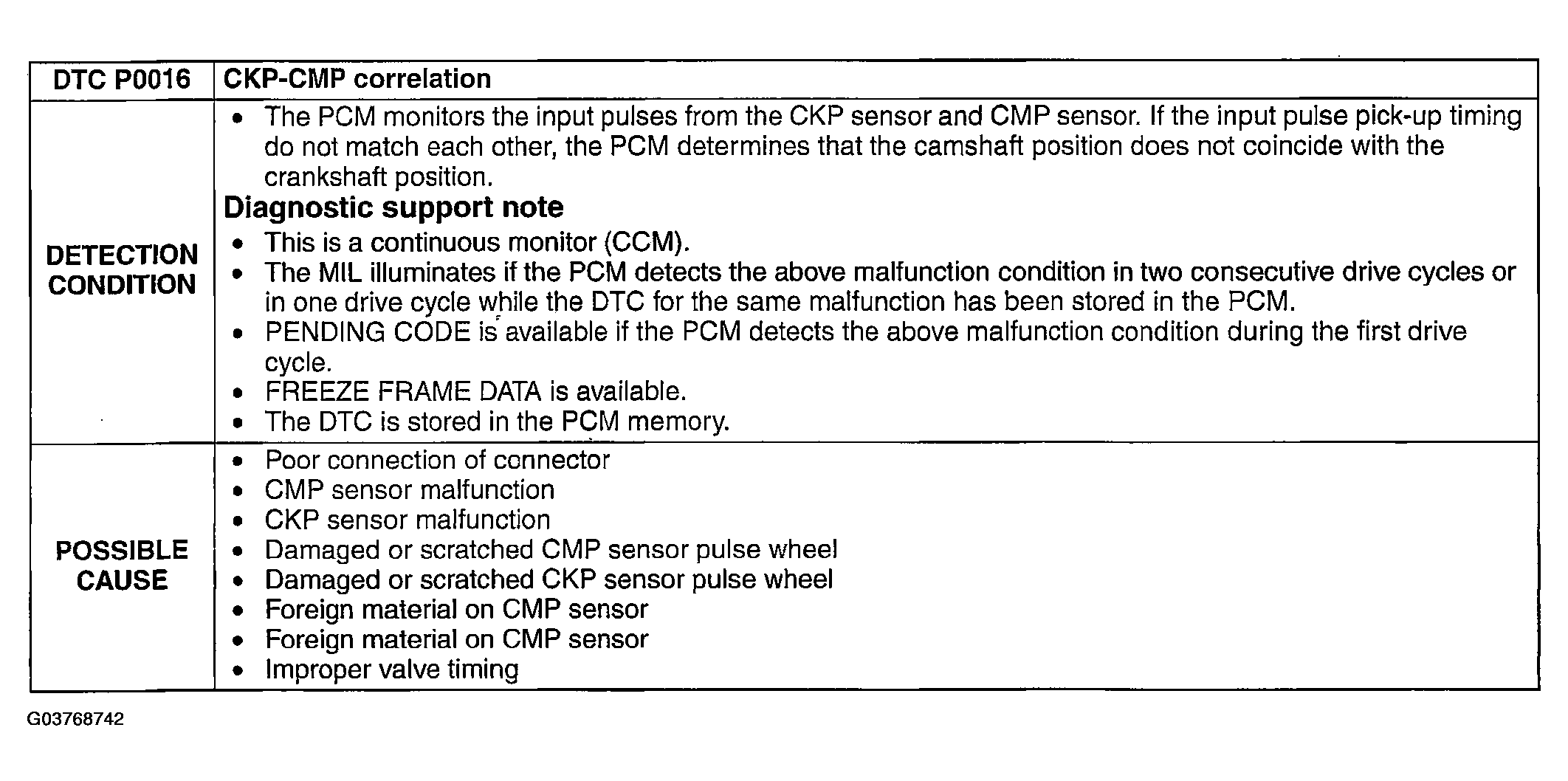

Fig 1: DTC P0016 Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
