DTC P0661
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0661: Notes

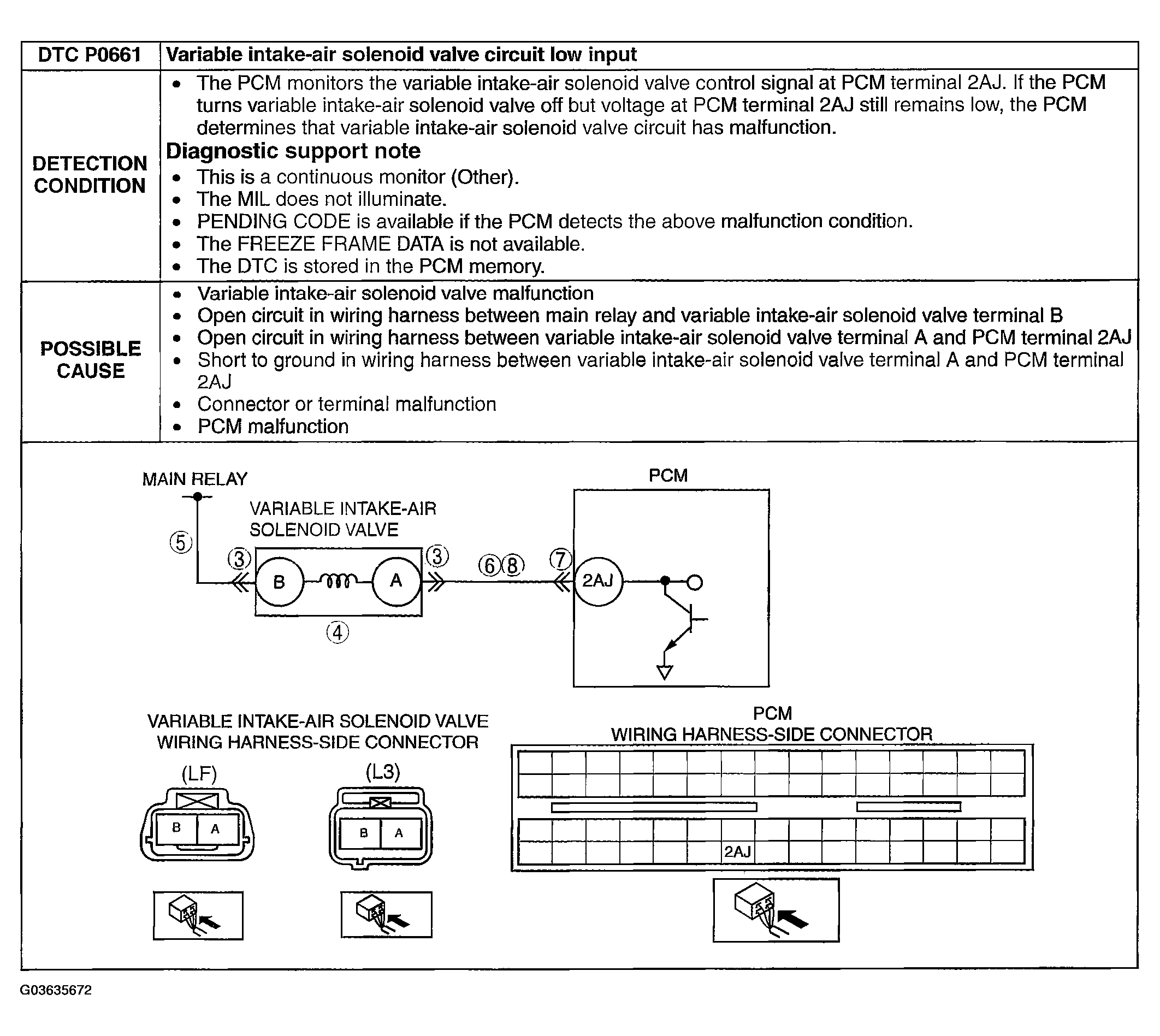

Fig 1: DTC P0661 Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
