DTC P2507
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P2507: Notes

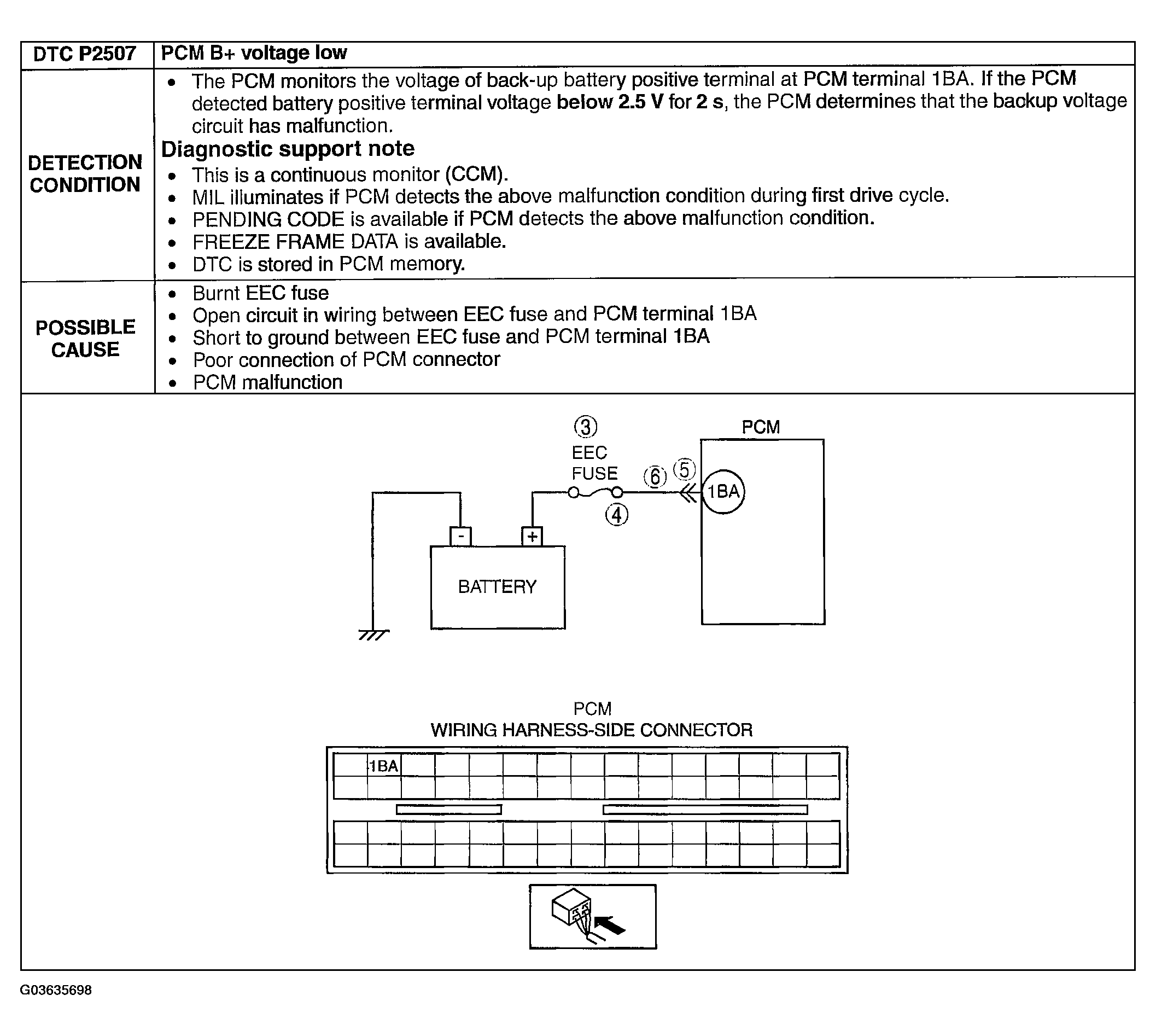

Fig 1: DTC P2507 Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
