Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connectors.
  2. Disconnect the APP sensor connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

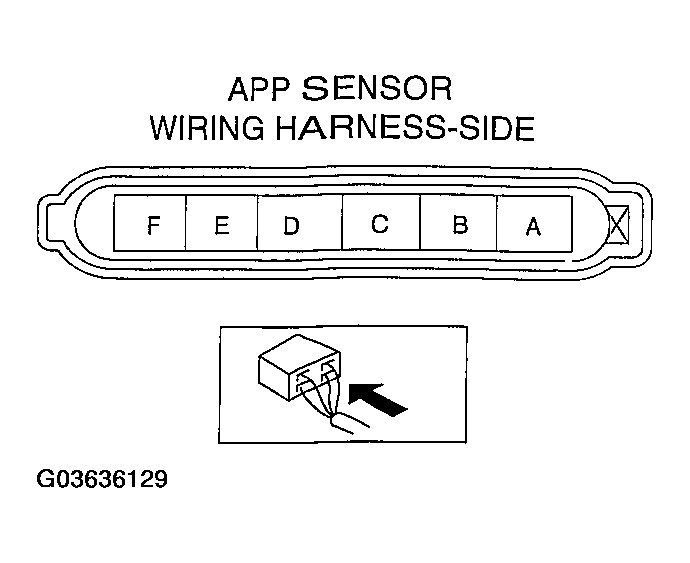

    Fig 1: Identifying APP Sensor Connector
    G03636129Courtesy of MAZDA MOTORS CORP.

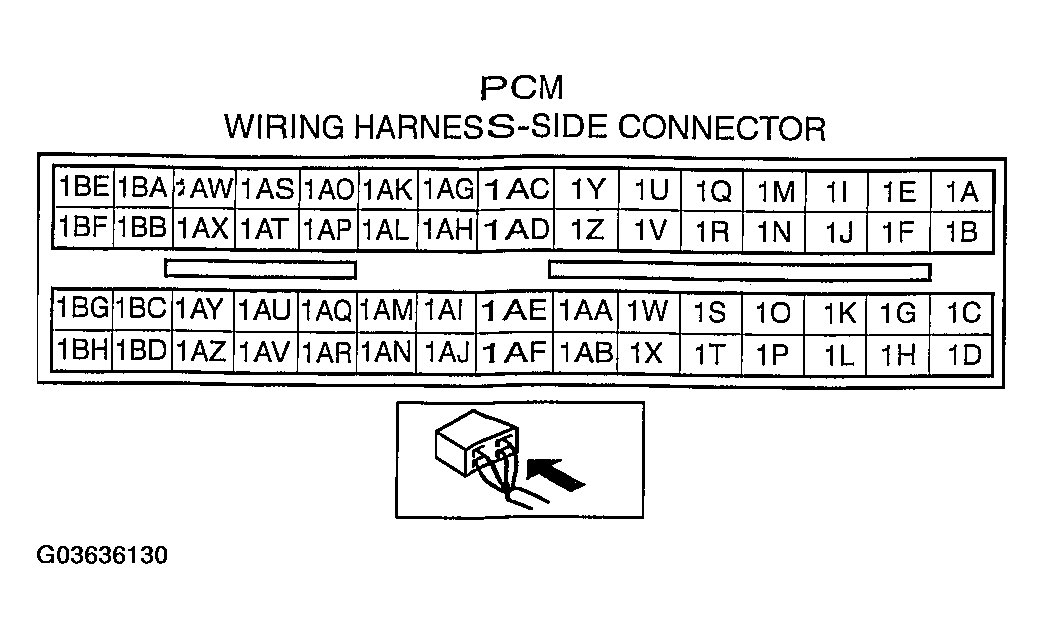

    Fig 2: Identifying PCM Harness Connector
    G03636130Courtesy of MAZDA MOTORS CORP.

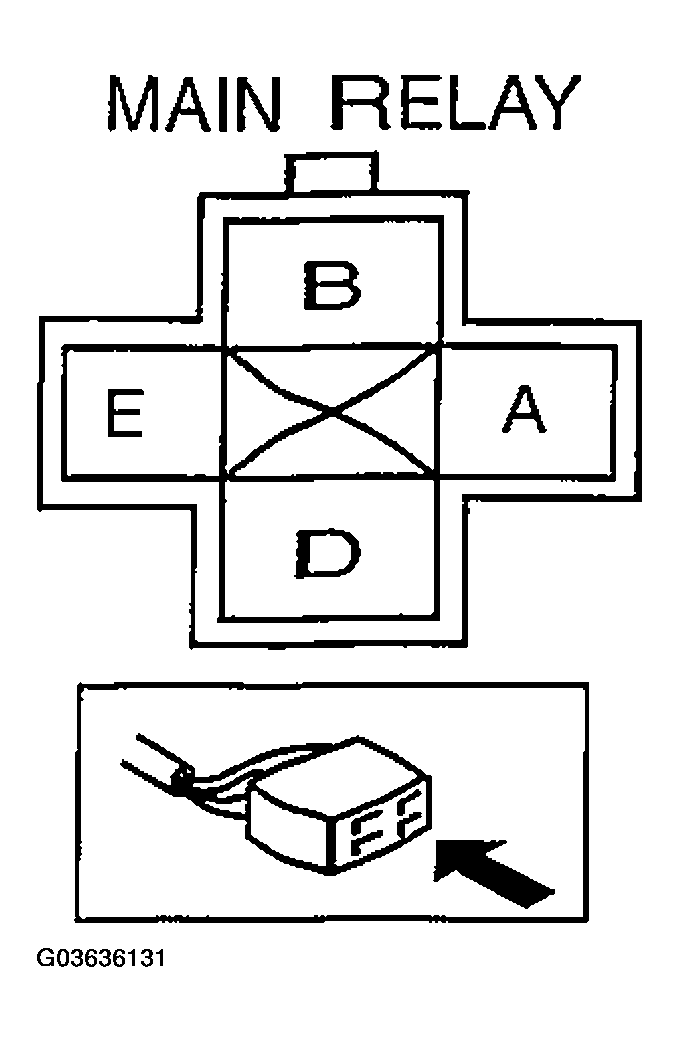

    Fig 3: Identifying Main Relay Harness Connector
    G03636131Courtesy of MAZDA MOTORS CORP.
