California Emission Regulation Applicable Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
California Emission Regulation Applicable Model

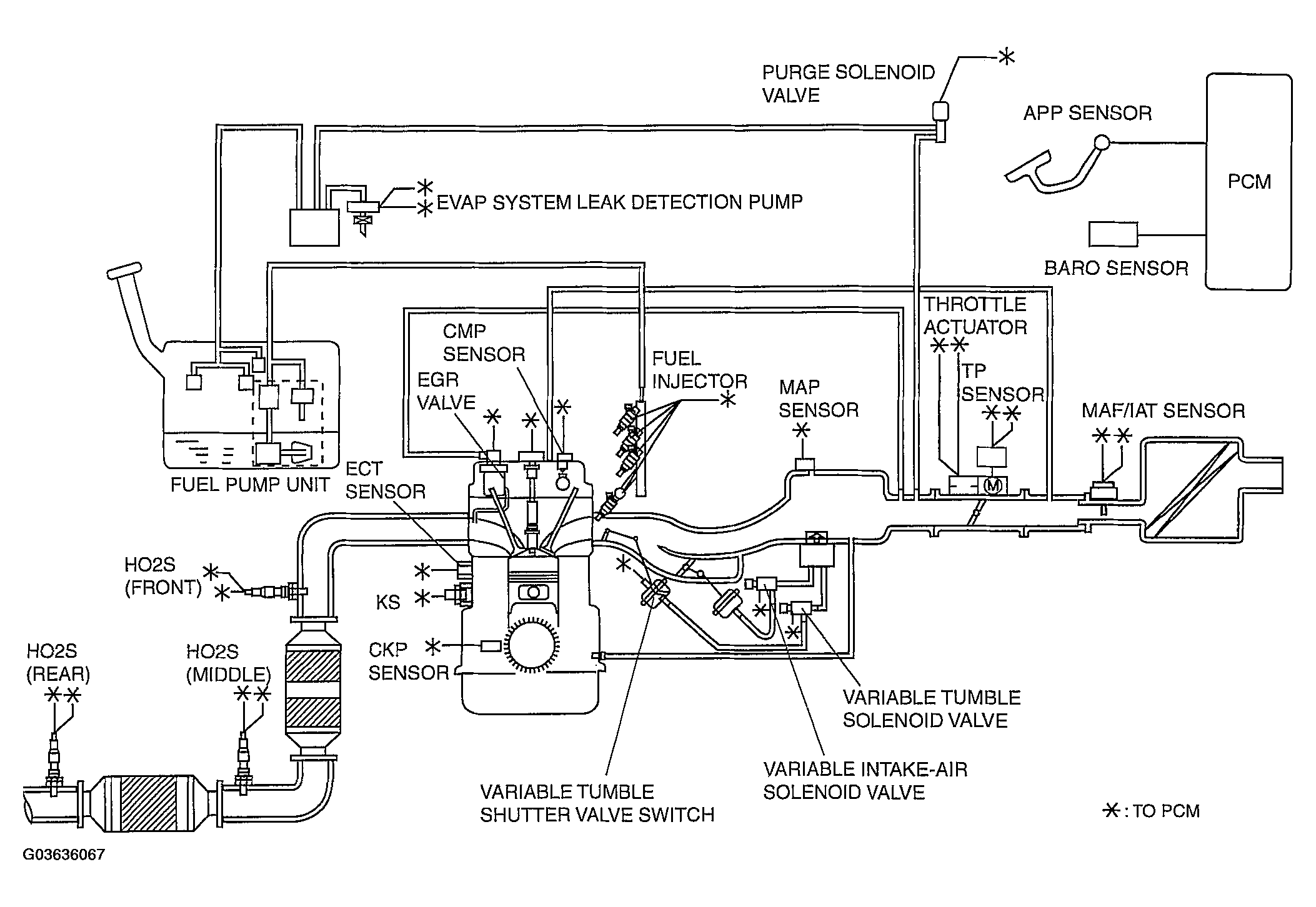

Fig 1: Control System Diagram - California
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
