Control System Location Index

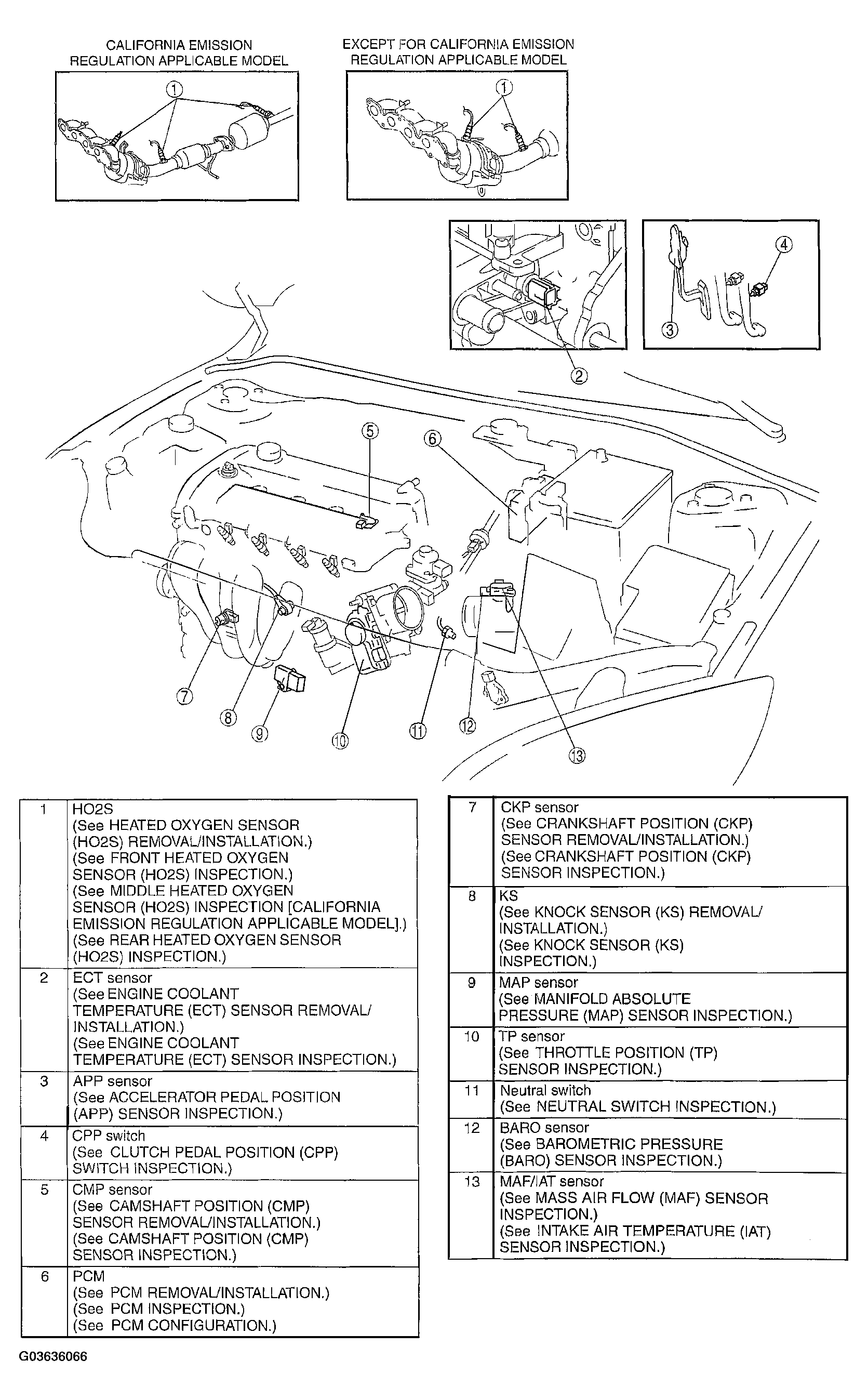

Fig 1: Identifying Control System Component Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
