Wiring Harness Bracket Installation Note

NOTE:

There might be no pin. If there is no pin, lock the wiring harness bracket against rotation and tighten the nut.

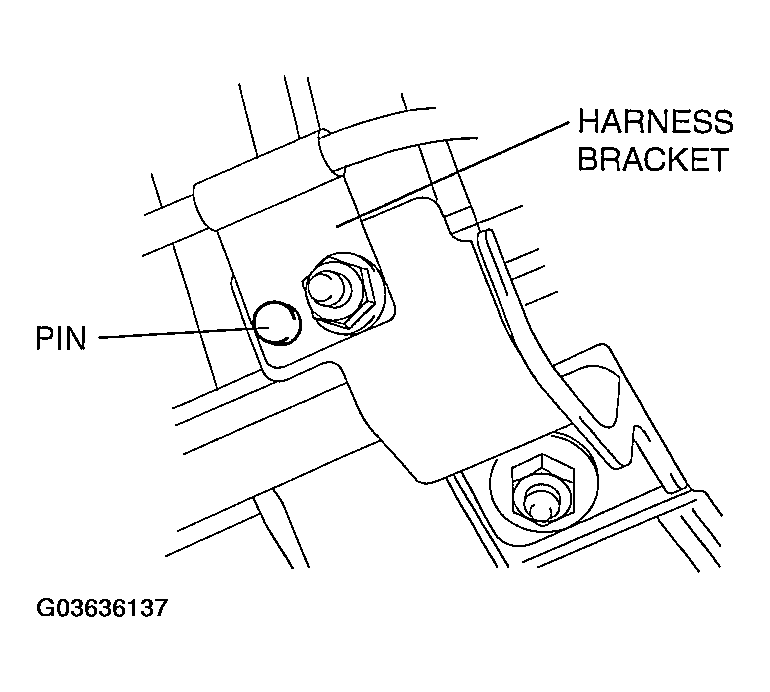

Fig 1: Identifying Wiring Harness Bracket

Courtesy of MAZDA MOTORS CORP.
