CKP sensor signal: (-)

PCM terminals

• 2Z(+)-2AA(-)

Oscilloscope setting

• 2 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up (engine speed approx. 650 rpm, no load)

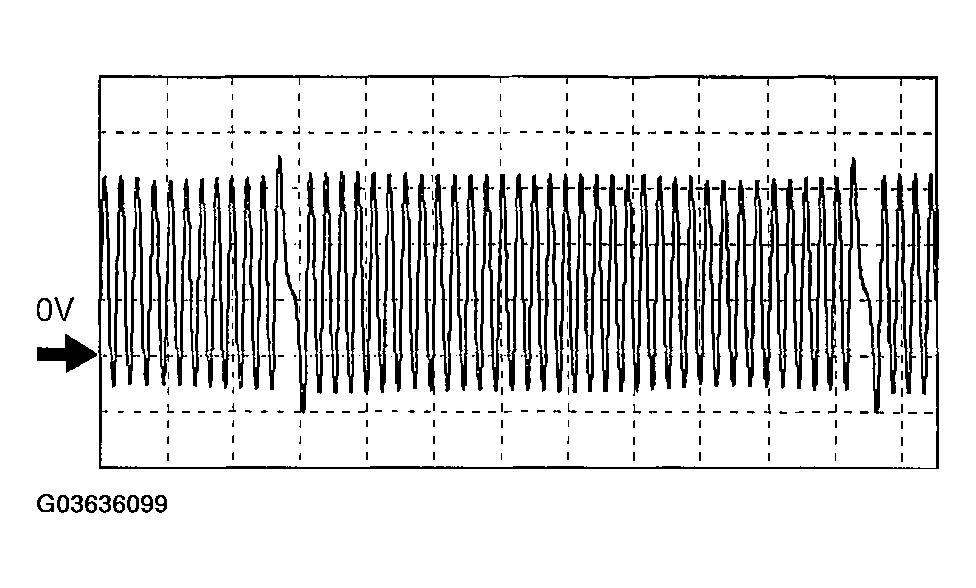

Fig 1: CKP Sensor Signal (-) Pattern

Courtesy of MAZDA MOTORS CORP.
