Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Disconnect the throttle body connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

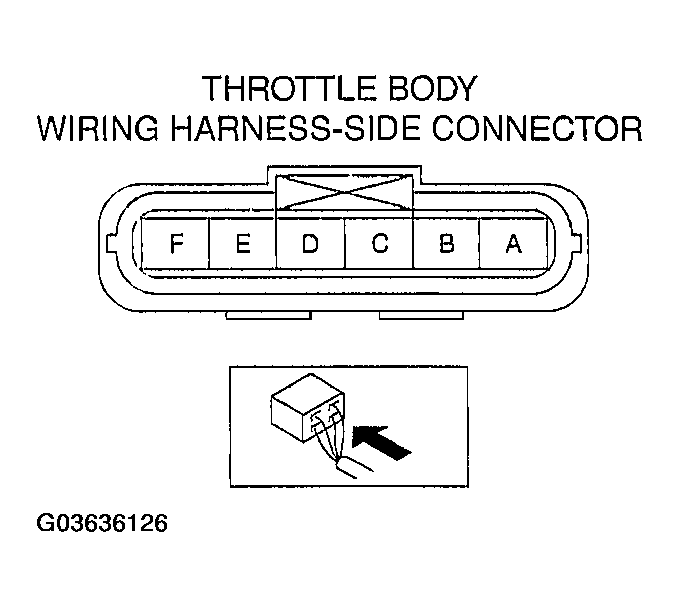

    Fig 1: Identifying Throttle Body Connector
    G03636126Courtesy of MAZDA MOTORS CORP.

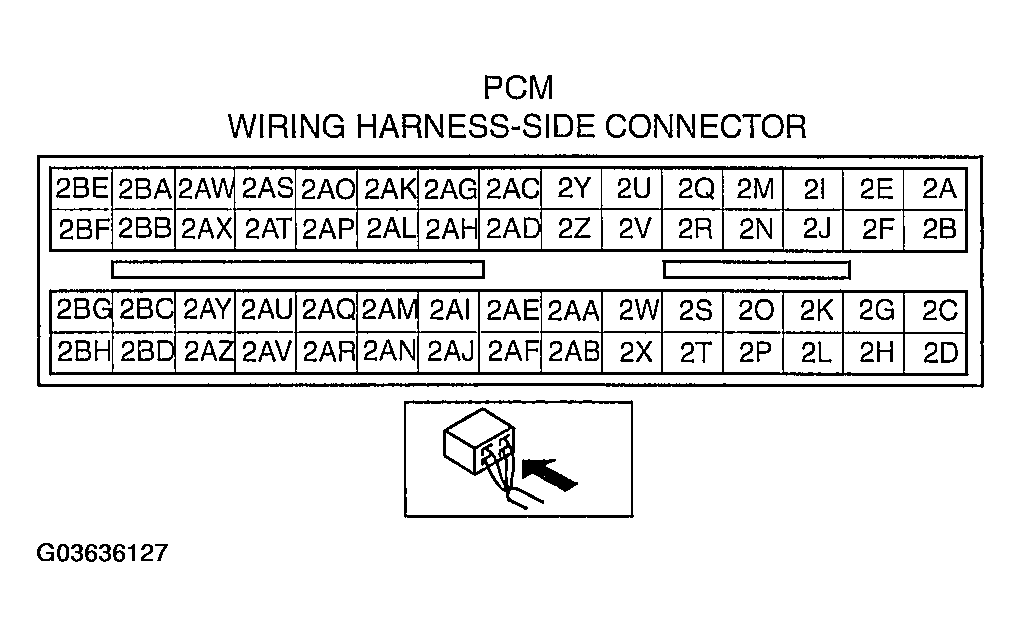

    Fig 2: Identifying PCM Harness Connector
    G03636127Courtesy of MAZDA MOTORS CORP.
