Ignition Coil Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable.
  3. Remove the plug hole plate.

    (See PLUG HOLE PLATE REMOVAL/INSTALLATION )

  4. Remove in the order indicated in the figure.

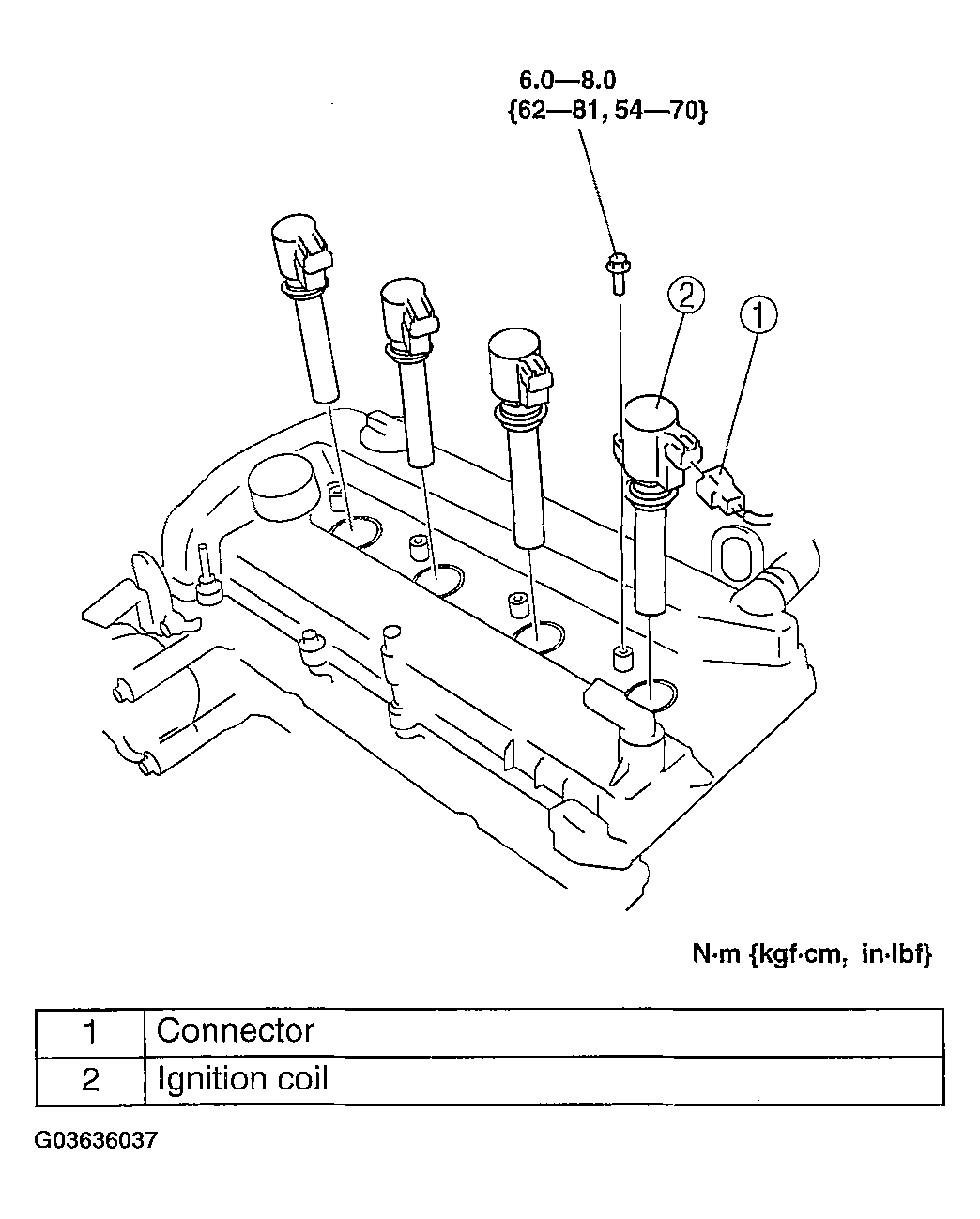

    Fig 1: Ignition Coil Removal/Installation
    G03636037Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
