Normal Scan Data Values

PID/Data Monitor and Record Procedure

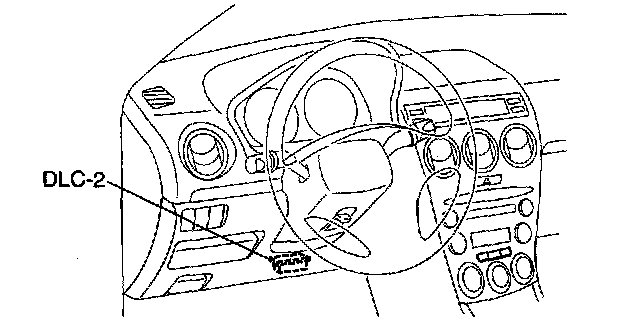

1. Connect WDS or equivalent to the vehicle DLC-2 connector.
2. Access and monitor PIDs using the WDS or equivalent.

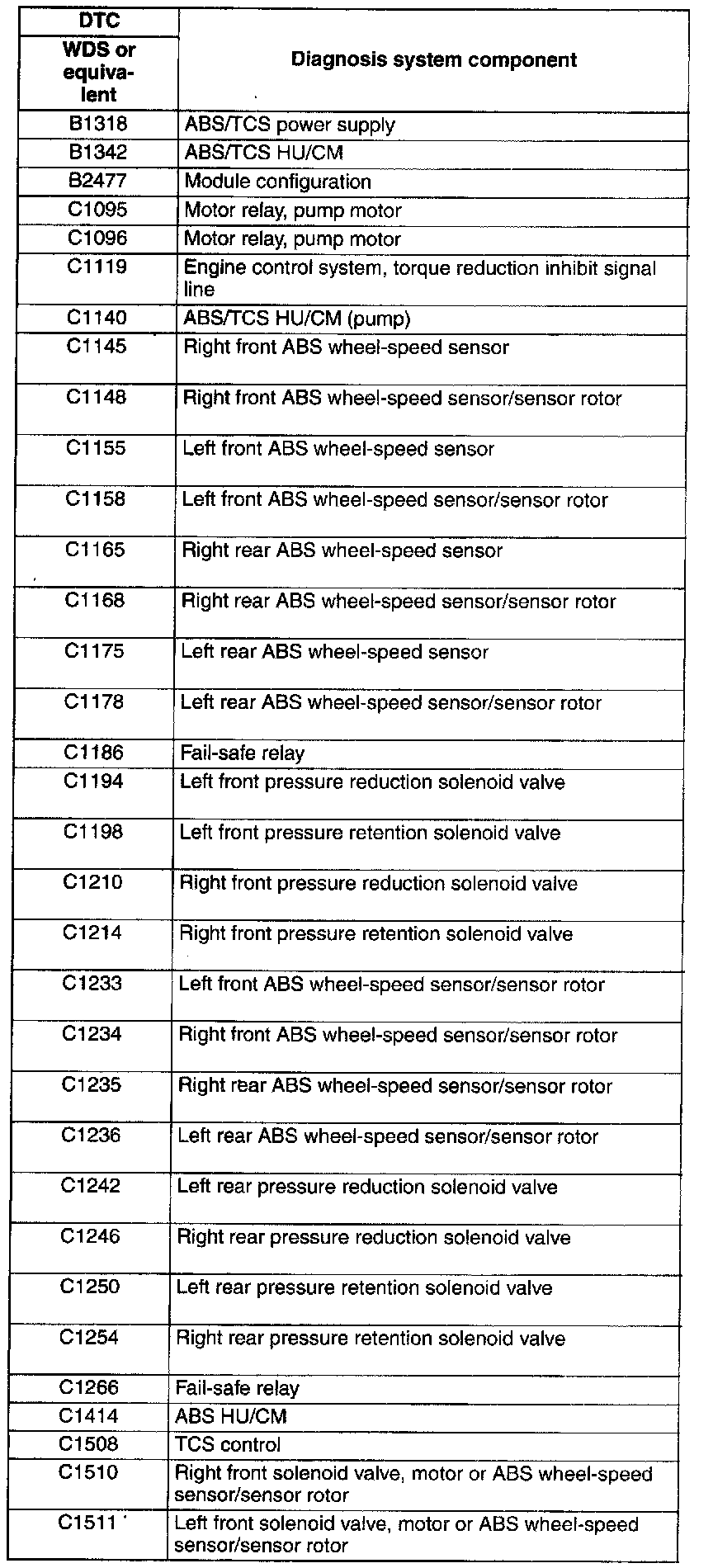

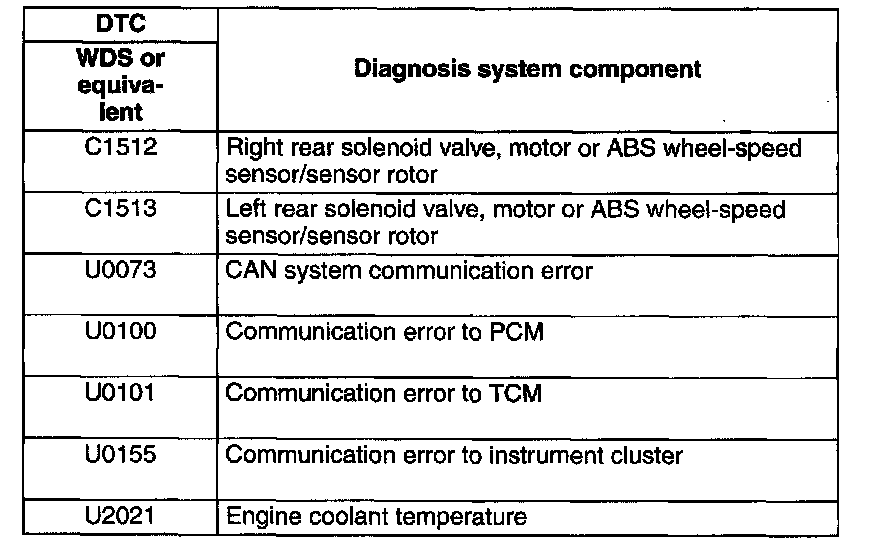

DTC Table
