Replacement

PCM REMOVAL/INSTALLATION

NOTE: For PCM replacement, setup the WDS and perform the PCM configuration.

1. Disconnect the negative battery cable.

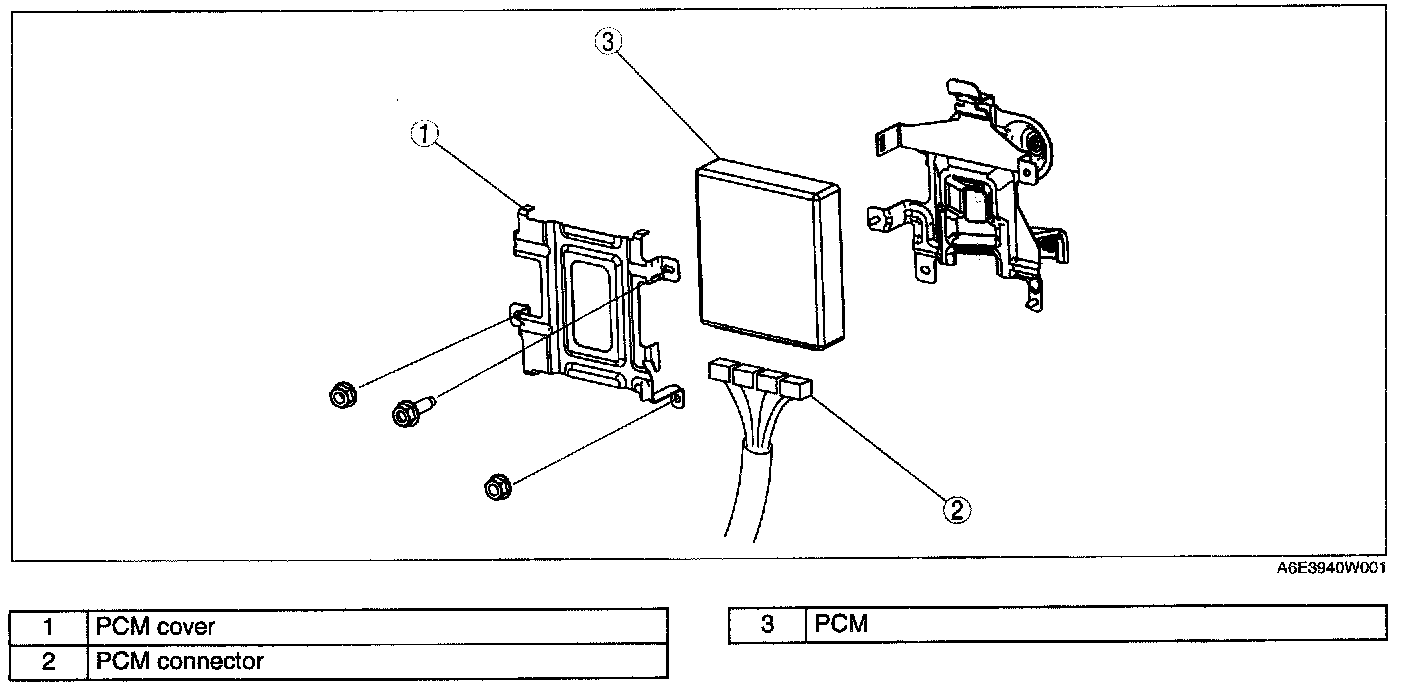

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
