Engine Ignition Specifications - 3.0L
Courtesy of MAZDA MOTORS CORP. ENGINE IGNITION SPECIFICATIONS - 3.0L
| Item |
Specification |
| Base Timing |
10 degrees BTDC |

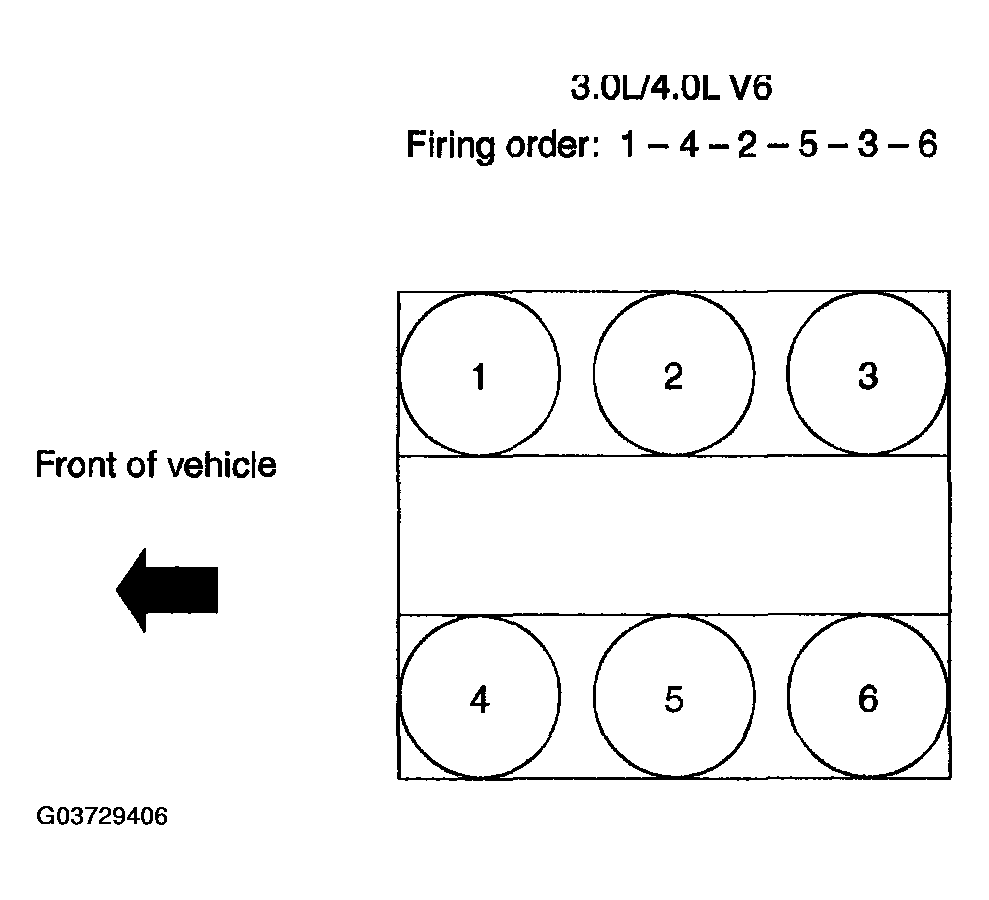

| Firing Order |
1-4-2-5-3-6 |
| Left Side Original Spark Plug |
AWSF32P |
| Right Side Original Spark Plug |
AWSF32PG |
| Replacement Spark Plug |
AWSF32PP (both sides) |
| Spark Plug Gap |
11.07-1.17 mm (0.042-0.046 in) |
