Idle Air Control (IAC) Valve Removal/Installation - 3.0L

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Disconnect the idle air control (IAC) valve electrical connector.

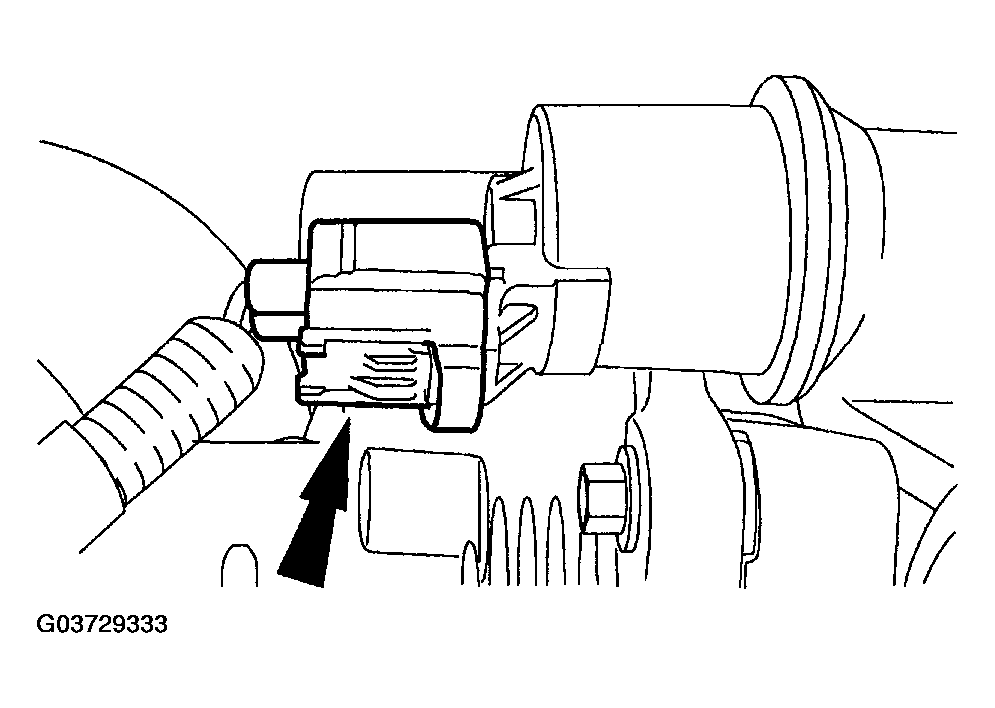

Fig 1: Disconnecting Idle Air Control (IAC) Valve Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the IAC valve and discard the gasket.

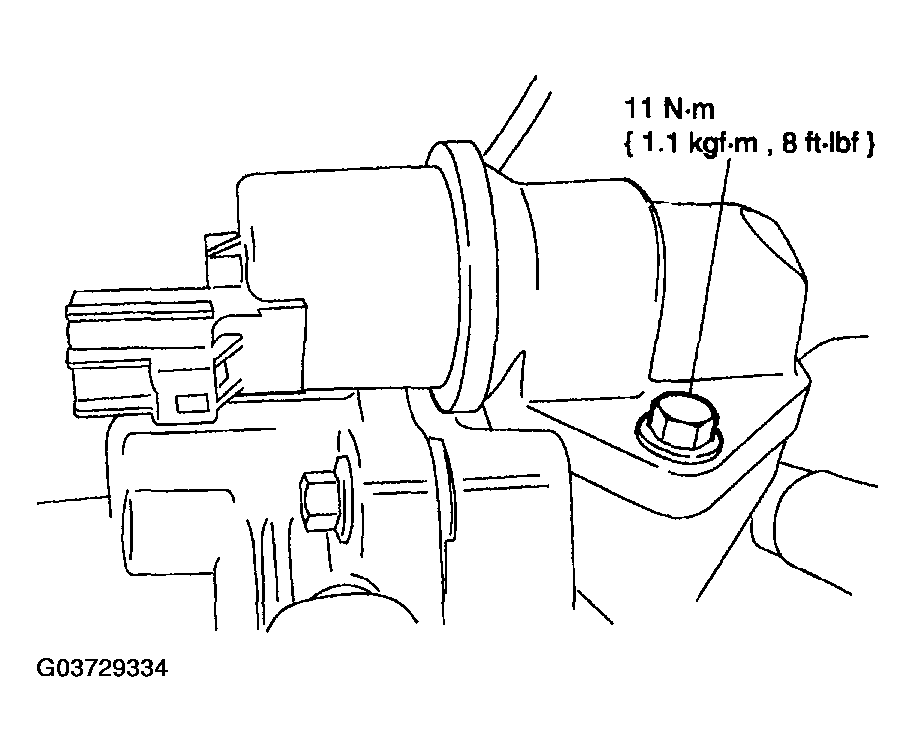

Fig 2: Removing IAC Valve - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Install a new IAC valve gasket.
To install, reverse the removal procedure.
