Outside Mirror Removal/Installation

Remove the front door trim panel; see DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
Remove the outside mirror access water shield.
If necessary, remove the speaker. See SPEAKER FRONT REMOVAL/INSTALLATION .
If equipped, disconnect outside mirror electrical connector.
Remove the nuts (1).
NOTE:
- Feed the outside mirror wiring through the opening in the front door.
Remove the outside mirror (2).

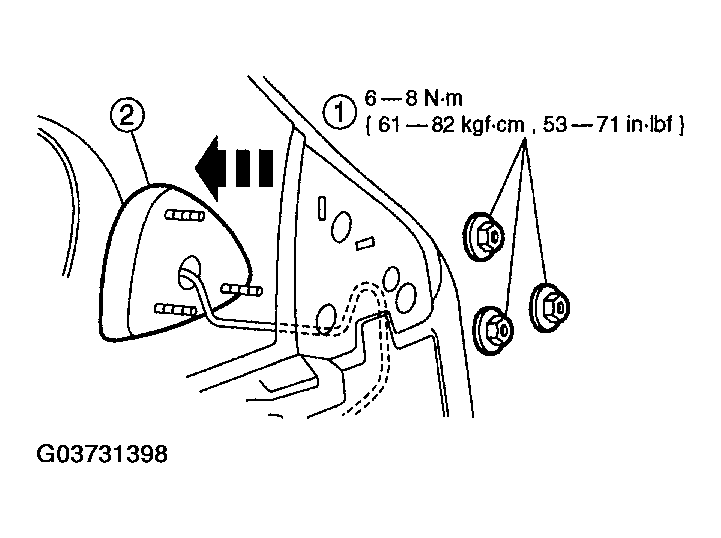

Fig 1: Removing Outside Mirror - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
