Power Window Main Switch Removal/Installation

  1. Remove the two screws and reposition door trim finish panel.
  2. Remove in order shown in illustration.
    1. Screws
    2. Switch plate
    3. Switch

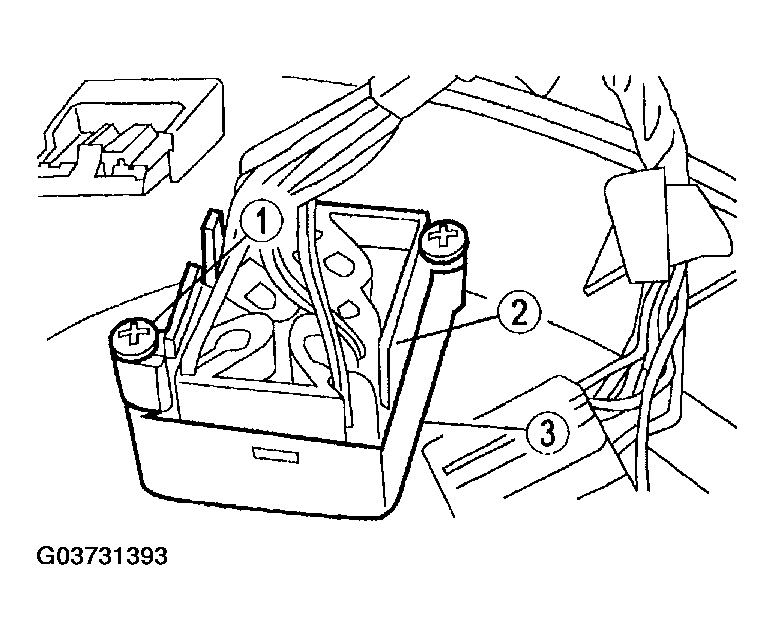

      Fig 1: Identifying Removal Order Of Power Window Main Switch
      G03731393Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.

    Tightening torque

    2 - 3 N.m { 20 - 31 kgf.cm, 18 - 27 in.lbf }
