Windshield Removal/Installation: Notes

Remove the windshield wiper pivot arms. See PIVOT ARM REMOVAL/INSTALLATION .
Remove both A-pillar trim assist handles, if equipped.
Remove both A-pillar trim panels.

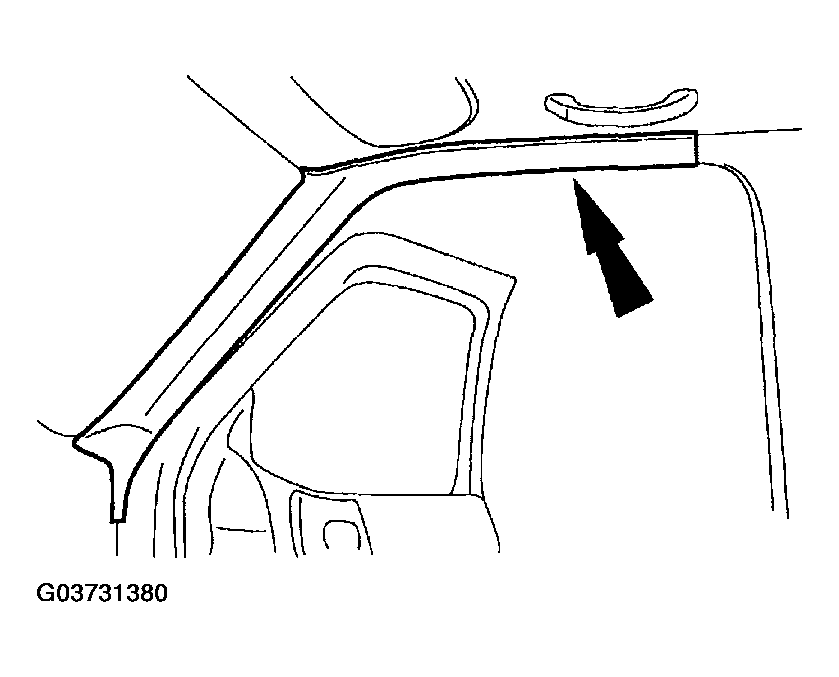

Fig 1: Removing Both A-Pillar Trim Panels
Courtesy of MAZDA MOTORS CORP.
Remove the screws (1), sun visors (2) and disconnect connectors, if necessary.

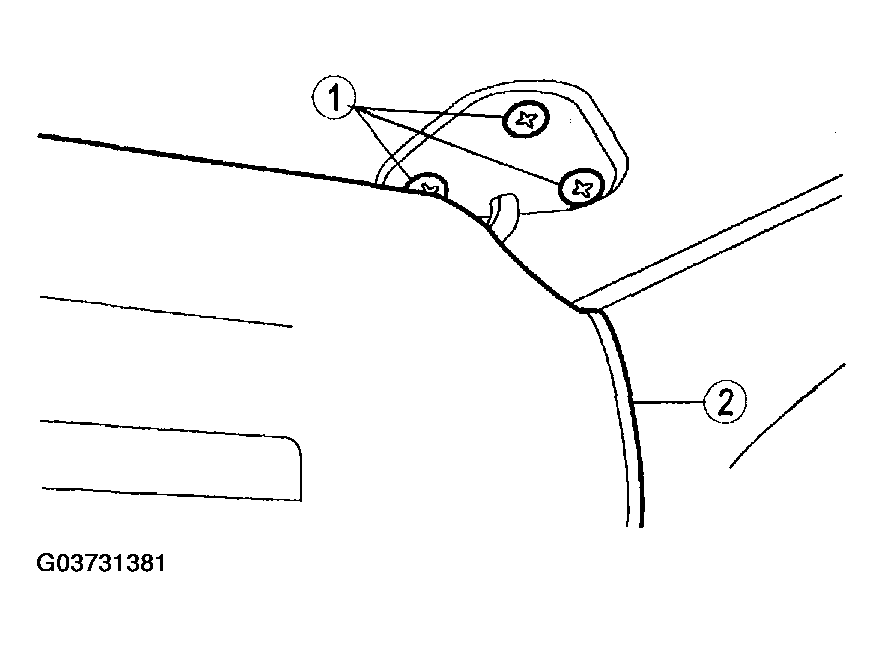

Fig 2: Removing Sun Visors Screws
Courtesy of MAZDA MOTORS CORP.
Remove the inside rear view mirror.
Remove molding (1) and windshield (2). See Windshield Removal Note.

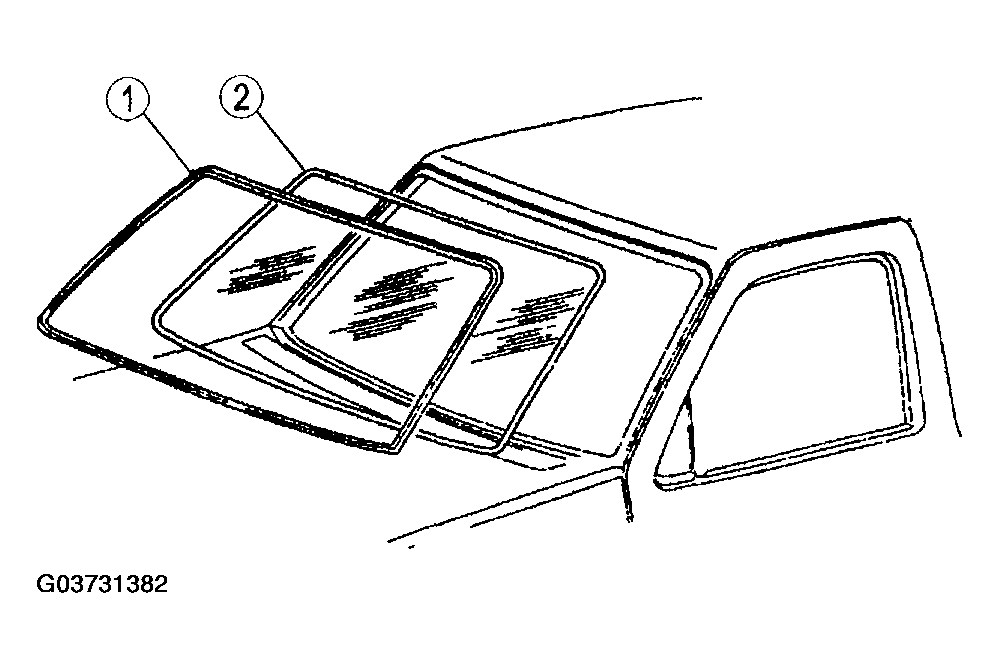

Fig 3: Removing Molding And Windshield
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal. See Windshield Installation Note.
