Right Side Sensor

  1. Remove the right front wheel and tire assembly.
  2. Position aside the right front fender splash shield.

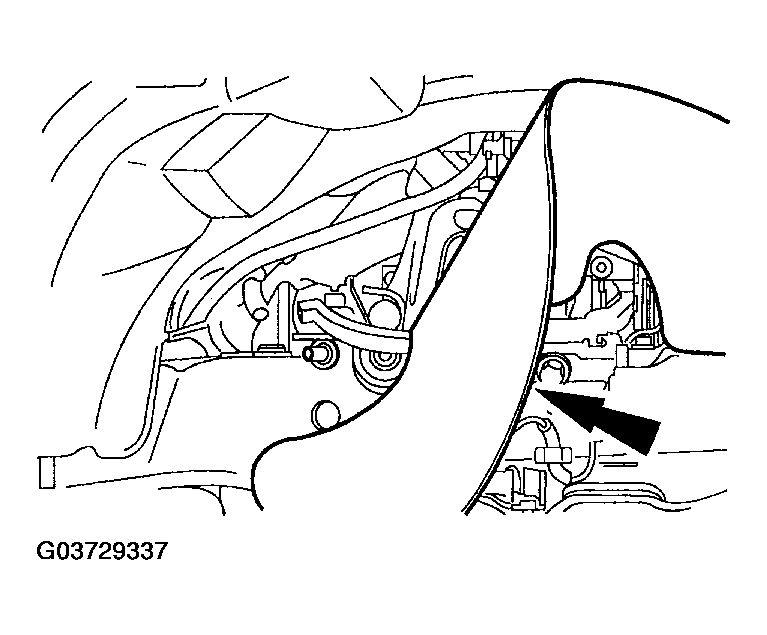

    Fig 1: Positioning Aside Right Front Fender Splash Shield
    G03729337Courtesy of MAZDA MOTORS CORP.
