Knock Sensor (KS) Removal/Installation - 2.3L

  1. Disconnect the negative battery cable.
  2. Disconnect the knock sensor (KS) electrical connector.

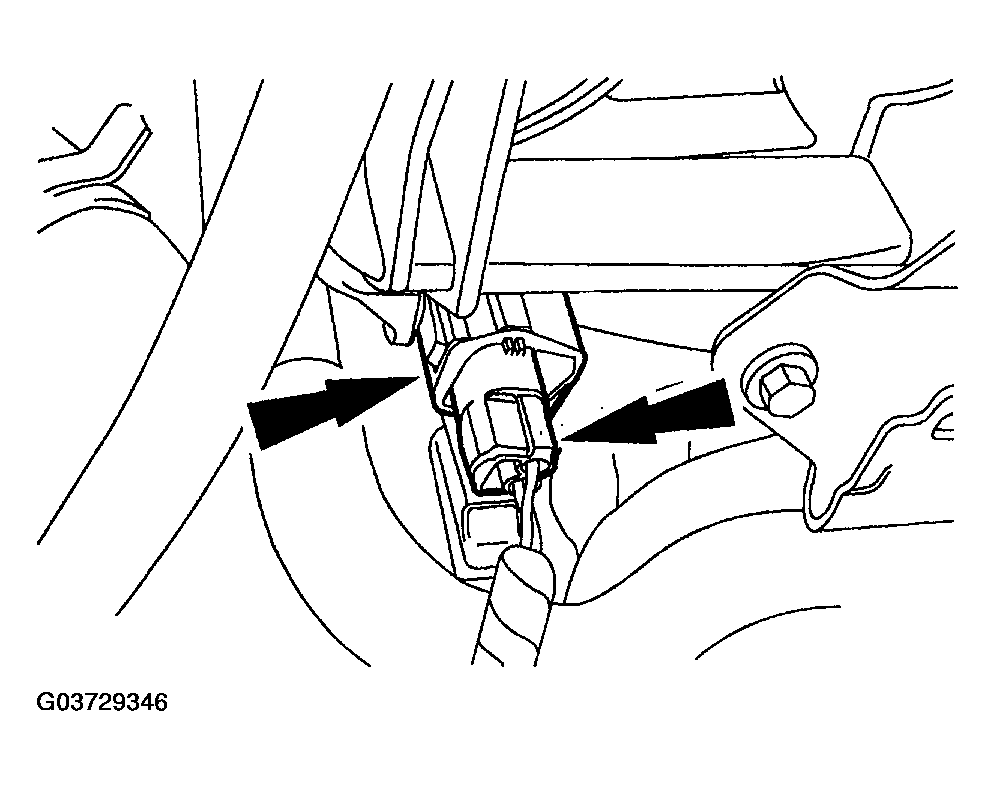

    Fig 1: Disconnecting Knock Sensor (KS) Electrical Connector
    G03729346Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolt and the KS.

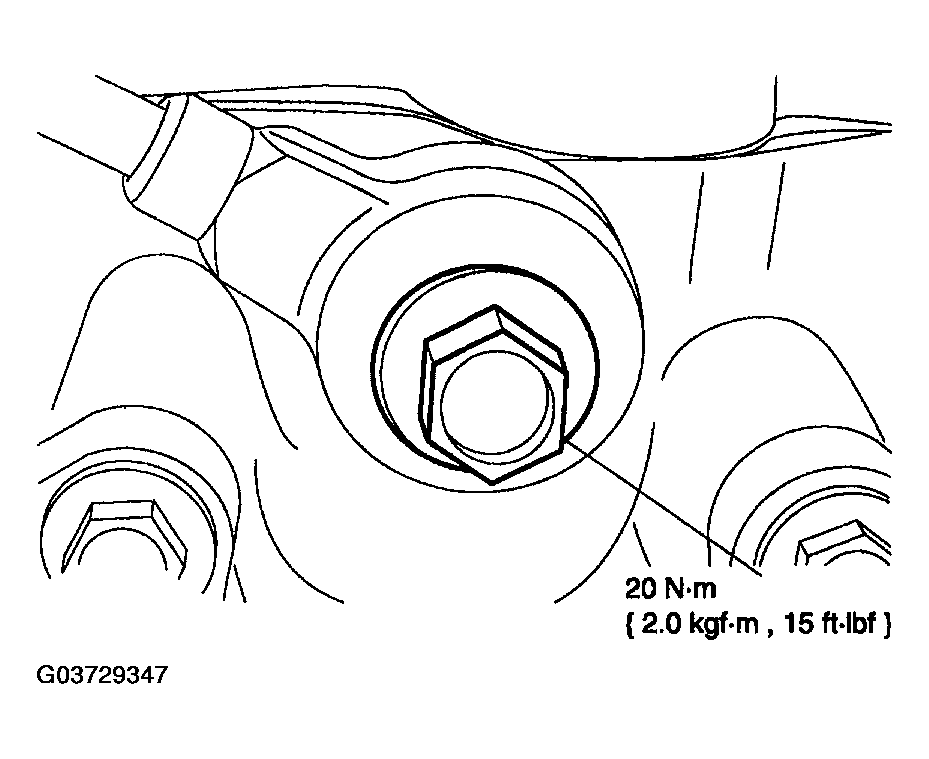

    Fig 2: Removing KS Bolt - With Torque Specification
    G03729347Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
