Knock Sensor (KS) Removal/Installation - 3.0L

  1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
  2. Raise and support the vehicle. See LIFTING .
  3. Disconnect the knock sensor (KS) electrical connector.

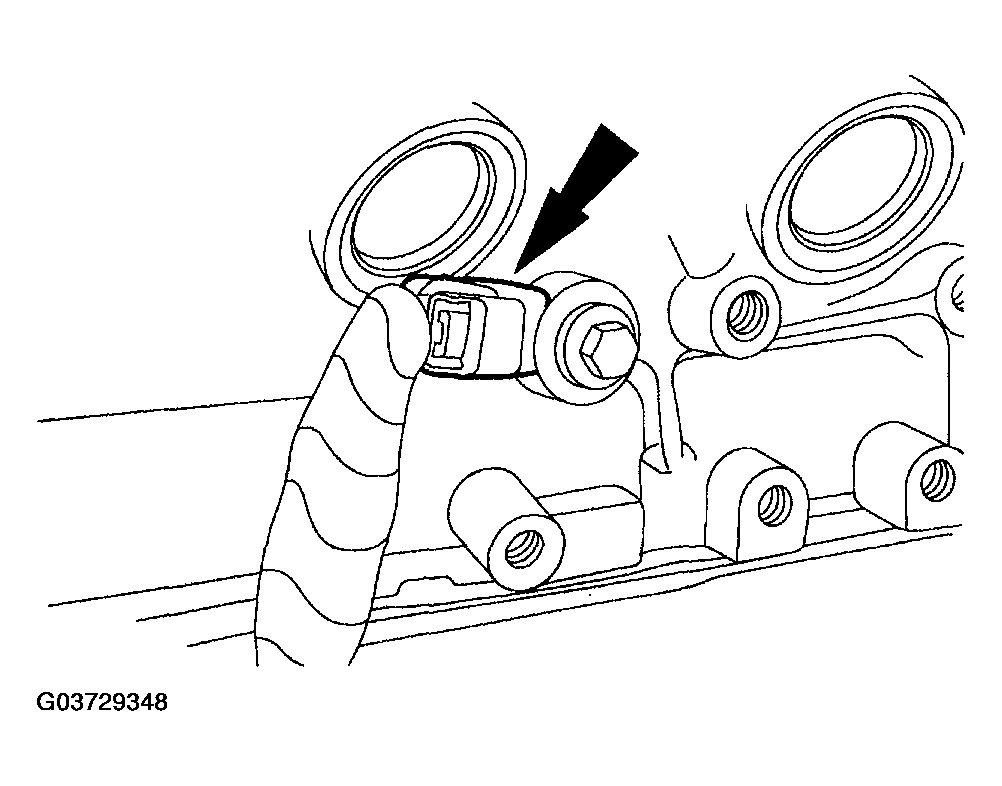

    Fig 1: Disconnecting Knock Sensor (KS) Electrical Connector
    G03729348Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt and the KS.

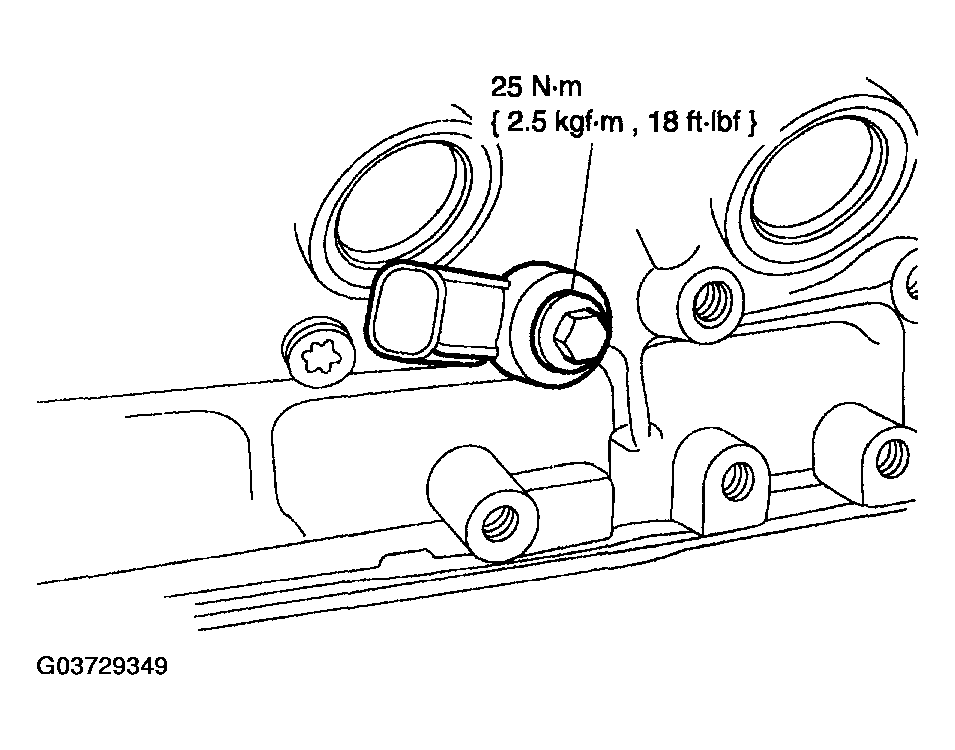

    Fig 2: Removing KS Bolt - With Torque Specification
    G03729349Courtesy of MAZDA MOTORS CORP.
  5. To install, reverse the removal procedure.
