Manifold Absolute Pressure (Map) Sensor Removal/Installation - 2.3L

Disconnect the negative battery cable.
Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

Fig 1: Disconnecting Manifold Absolute Pressure (MAP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and lift the MAP sensor out of the intake manifold.

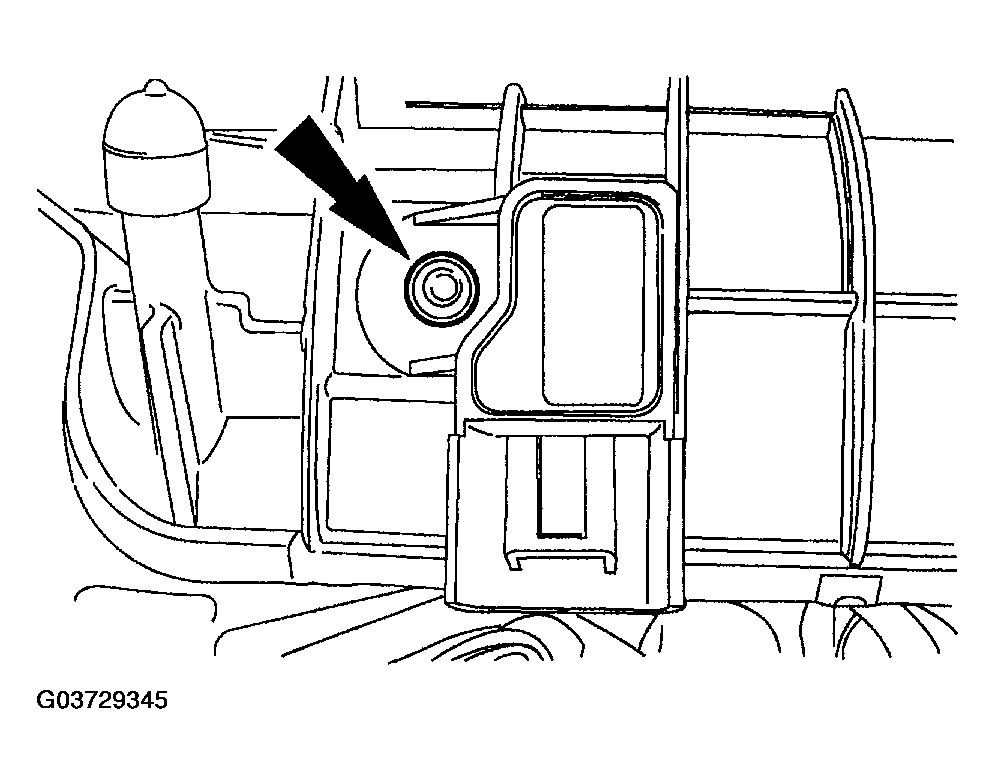

Fig 2: Removing Bolt And Lift Map Sensor
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
