Removal and Installation

Disconnect the negative battery cable. See BATTERY DISCONNECT .

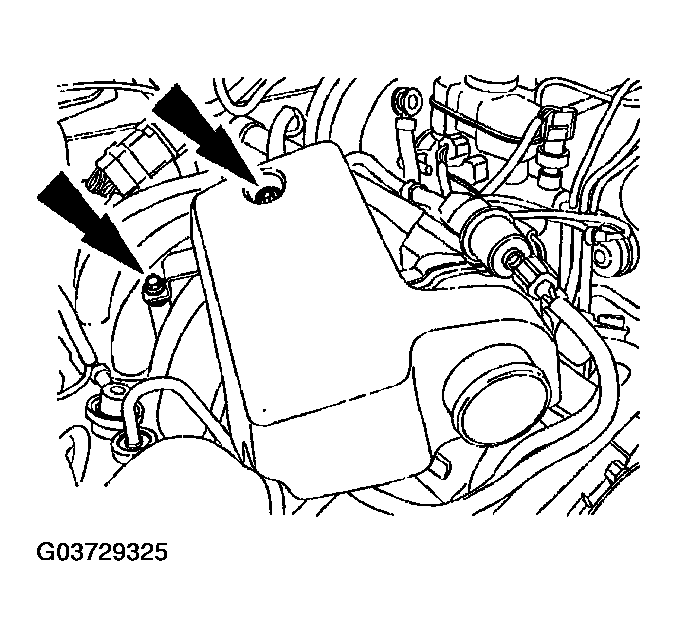

Fig 1: Removing Screws & Accelerator Control Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the screws and remove the accelerator control splash shield.

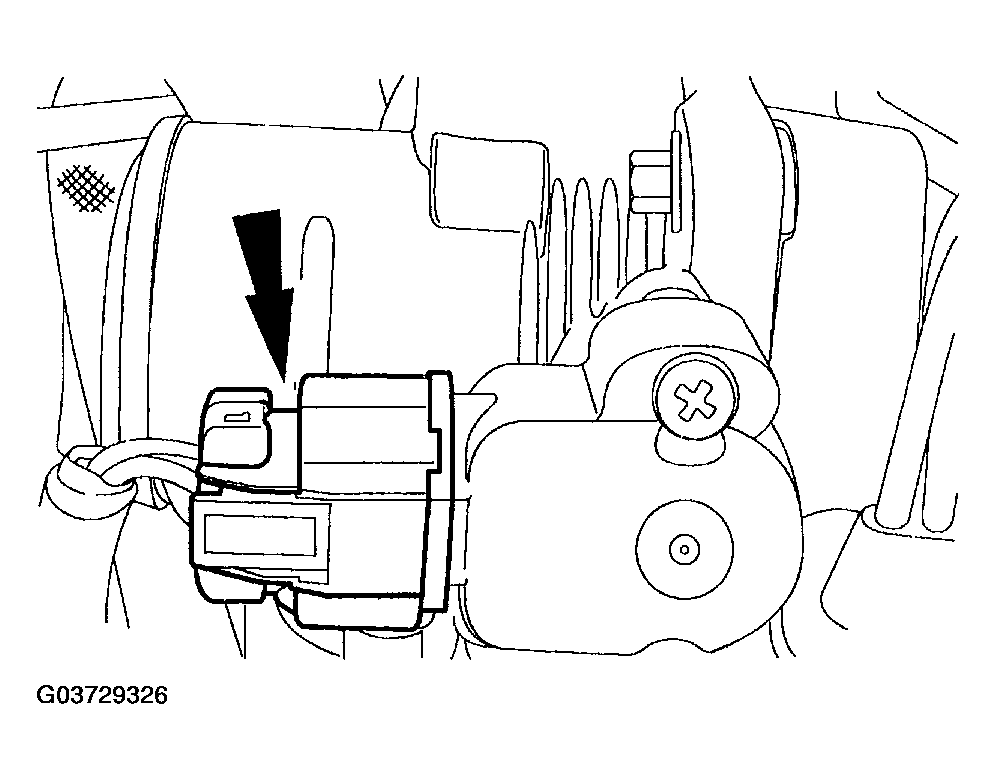

Fig 2: Disconnecting Throttle Position (TP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the throttle position (TP) sensor electrical connector.

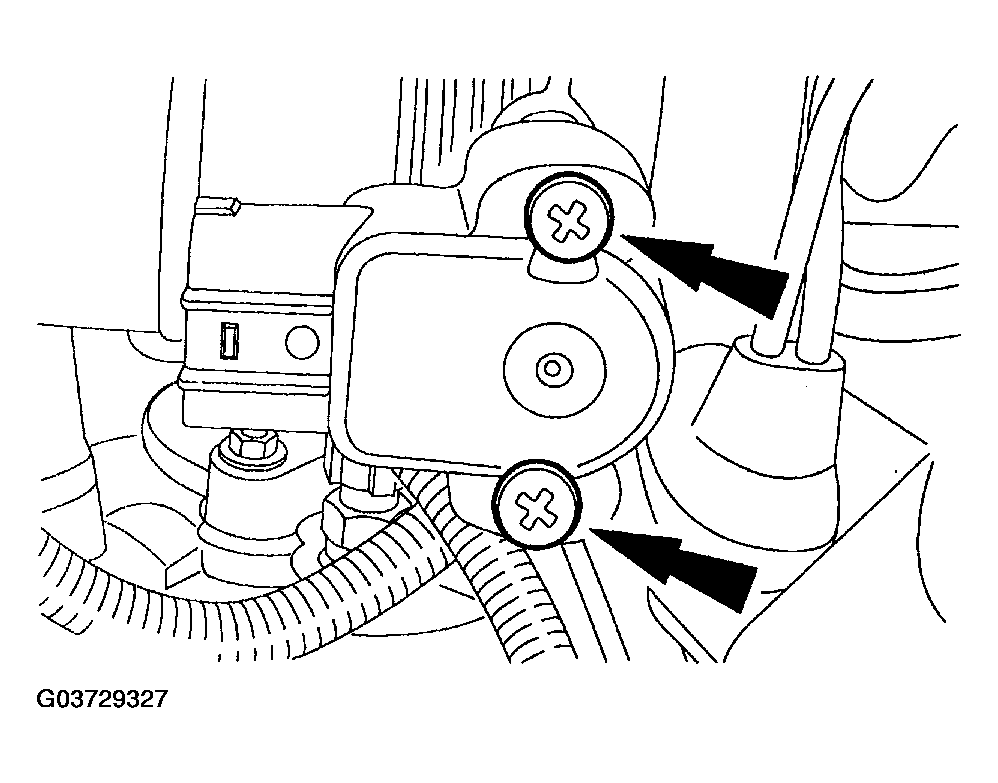

Fig 3: Removing TP Sensor Screws
Courtesy of MAZDA MOTORS CORP.
Remove the two screws and the TP sensor.
NOTE:
- Failure to install the throttle position sensor in this manner may result in excessive idle speeds. Slide the rotary tangs into position over the throttle shaft blade, then rotate the throttle position sensor.
To install, reverse the removal procedure.
