Throttle Position (TP) Sensor Removal/Installation - 4.0L

Remove the accelerator control splash shield.

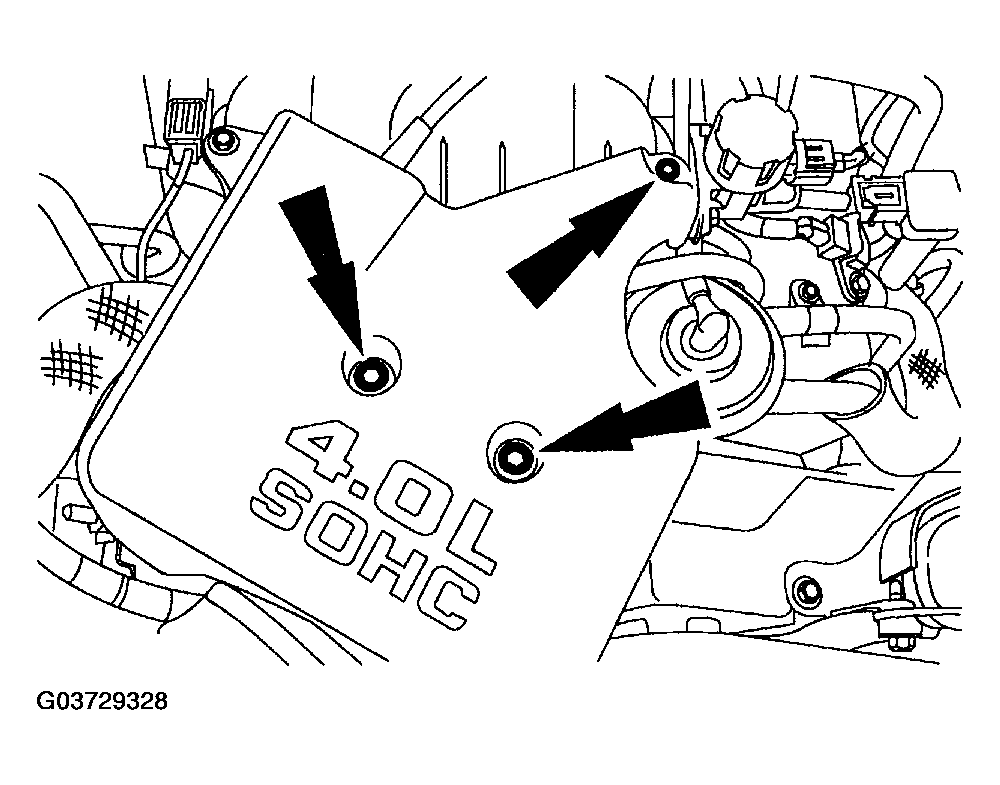

Fig 1: Removing Accelerator Control Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the throttle position (TP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolts and the TP sensor.

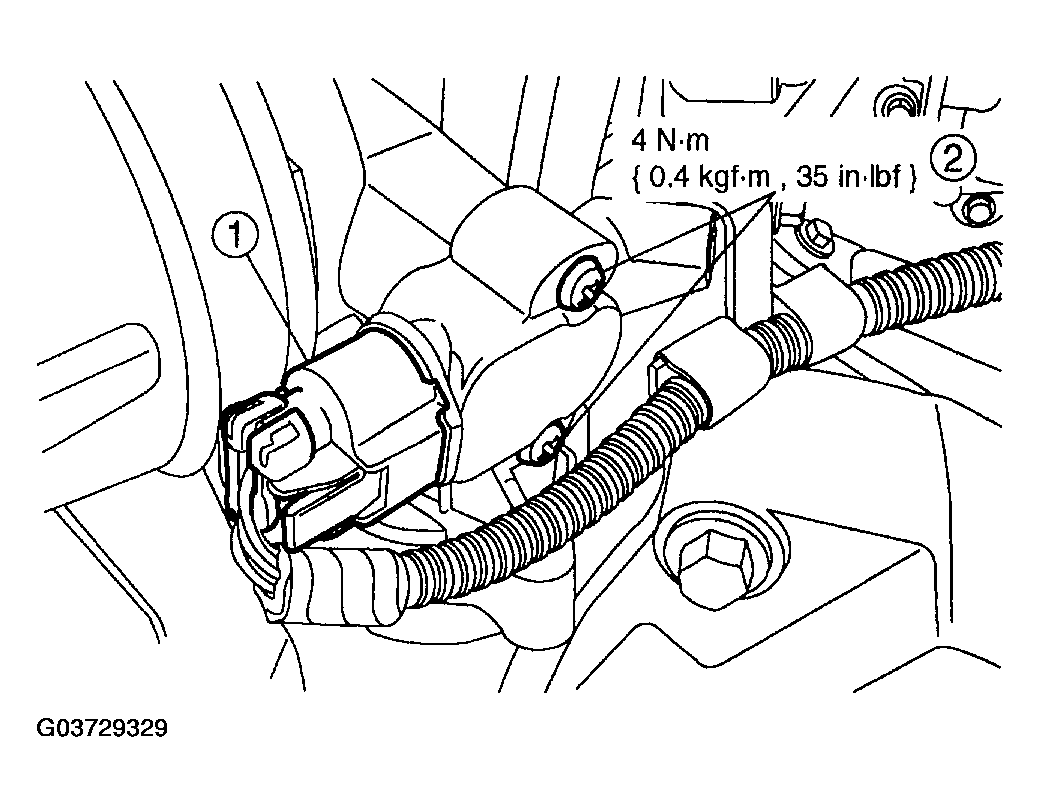

Fig 2: Removing TP Sensor
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
