Ignition Coil Bracket Removal/Installation

Remove the ignition coil from the bracket. See IGNITION COIL PACK REMOVAL/INSTALLATION - 3.0L .
Remove the nut.

Fig 1: Removing Nut - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the nut and position the EGR vacuum regulator solenoid out of the way.

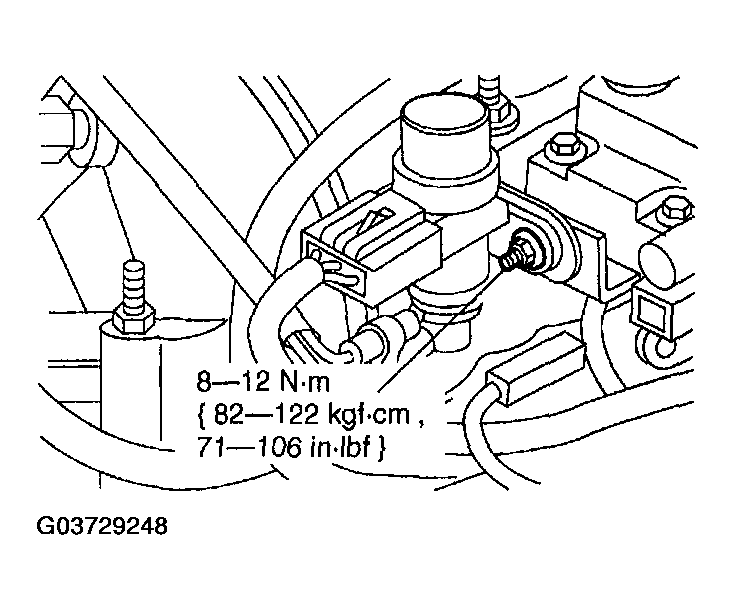

Fig 2: Removing EGR Vacuum Regulator Solenoid Nut - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the nuts and remove the ignition coil mounting bracket from the upper intake manifold.

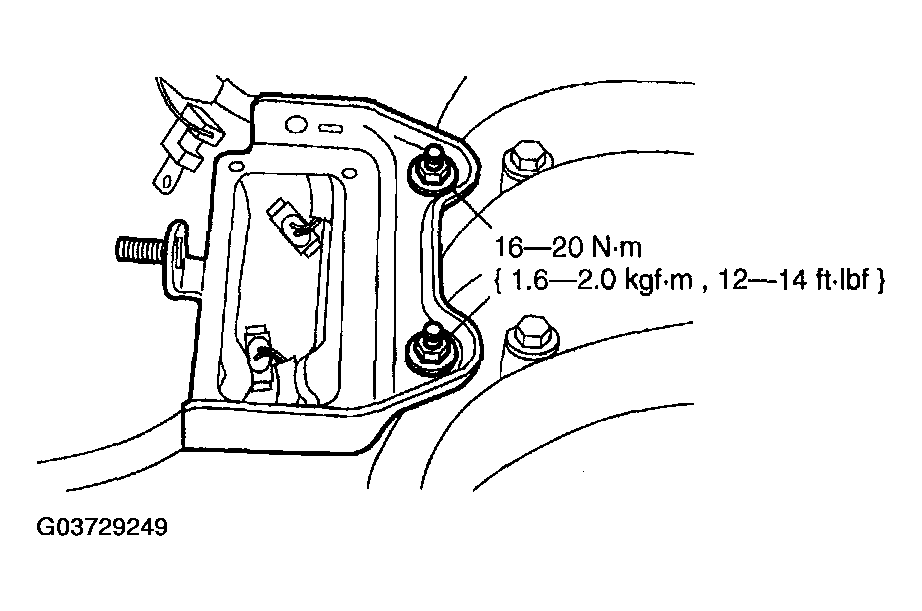

Fig 3: Removing Ignition Coil Mounting Bracket Nut - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
