Power Outside Mirror Switch Removal/Installation

  1. Remove the door trim finish panel; see DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
  2. Depress the locking tabs (1).
  3. Remove the outside mirror switch (2).

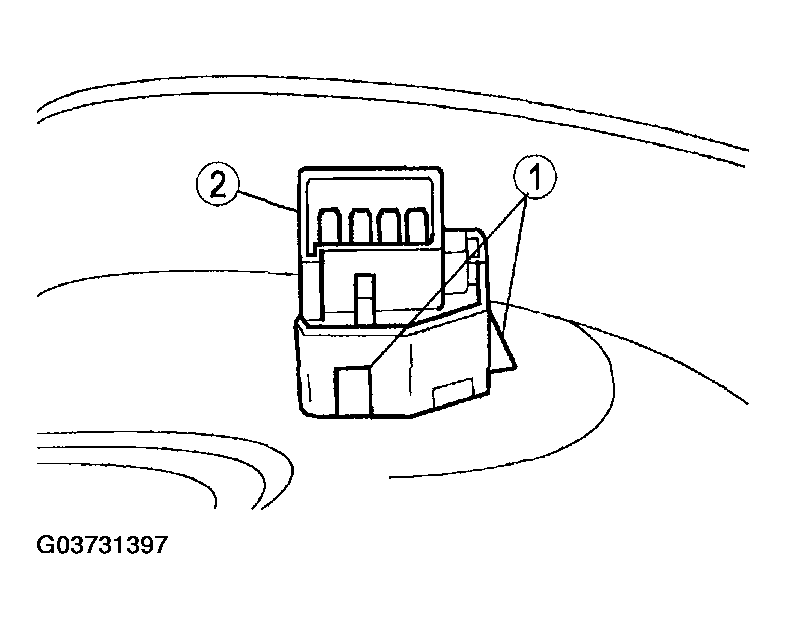

    Fig 1: Removing Power Outside Mirror Switch
    G03731397Courtesy of MAZDA MOTORS CORP.
  4. Install in reverse order of removal.
