Window Glass, Rear Removal/Installation

NOTE:

Remove the lower back trim.
Remove the headliner; See HEADLINER REMOVAL/INSTALLATION .
Remove the 8 nuts.
Remove the rear window glass.
Install the rear window glass (1).
Tighten the 8 nuts (2).
Tightening torque

2 N.m { 20 kgf.cm, 18 in.lbf}

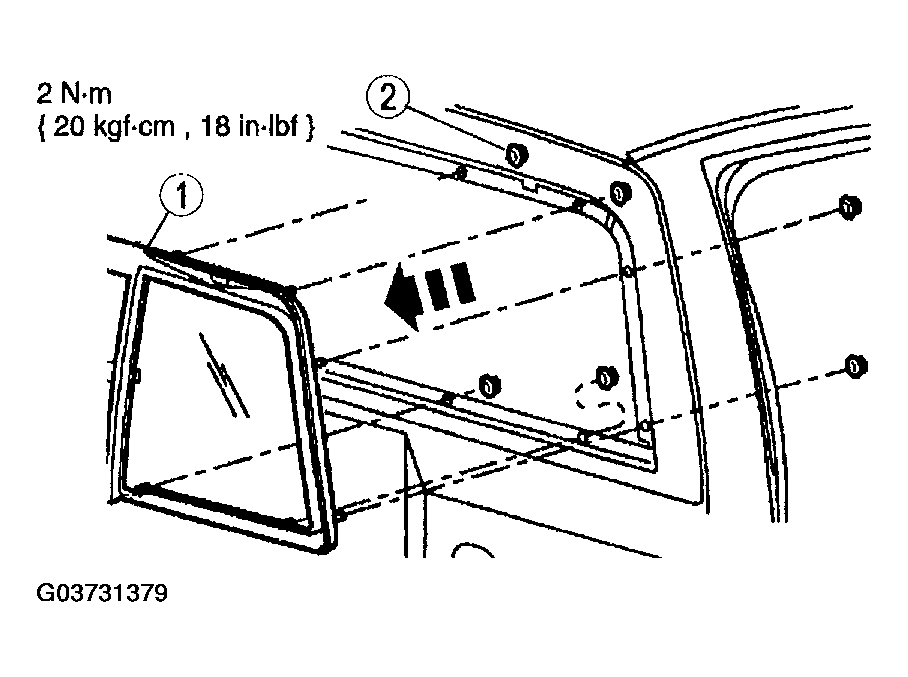

Fig 1: Installing Rear Window Glass - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Clean the area around the rear window glass.
- Test the rear window glass for water leaks.
Install the headliner; See HEADLINER REMOVAL/INSTALLATION .
Install the lower back trim.
