Crankshaft Position (CKP) Sensor Removal/Installation - 2.3L: Installation

NOTE:

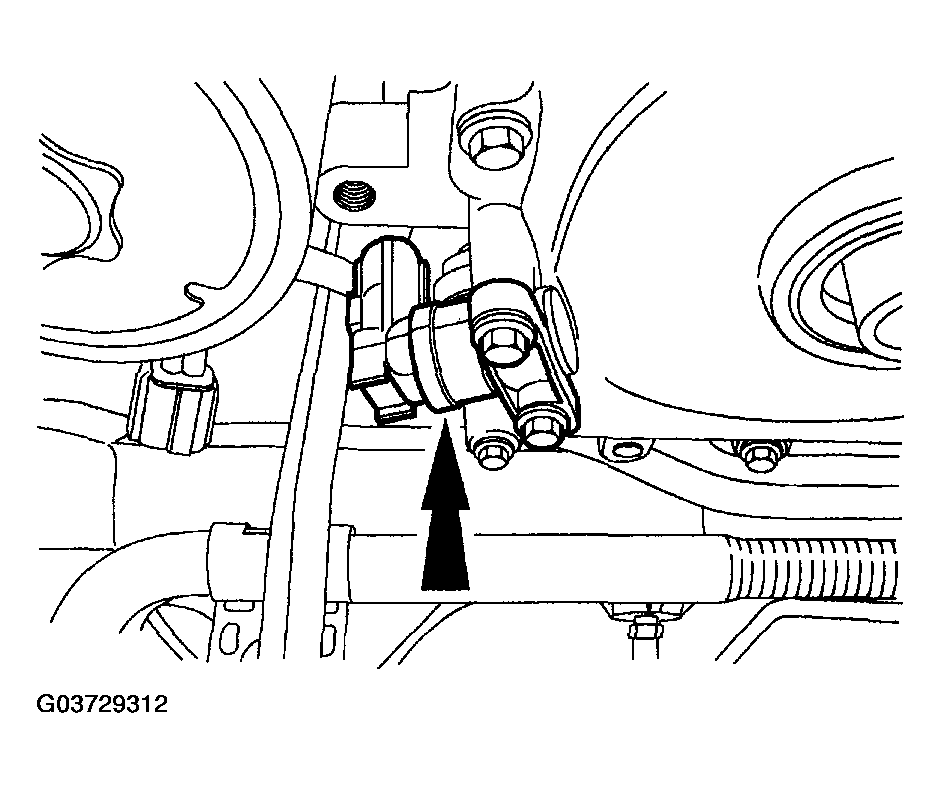

Install a new CKP, but do not tighten the bolts at this time.

Fig 1: Installing CKP
Courtesy of MAZDA MOTORS CORP.

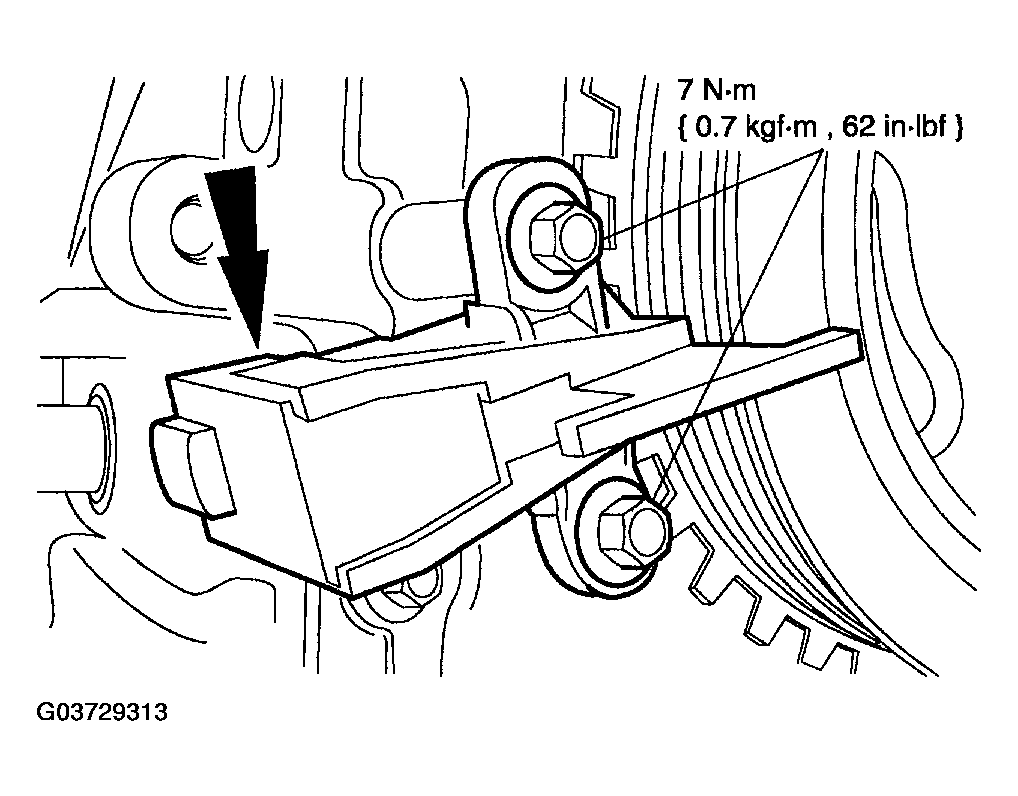

Adjust the CKP with the Crankshaft Position Sensor Alignment Jig and tighten the bolts.

Fig 2: Adjusting CKP With Crankshaft Position Sensor Alignment Jig - With Torque Specification
Courtesy of MAZDA MOTORS CORP.

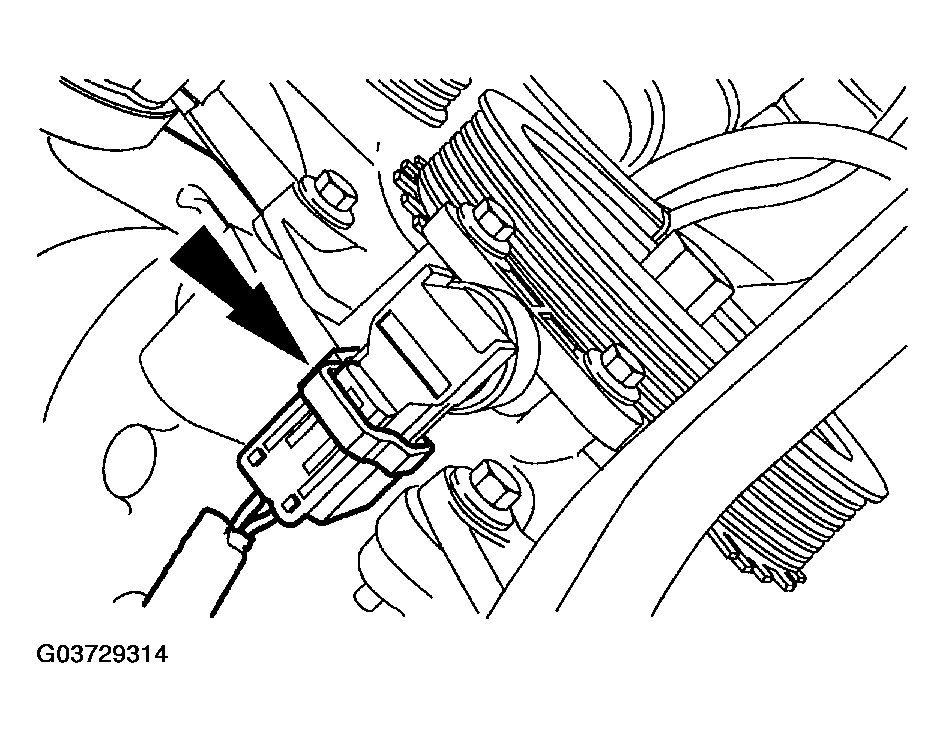

Connect the CKP electrical connector.

Fig 3: Connecting CKP Electrical Connector
Courtesy of MAZDA MOTORS CORP.

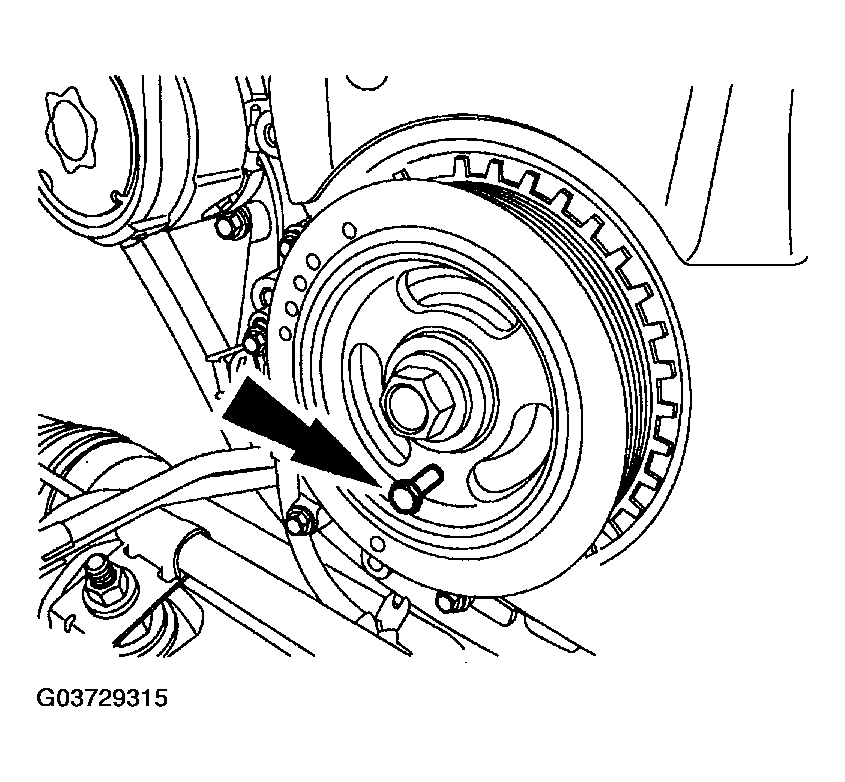

Remove the M6 bolt.

Fig 4: Removing M6 Bolt
Courtesy of MAZDA MOTORS CORP.

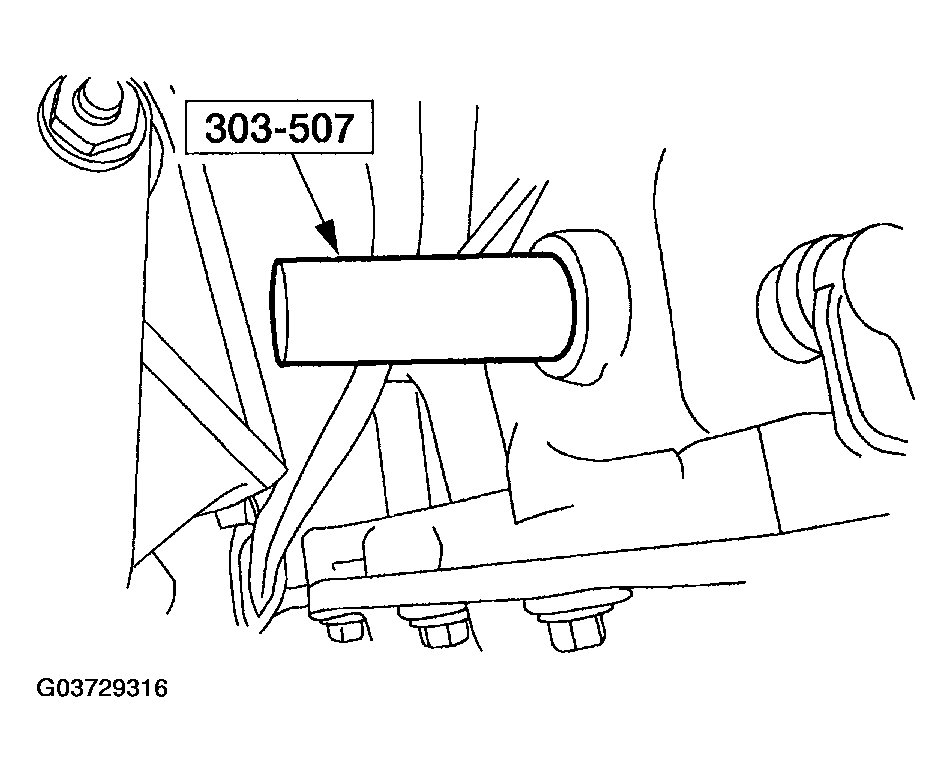

Remove the special tool.

Fig 5: Removing Special Tool
Courtesy of MAZDA MOTORS CORP.

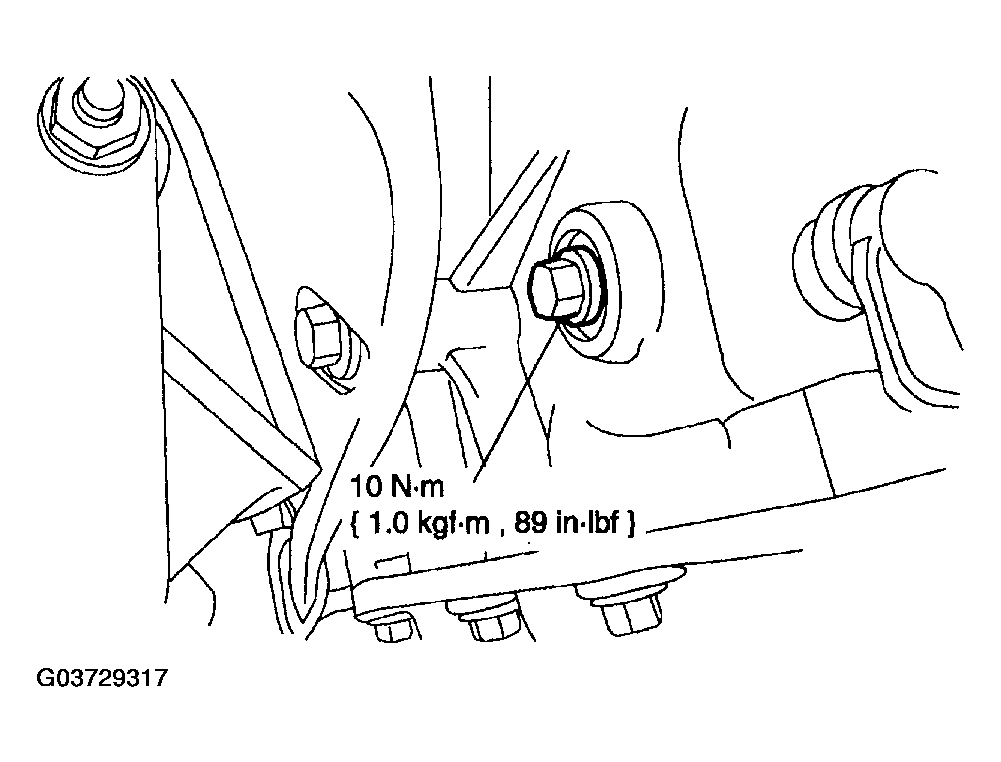

Install the plug for the crankshaft timing peg.

Fig 6: Installing Crankshaft Timing Peg Plug - With Torque Specification
Courtesy of MAZDA MOTORS CORP.

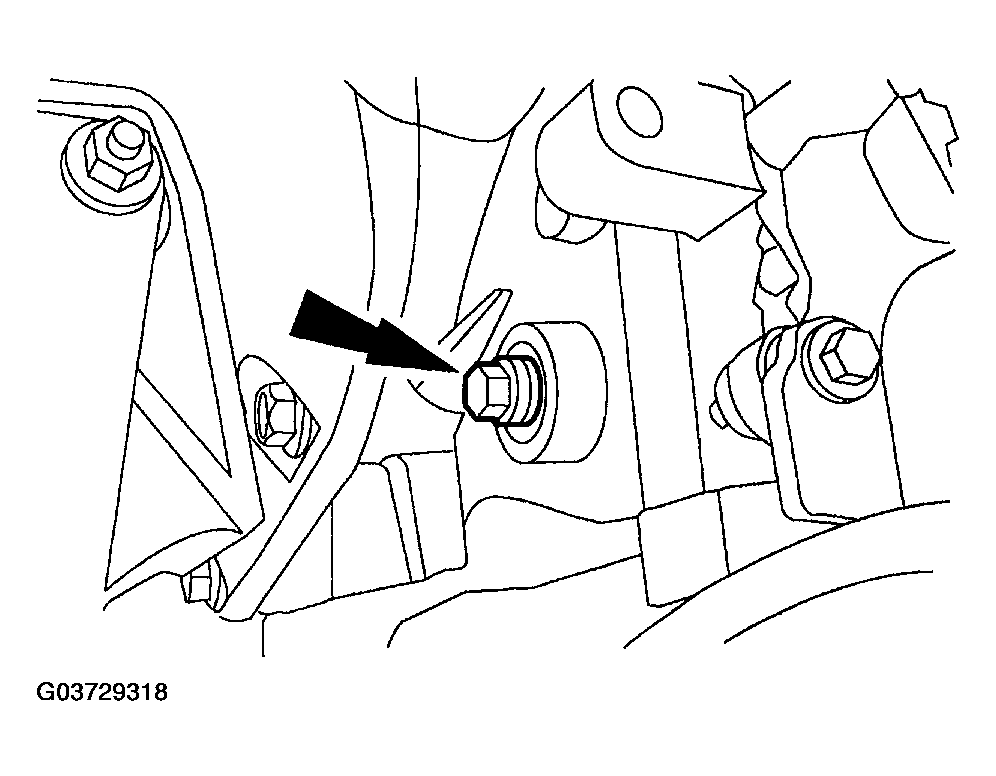

Fig 7: Identifying Bolt
Courtesy of MAZDA MOTORS CORP.
