Idle Air Control (IAC) Valve Removal/Installation - 4.0L

Remove the accelerator control splash shield.

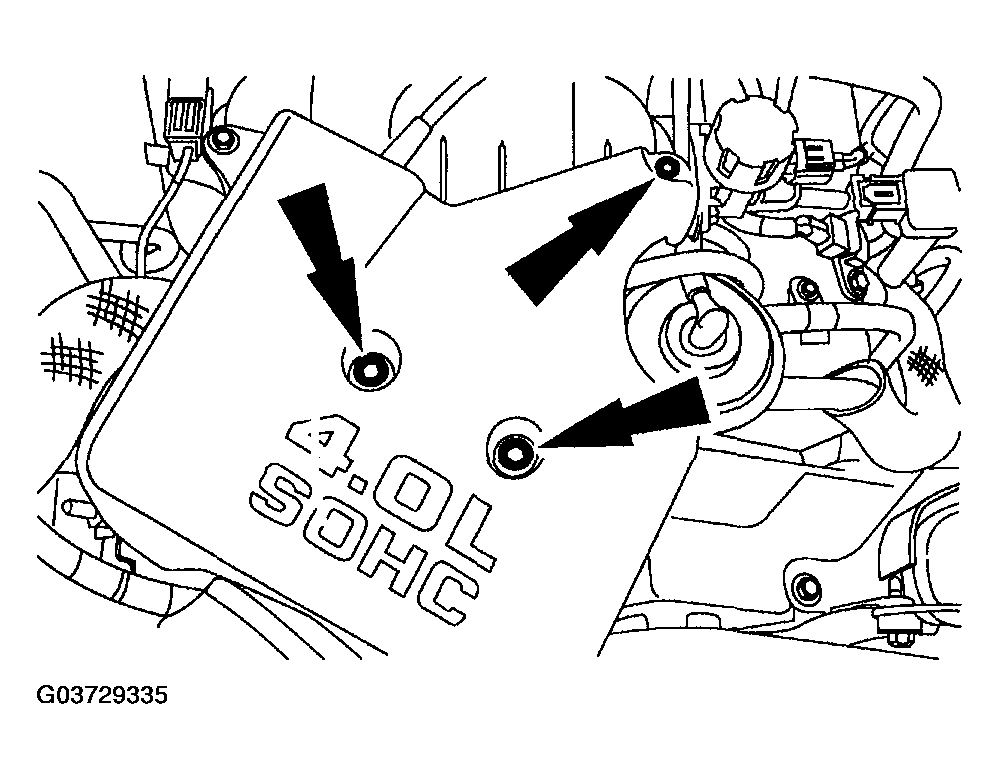

Fig 1: Removing Accelerator Control Splash Shield
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector. Remove the bolts and the idle air control (IAC) valve.

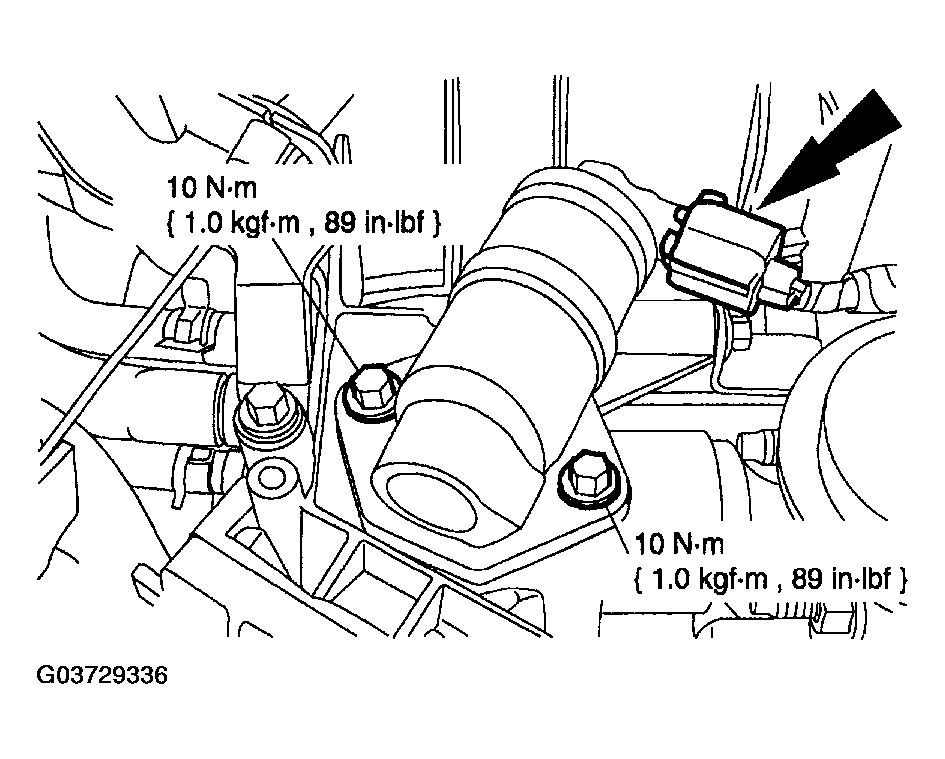

Fig 2: Removing IAC Valve - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Install a new IAC gasket.
To install, reverse the removal procedure.
