Fuel Filler Pipe Removal/Installation

WARNING:

Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and can be ignited, resulting in possible personal injury.

Fuel in the fuel system remains under high pressure even when the engine is not running. Before repairing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

Relieve fuel system pressure.
Disconnect the fuel tank filler pipes from the fuel tank.
- Loosen the fuel filler hose clamps.
- Disconnect the fuel tank filler pipes from the fuel tank filler pipe hoses.

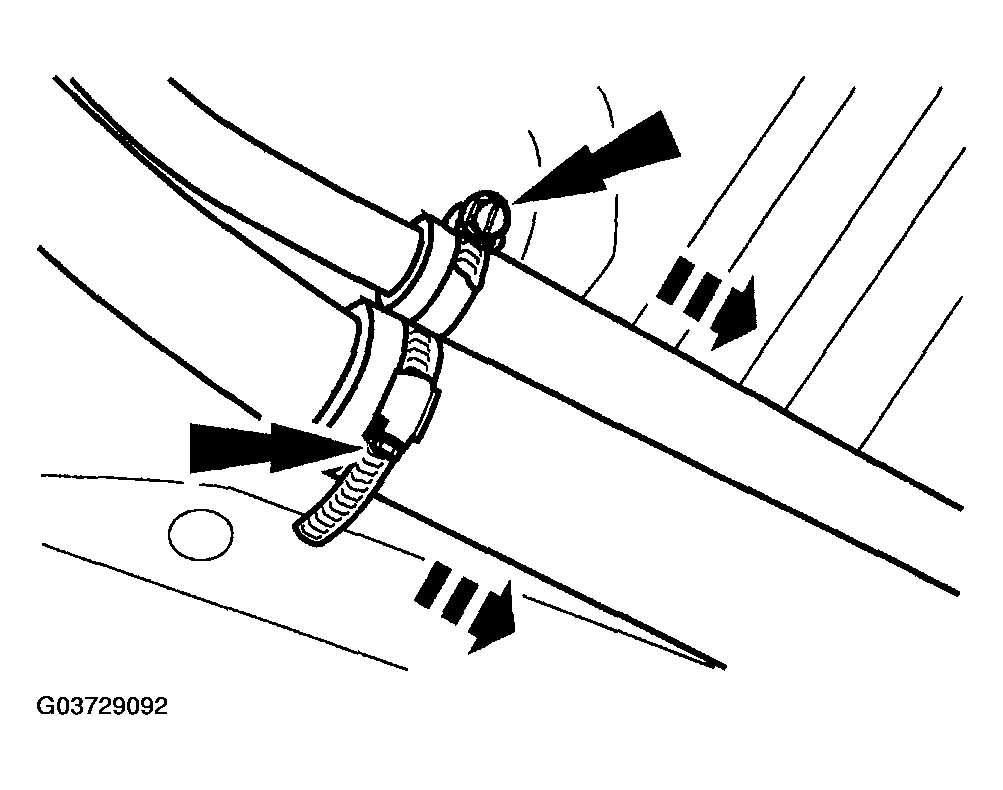

  Fig 1: Disconnecting Fuel Tank Filler Pipes
  Courtesy of MAZDA MOTORS CORP.
Remove the fuel tank filler pipe.
- Remove the screws.
- Remove the fuel tank filler pipe.

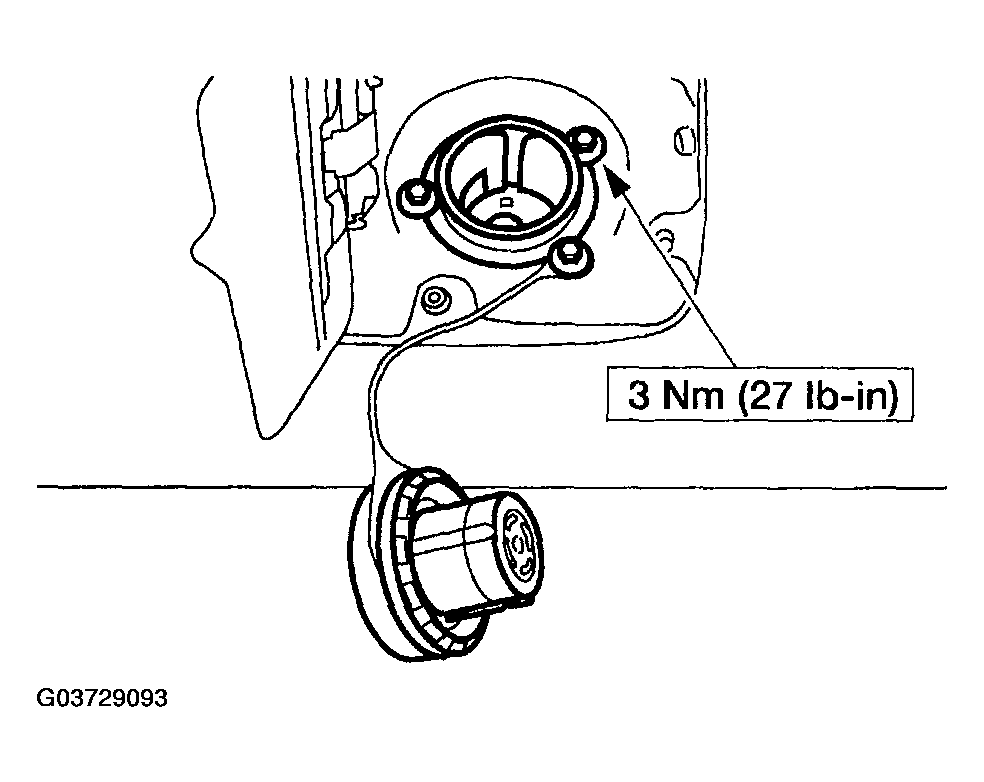

  Fig 2: Removing Fuel Tank Filler Pipe - With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
