Engine Ignition Specifications - 4.0L
Courtesy of MAZDA MOTORS CORP. ENGINE IGNITION SPECIFICATIONS - 4.0L
| Item |
Specification |
| Timing |
Not Adjustable |

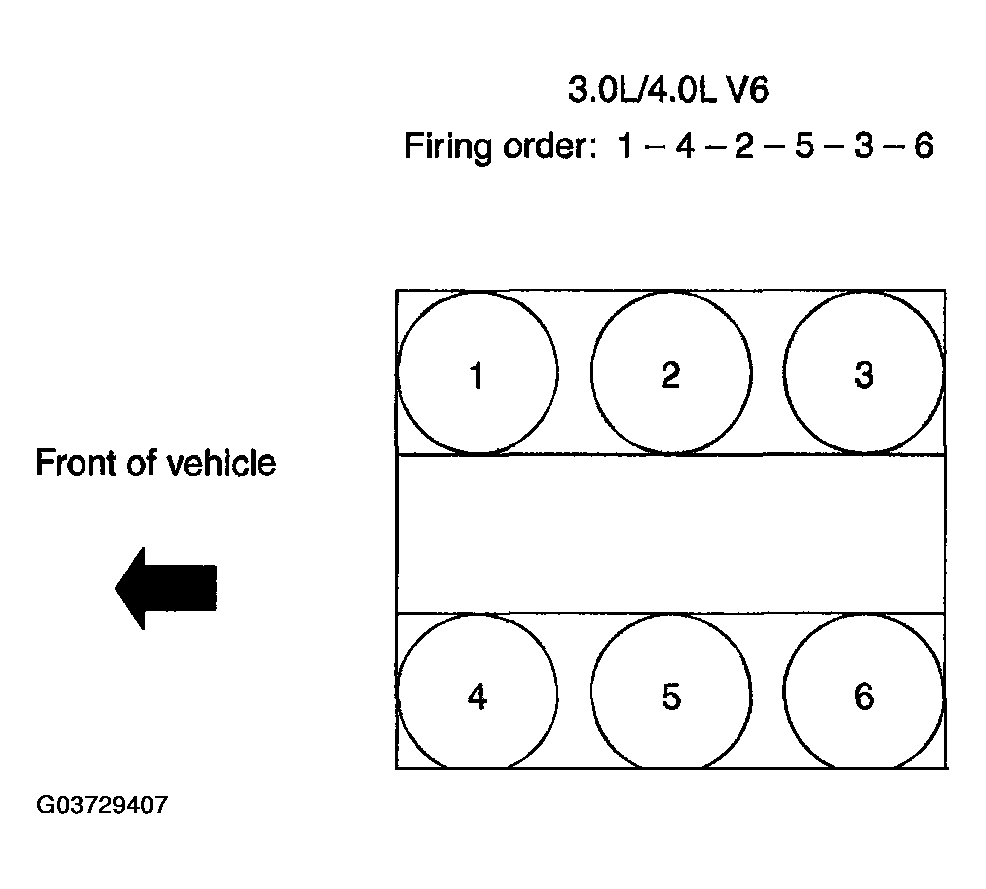

| Firing Order |
1-4-2-5-3-6 |
| Right Side Original Spark Plug |
AGSF-22PG |
| Left Side Original Spark Plug |
AGSF-22P |
| Replacement Spark Plug (Either Side) |
ZZN2-18-110 or AGSF-22PP |
| Spark Plug Gap |
1.57-1.73mm (0.061-0.068 in) |
