Generator Removal/Installation - 2.3L

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner outlet tube. See AIR CLEANER OUTLET PIPE REMOVAL/INSTALLATION - 2.3L .
  3. Remove the accessory drive belt. See DRIVE BELT REMOVAL/INSTALLATION - 2.3L .
  4. Remove the bolts and position the generator aside.

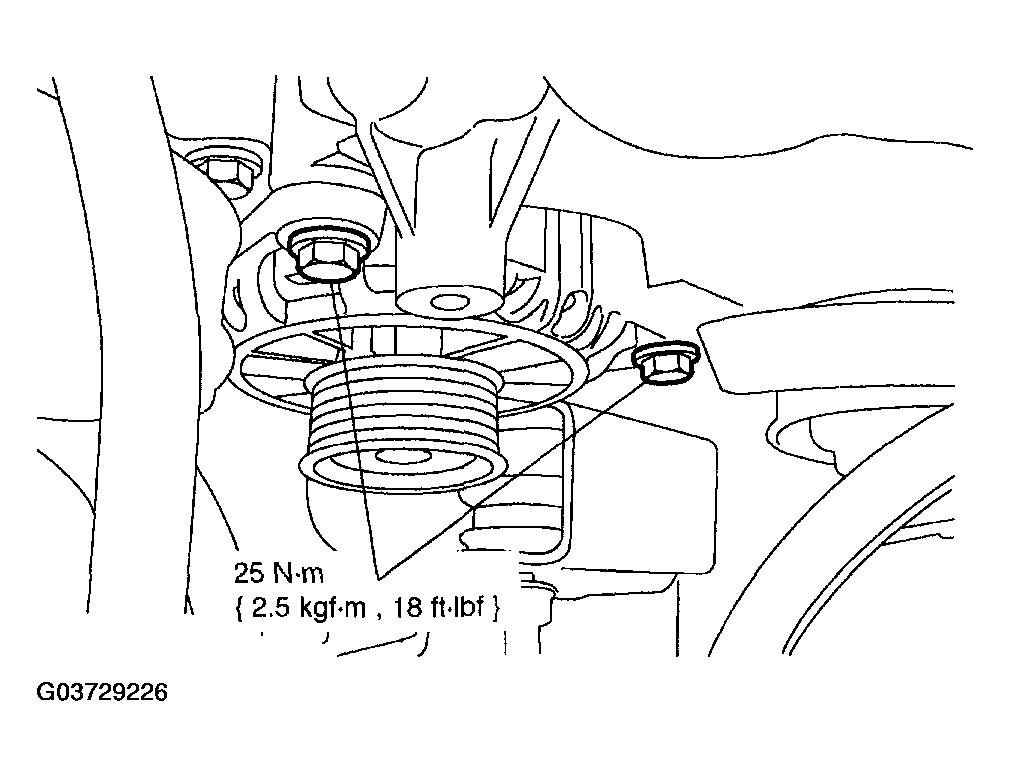

    Fig 1: Removing Bolts - With Torque Specification
    G03729226Courtesy of MAZDA MOTORS CORP.
  5. Remove the generator.
    1. Remove the nut and disconnect the electrical connectors.

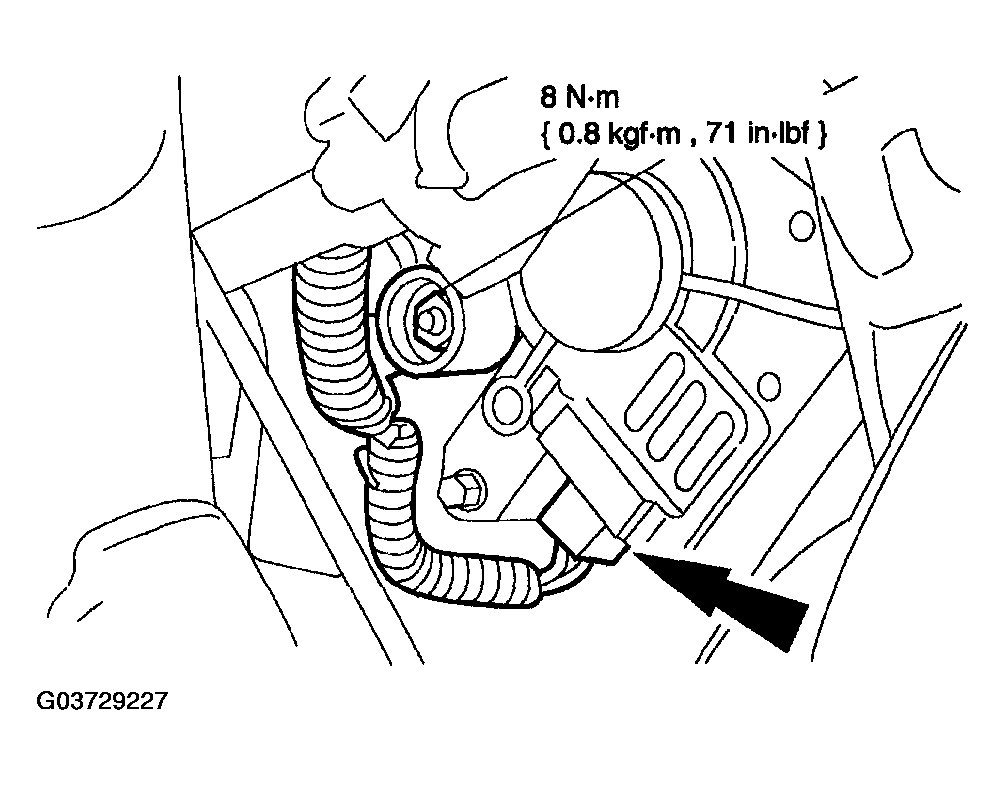

    Fig 2: Removing Nut And Disconnecting Electrical Connectors - With Torque Specification
    G03729227Courtesy of MAZDA MOTORS CORP.
  6. Install in reverse order of removal.
