Upper Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

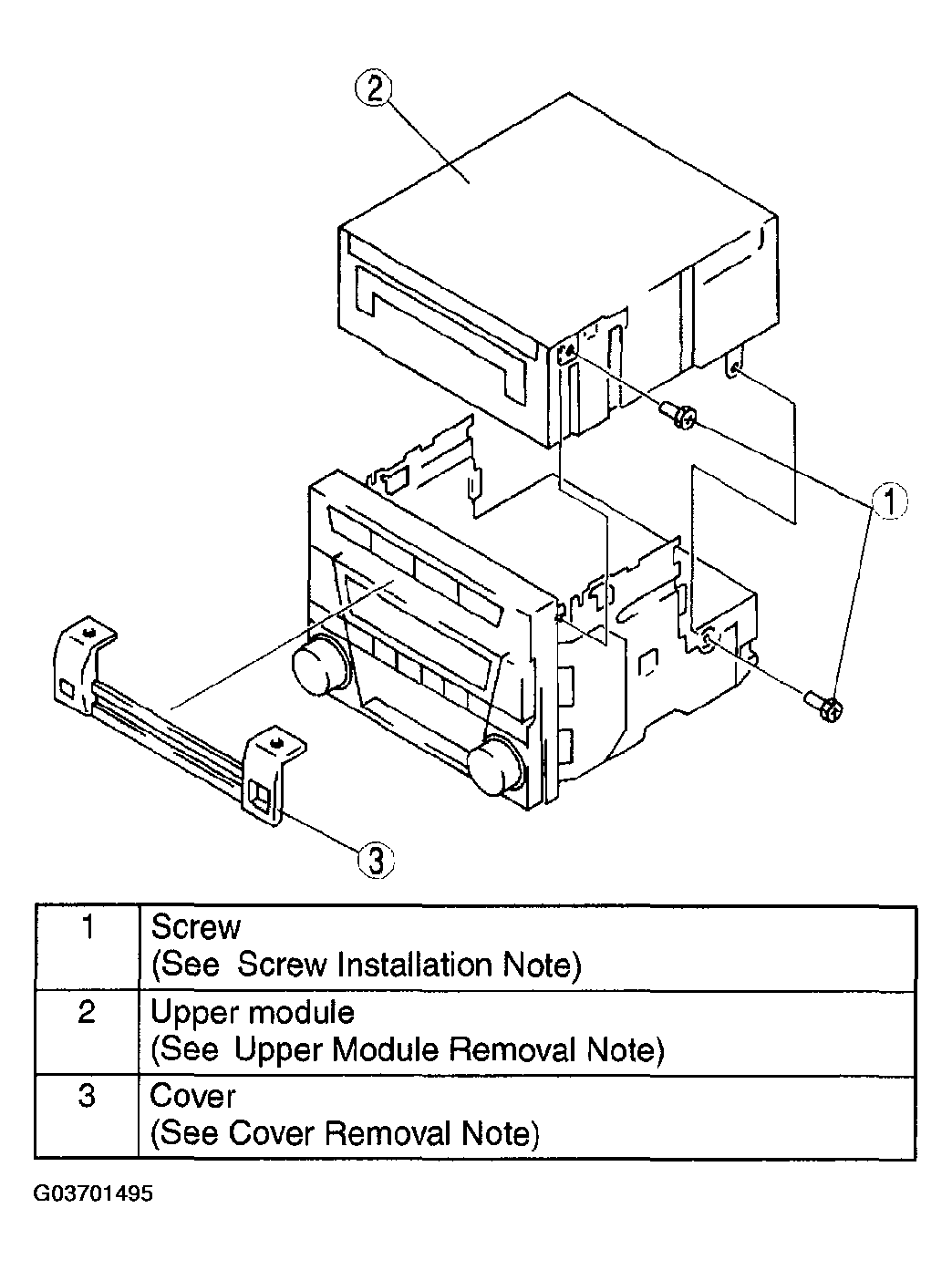

    Fig 1: Removing Upper Module
    G03701495Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
