Upper Module Removal Note

Insert a screwdriver into the hole stamped mark.
To remove upper module, lift it by pushing down the screwdriver's handle.

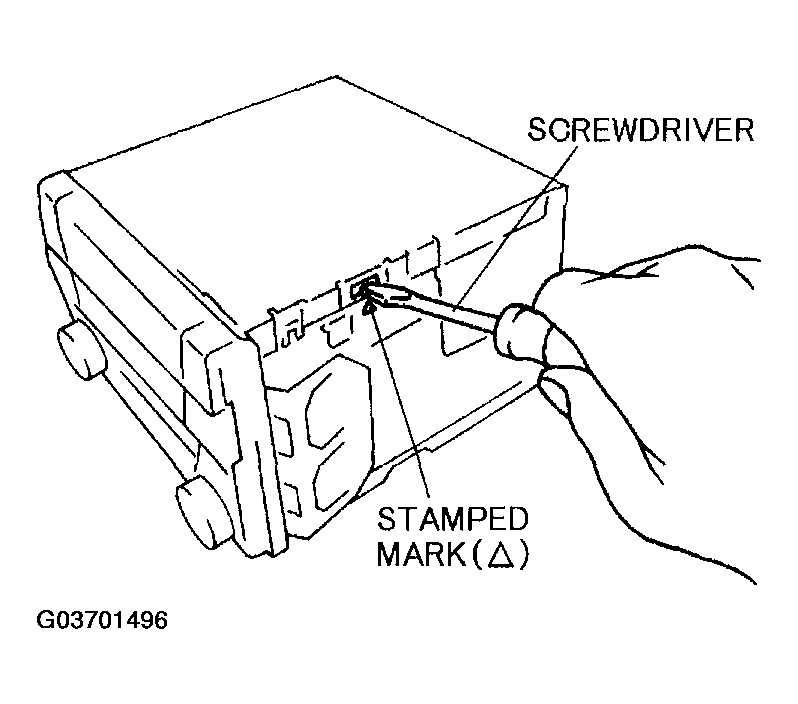

Fig 1: Inserting Screwdriver into Hole Stamped Mark
Courtesy of MAZDA MOTORS CORP.
